Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > DJSF1352-RN DC LCD Digital Energy Meter
US$ 103.7 - 103.7
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
Acrel
Place of Origin:
China
Model Number:
DJSF1352-RN
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
10 days
Related Products
-
DJSF1352-RN DC LCD Digital Energy Monitoring MeterUS$ 103.7 - 103.7MOQ: 1 Piece -
DJSF1352-RN DC LCD Digital Kwh MeterUS$ 103.7 - 103.7MOQ: 1 Piece
-
DC Energy Meter PZ72-DE Connect via Hall Sensor Measure Direct Current ,voltage ,power ,energy ConsumptionUS$ 82.6 - 82.6MOQ: 1 Piece
-
ACREL 300286 PZ72-DE DC Intelligent Digital Power Meter for DC PanelUS$ 82.6 - 82.6MOQ: 1 Piece
-
ACREL 300286 PZ72-DE DC Led Display Digital Power Factor Meter Measure U I P KWH With 2DI/2DOUS$ 82.6 - 82.6MOQ: 1 Piece
Brand Name
Acrel
Place of Origin
China
Model Number
DJSF1352-RN
Phase
Single Phase
Output Voltage
DC 0-1000V
Operating Temperature
-25 °C ~ +55 °C
Dimensions
72mm*93.8mm*71mm
Display Type
Digital Only
Accuracy Class
Class 1
Measuring Energy Range
9999.99
General
DJSF1352-RN rail-mounted DC power meter with double DC input channels, designed for telecommunications base stations, DC charging piles, solar photovoltaic and other applications, this series of meters can measure the voltage, current, power and forward and reverse energy and so on in the DC system.The actual use of the site, you can measure the total power, but also measure the energy within a specified period of time. The test results can be used for local display, but also with industrial control equipment, computers to form a measurement and control system

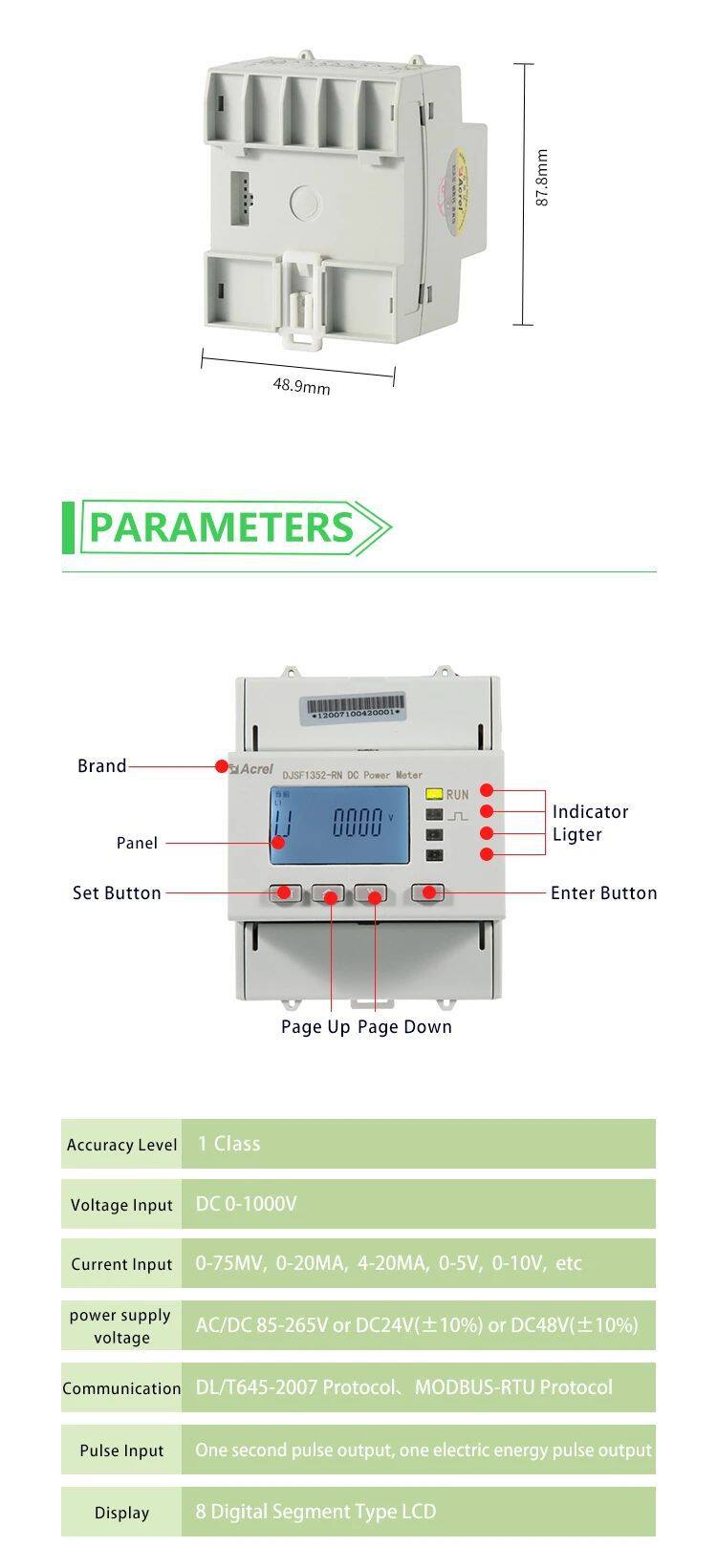

Paremeters
Contact us
Overseas sales engineer: Tim Ma
email:tim.ma@email.acrel.cn
Mob:+86 18761599716(whatsapp/skype/wechat)
Send Inquiry to This Supplier
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer
Year Established
2006
Annual Export Value
US$1.5 Million - US$2.5 Million
Product Certifications
ISO9001
