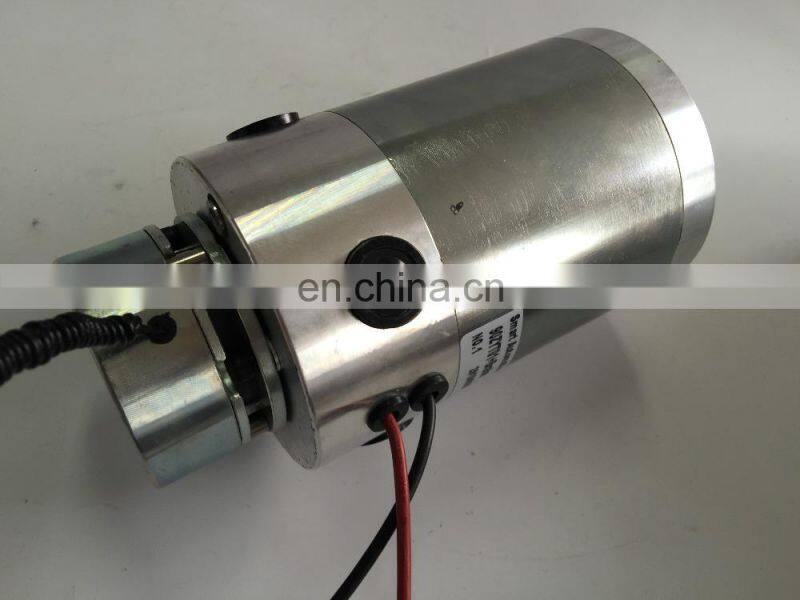

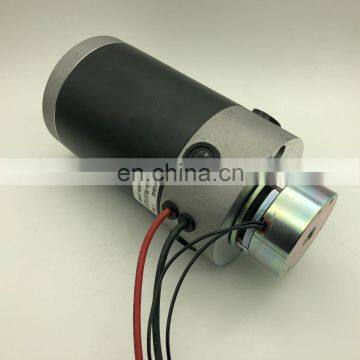

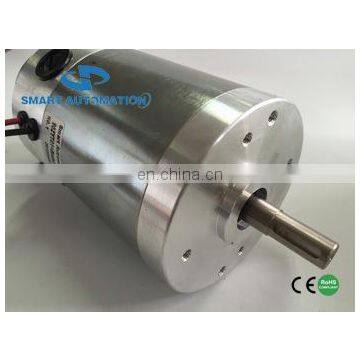

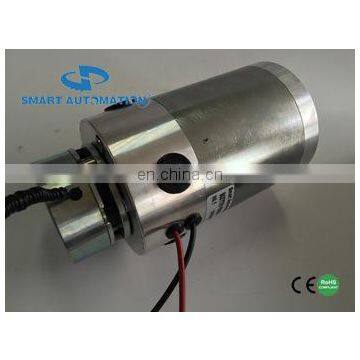

O.D90mm brushed dc motor with electric electromanetic brake, 12v 24v 36v high torque big power 400W 500W
- 10000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
63mm DEF pump air pump Dc Motor made in China, rated 50w 100w high torque high speed
-
63ZYT series IP56 Brushed Dc water proof Motor, 12v 24v waterproof dc motor
-
60JXE450K.76ZYT IP 54 76mm brush dc Planetary gearbox Motor
-
52mm high quality good price 12v 24v dc micro motors
-
Nema 23 Nema 24 square flange Dia.60mm Brush Dc Motor
-
63ZYT02A high torque Brushed dc motor 12v 100w, rated 0.31Nm 3000rpm
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 90zyt | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | 1-2Nm | |
| Usage | Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Continuous Current(A) | customed | Speed(RPM) | 1500rpm~8000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY
90ZYT01 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.1 | 155 | 461 |
24V 3000RPM | 1.1 | 155 | 346 |
24V 2000RPM | 1.1 | 155 | 230 |
24V 1500RPM | 1.1 | 155 | 173 |
12V 4000RPM | 1.1 | 155 | 461 |
12V 3000RPM | 1.1 | 155 | 346 |
12V 2000RPM | 1.1 | 155 | 230 |
12V 1500RPM | 1.1 | 155 | 173 |
90ZYT02 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.5 | 199 | 628 |
24V 3000RPM | 1.5 | 199 | 471 |
24V 2000RPM | 1.5 | 199 | 314 |
24V 1500RPM | 1.5 | 199 | 236 |
12V 4000RPM | 1.5 | 199 | 628 |
12V 3000RPM | 1.5 | 199 | 471 |
12V 2000RPM | 1.5 | 199 | 314 |
12V 1500RPM | 1.5 | 199 | 236 |

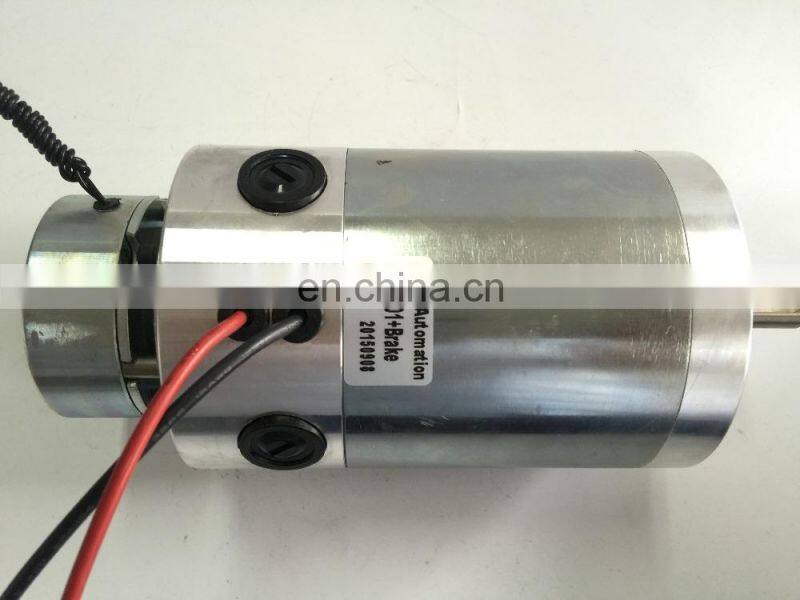

MOTORS WITH BRAKE
main applications of dc motor |
|
| |
|
|
|
|
Industry | Content | Industry | Content |
Medical equipment | Hand-held surgical instruments | Aerospace Industry | Electric seat adjustment post |
|
| ||
Surgical robot | Flight recorders | ||
|
| ||
Micro-injection pump; Peristaltic pump | Autopilot | ||
|
| ||
Dialyzer | Air-conditioning system | ||
|
| ||
Automatic dosing system | Space Robot | ||
|
| ||
Radiation therapy equipment |
| ||
|
| ||
Diagnostic equipment and testing instruments |
| ||
Robot | Humanoid robot | Auto industry | Adjustable shock absorbers |
|
| ||
Service robots | Emission abatement system | ||
|
| ||
Teaching Robots | Electronic steering | ||
|
| ||
| Electronic tachometer
| ||
Industrial Automation | Precision Positioning System | Communications Equipment | Antenna System |
|
| ||
Handling System | Copier / printer / plotter | ||
|
| ||
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
