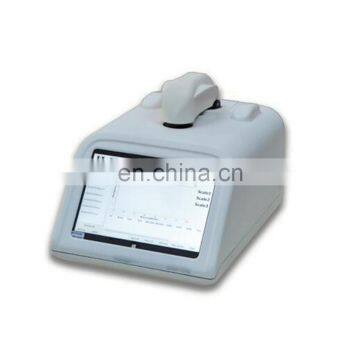

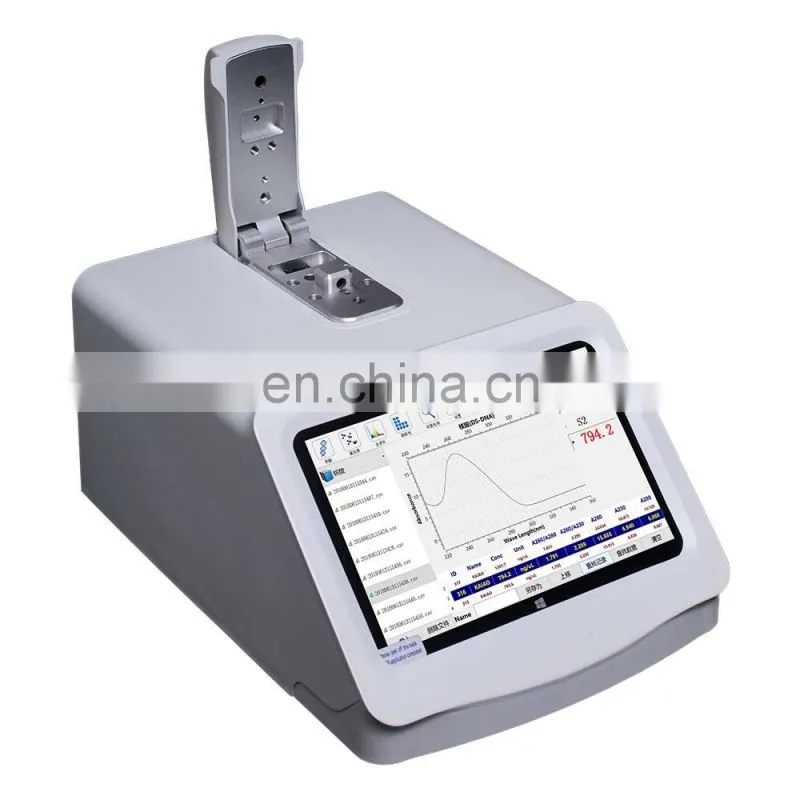

MD2000 series micro spectrophotometer
- 500 Piece / Pieces per Month
- Shanghai
- T/T Credit Card
-
DW-K2800 micro volume spectrophotometer
-
DW-520A ftir spectrometer price
-
DW-FTIR-510A fourier transform infrared spectrometer - ftir spectrophotometer price
-
DW-FTIR-530A ft-ir spectrometer price
-
Drawell Fluorescence Spectrophotometer Price DW-F97XP
-
F96PRO Drawell fluorometer price of fluorescence spectrophotometer model
Product Details
Brand Name: | DRAWELL | Place of Origin: | Shanghai, China | Model Number: | DW-MD2000 series |
Size: | 33.5*45*36.5 | Weight: | 6.7kg | Measurement Range: | 190 ~ 850nm |
Wavelength Range: | 190 ~ 850nm | Focal Length: | ± 1nm |
Product Description
MD2000D Micro-spectrophotometer
optical path: 1mm, 0.04mm (optical path automatically
converted)
Sample volume requirements: 0.3 ~ 2μL
Light Source: Long-life xenon flash pulse
Detector: 2048 CCD
Luminance range: 190nm-1100nm
Wavelength range: 190 ~ 850nm
Wavelength accuracy: ± 1nm
Wavelength resolution: 2 nm (FWHM at Hg 546 nm)
Absorbance accuracy: 0.002 Abs
Absorbance accuracy: 1% (0.76 absorbance at 350 nm)
Absorbance range: 0-500 Abs
Nucleic acid measurement range: 2 ~ 19000ng / μL
(DS-DNA)
Protein measurement range: 0.1 ~ 400mg / mL (BSA)
Sample measurement time: less than 5s

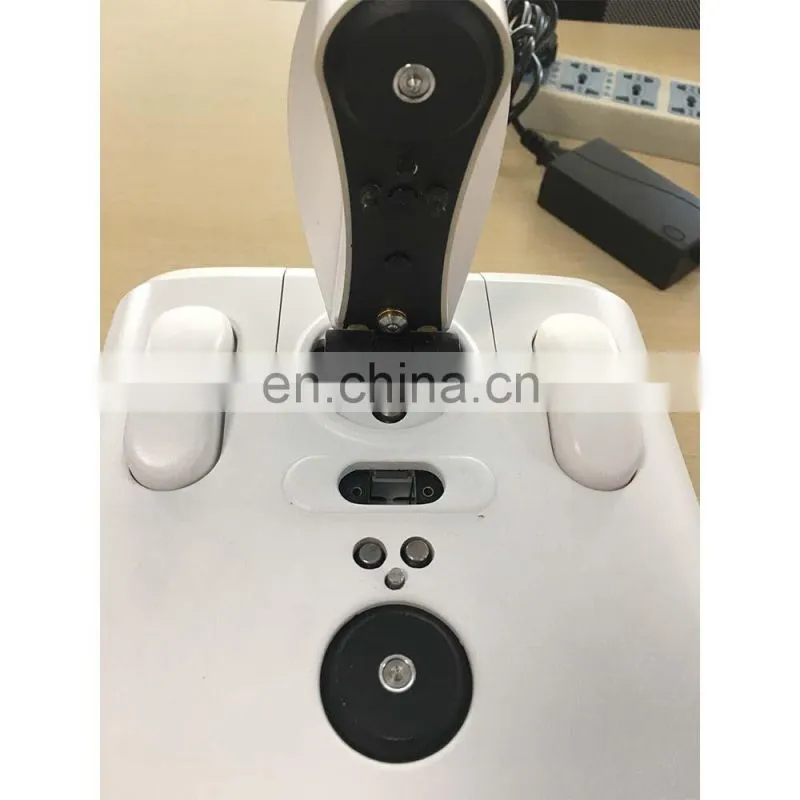

Sample base material: stainless steel and quartz fiber
operating system: built-in operating system, no external
computer
hard drive test results
USB output, built-in WiFi, wireless test results can be printed

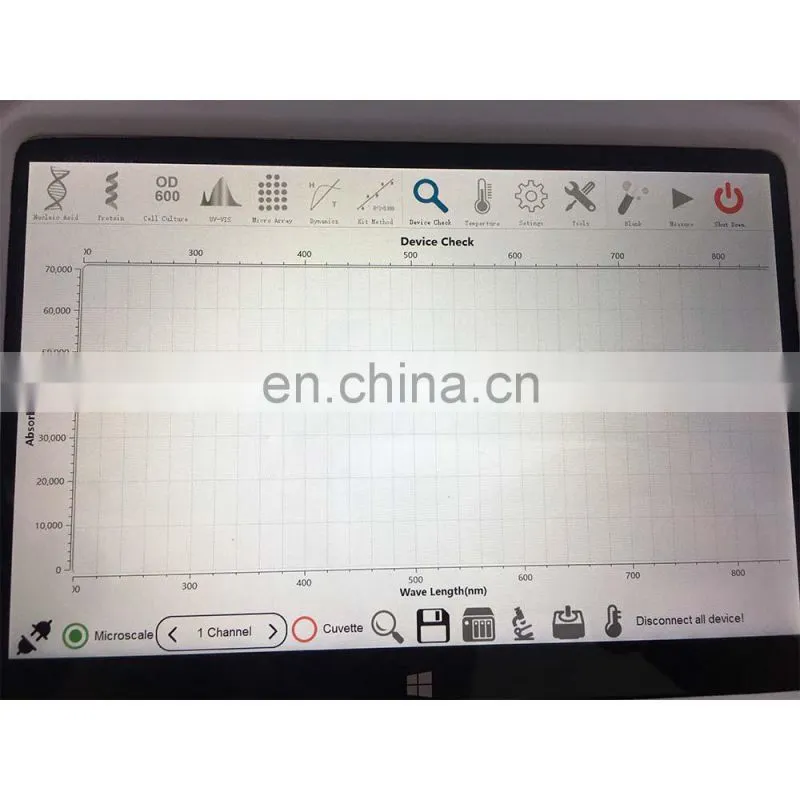

Display: LCD touch screen display
Instrument Features
Small sample size, the min volume only 0.3μL
More stable, higher repeatability, a wider range of concentration
detection!
Sample without dilution, measurable sample concentration range is
200 times the conventional UV-visible spectrophotometer!
Can detect higher concentration range, without dilution, without
baseline calibration!
Without preheating, you can always test!
Built-in operating system, no external computer!
Comes with USB port can be connected to multiple USB devices!
All data is permanently saved to facilitate the output of data statistics,
software is easy to grasp!
MD2000C Micro-spectrophotometer
optical path: 1mm, 0.04mm (optical path automatically
converted)
Sample volume requirements: 0.3 ~ 2μL
Light Source: Long-life xenon flash pulse
Detector: 2048 CCD
Luminosity range: 190-1100nm
Wavelength range: 190 ~ 850nm
Wavelength accuracy: ± 1nm
Wavelength resolution: 2 nm (FWHM at Hg 546 nm)
Absorbance accuracy: 0.002 Abs
Absorbance accuracy: 1% (0.76 absorbance at 350nm)
Absorbance range: 0-500 Abs
Nucleic acid measurement range: 0.4 ~ 19000ng / μL
(DS-DNA)
Protein measurement range: 0.01 ~ 400mg / mL (BSA)
Detection mode: micro-detection platform and micro-cuvette
two detection modes
Cuvettes specifications (optical path): 1mm, 2mm, 5mm,
10mm
cuvette mixing system: bring mixing mixing system, the
sample concentration is more uniform
Sample measurement time: less than 5 s
Sample base material: stainless steel and quartz fiber
operating system; built-in operating system, no external
computer
Hard disk save the test results, you can view and save the
test results at any time
USB output, built-in Wifi, wireless test results can be printed
Display: LCD touch screen display
kinetic test
Height>5mm
Instrument Features
With the traditional cuvette detection and trace detection of two
detection modes
Comes with mixing system, so that the sample concentration is more
uniform
Small amount of sample, the minimum measurement volume only
0.3μL
More stable, higher repeatability, a wider range of concentration
detection!
Sample without dilution, measurable sample concentration range is
200 times the conventional UV-visible spectrophotometer!
Can detect higher concentration range, without dilution, without
baseline calibration!
Without preheating, you can always test!
Built-in operating system, no external computer!
Comes with USB port can be connected to multiple USB devices!
All data is permanently saved to facilitate the output of data statistics,
software is easy to grasp!
MD2000H Micro-spectrophotometer
Light path: 1mm, 0.2mm, 0.04mm (optical path
automatically converted)
Sample volume requirements: 0.3 ~ 2μL
Light source: Long life pulse xenon lamp
Detector: 2048 CCD
Luminosity range: 190-1100nm
Wavelength range: 190 ~ 850nm
Nucleic acid: 0.4 to 19000 ng / μL (DS-DNA)
Protein measurement range: 0.01 ~ 400mg / mL (BSA)
Wavelength accuracy: ± 1nm
Wavelength resolution: 2 nm (FWHM at Hg 546 nm)
Wavelength reproducibility: <± 0.002nm
Absorbance accuracy: 1% (0.76 absorbance at 350 nm)
Absorbance range: 0-500 Abs
Detection mode: micro-detection platform and micro-cuvette
two detection modes
Cuvettes optical path: 1mm, 2mm, 5mm, 10mm
Cuvette sample volume: height ≥ 5mm
Cuvettes type: traceable cuvette
Mixing System: Mixing and mixing system bring the sample
concentration more evenly
Operating System: Built-in operating system, no external
computer
Sample base material: stainless steel and quartz fiber
Sample measurement time: less than 5 seconds
Hard disk save the test results, you can view and save the
test results at any time
USB output, built-in WiFi, wireless test results can be
printed
Display: LCD touch screen display
kinetic test
Instrument Features
With the traditional cuvette detection and trace detection of two
detection modes
Thermostatic system: adjustable at room temperature ~ 42 ℃
constant temperature
Comes with mixing system, so that the sample concentration is more
uniform
Small amount of sample, the minimum measurement volume only
0.3μL
More stable, higher repeatability, a wider range of concentration
detection!
Sample without dilution, measurable sample concentration range is
200 times the conventional UV-visible spectrophotometer!
Can detect higher concentration range, without dilution, without
baseline calibration!
Without preheating, you can always test!
Built-in operating system, no external computer!
Comes with USB port can be connected to multiple USB devices!
All data is permanently saved to facilitate the output of data statistics,
software is easy to grasp!
MD2000T Micro-spectrophotometer
Light path: 1mm, 0.2mm, 0.04mm (optical path
automatically converted)
Sample volume requirements: 0.3 ~ 2μL
Light source: Xenon lamp
Detector: 2048 pixel CCD array
Luminosity range: 190-1100nm
Wavelength range: 190 ~ 850nm
Nucleic acid measurement range: 0.4 ~ 19000ng / μLl
(DS-DNA)
Protein measurement range: 0.01 ~ 400mg / mL (BSA)
Wavelength accuracy: ± 1nm
Wavelength resolution: 2 nm (FWHM at Hg 546 nm)
Wavelength reproducibility: <± 0.002nm
Absorbance accuracy: 1% (0.76 absorbance at 350 nm)
Absorbance range:0-500 Abs
Cuvettes specifications (optical path): 1mm, 2mm, 5mm,
10mm
Cuvette sample volume: height ≥ 5mm
Cuvettes type: traceable cuvette
mixing system: bring mixing mixing system, the sample
concentration is more uniform
temperature control: 4 ℃ ~ 42 ℃ constant temperature
adjustable at any point
Operating System: Built-in operating system, no external
computer
Sample base material: stainless steel and quartz fiber
Sample measurement time: less than 5 s
USB output, built-in Wi-Fi, wireless print test results
Hard disk save the test results, check and save the test
results at any time
Monitor: LCD touch screen display
kinetic test
Instrument Features
With the traditional cuvette detection and trace detection of two
detection modes
Thermostatic system: 4 ~ 42℃ adjustable at any point thermostat
Comes with mixing system, so that the sample concentration is more
uniform
Small amount of sample, the minimum measurement volume only
0.3μL
More stable, higher repeatability, a wider range of concentration
detection!
Sample without dilution, measurable sample concentration range is
200 times the conventional UV-visible spectrophotometer!
Can detect higher concentration range, without dilution, without
baseline calibration!
Without preheating, you can always test!
Built-in operating system, no external computer!
Comes with USB port can be connected to multiple USB devices!
Data is permanently saved to facilitate the output of data statistics, the
software easy to master!
