Home > Products > Spectrophotometer > F93 Fluorescence Spectrophotometer Device

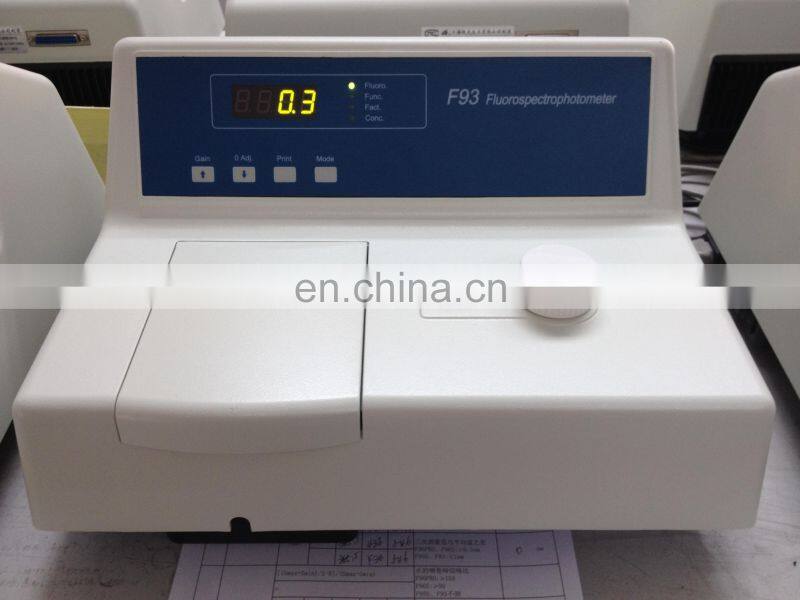

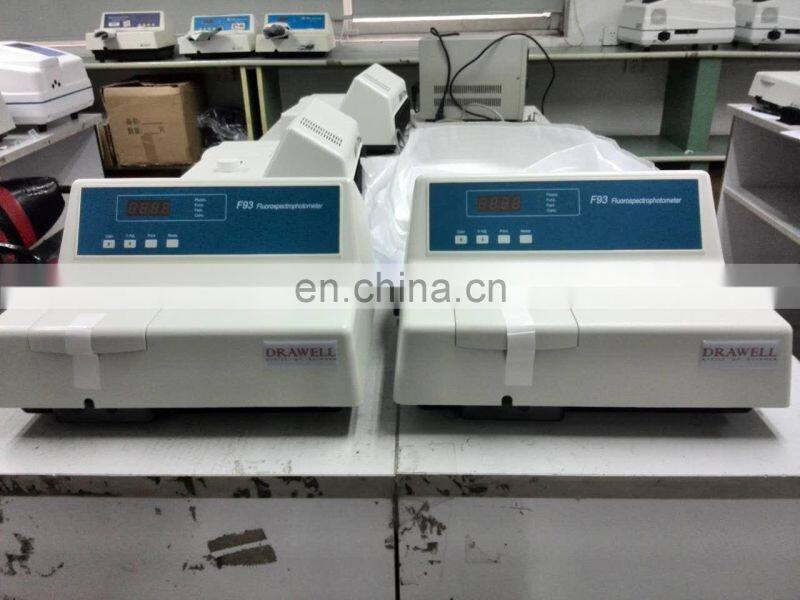

F93 Fluorescence Spectrophotometer Device

Name: F93 Fluorescence Spectrophotometer Device
Brand: Drawell
Availability: InStock

FOB Price

USD $1,690 - $1,800 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Drawell	Place of Origin:	Chongqing, China	Model Number:	DW-F93
Size:	454228cm	Weight:	9 kgs	Wavelength Range:	365nm,405nm,470nm, 365nm,405nm,470nm
Focal Length:	±2nm

Product Description

F93 Fluorescence Spectrophotometer

Features

1. 1200 line diffraction grating emission monochromator . Its large aperture and non-spherical reflecting mirrors produces extra high sensitivity.

2. EX light use LED,match with the central wavelength of 365nm,420nm,475nm,525nm narrow banding-ultra low back grounding precision filters to consist 4 set of EX wavelength replacing system. Carry on the maintenance expediently & can satisfy more choices and demand.

3. The central wavelength of 365nm,420nm,475nm,525nm narrow banding-ultra low back grounding precision filters with low fluorescence background. Its performance is better than glass filter.

4. LED is a cold-light source with longevity, lower background & reliability, prevent from thermo-pollution.

5. Automatic zero adjustment and automatic background subtraction, Eight stage sensitivity adjustment, Real time fluorescence reading display and concentration print out, Extra wide dynamic range of fluorescence reading, accurate measurement of minute changes in samples.

6. Quality fine, less weight & measure, test simply, particularly suitable for education & laboratory.

Specifications

1.	Light source:	LED
2.	Exciting optical filters:	Interference optical filter (10nm bandwidth)
3.	Central wavelength:	365nm
4.	Optional central wavelength:	365nm,405nm,470nm,515nm (F93A)
		The wavelength of exciting optical filter can be selected within 360-600nm
5.	Emission monochromator:	360-650nm (C-T diffraction grating)
6.	Wavelength accuracy:	±2nm
7.	Wavelength repeatability :	≤1nm
8.	Sensitivity:	1×10^-9 g/ml (Standard aqua of the sulfuric acid Quinine, 12nm bandwidth)
9.	Linearity deviation:	≤±3.0%
10.	Variation of power source:	220V±22V 50Hz±1Hz
11.	Interface:	RS232 serial port
12.	Printer:	serial printer/Jet printer(for PC)

Standard accessories
Power cord	1 pc
Fuse(1A)	2 pcs
Fuse(5A)	2 pcs
Quartz fluorescence cuvette 10mm	2 pcs

Optional accessories
Cuvette, special for high concentration samples
360~650nm interference optical filter(φ25mm)
e.g.: F93A: 365nm,405nm,470nm,515nm
Quartz fluorescence cuvette10mm
Data processing software
Printer cable
RS-232C serial port cable
