Auto Repair Injector Calibration Machine Common Rail Injector Test Bench CR318 With Double Oil Road Used

FOB Price

USD $4,000 - $5,500 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Qingdao Port
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	Dongtai	Place of Origin:	Shandong, China	Model Number:	CR318
Power:	Electronic

Product Description

CR318 Diesel Common Rail Injector and HEUI Test Bench

CR318 common rail injector test bench, use Germany import the flow sensor for the measurement means, it can test common rail injector and common rail pump, it can add HEUI function, can test HEUI, and with Bosch IQA Coding function, IQA self-definition and injection adjustment according to the real working condition instead of repairing the complete injector.

The device uses high-power inverter and motor, heavy plate casting table for different power and torque of the common rail pump test. It can test Bosch, Denso, Delphi, Siemens, CAT and other brands of electronic control fuel injector, oil flow measurement using imported flow sensor. Measurement parameters, rail pressure, speed, temperature, fuel, computer display. .

The test bench has independent diesel active oil supply system, the pressure size can be adjusted with different adapters, can increase HEUI test.

Performance Introduction:

1.Bosch IQA coding

2.IQA self-definition and injection adjustment according to the real working condition instead of repairing the complete injector.

3.Oil temperature not higher than 42 degree under 24 hours non-stop running

4.High reliability with zero failure under the whole-year normal operation

5.Very good injection testing accuracy

6.Very good repeated testing consistency

7.Very low operation noise

8.Inbuilt with reliable actuated pump

9.Oil pressure flexible adjustment through automatic or manual ways

10.Solenoid pull-up time testing

11.Dynamic condition internal leakage testing

Optional function:

1.Injector responding time testing

2.Injector resistance & inductance testing

3.Injector AHE & life testing

4.The rail pressure can reach to 2400bar

5.Oil flow-back self testing

6.Oil actuating response time testing

7.Fuel injection response time testing

8.Solenoid resistance & inductance testing

Technical Parameters

Applicable for HEUI injector, All CR injectors ,Piezo injector ,All HEUI injector

--BOSCH CP3.3 common rail pump

--BOSCH original common rail +DRV

--Common rail system motor Power 5.5KW

--HEUI drive power:3KW

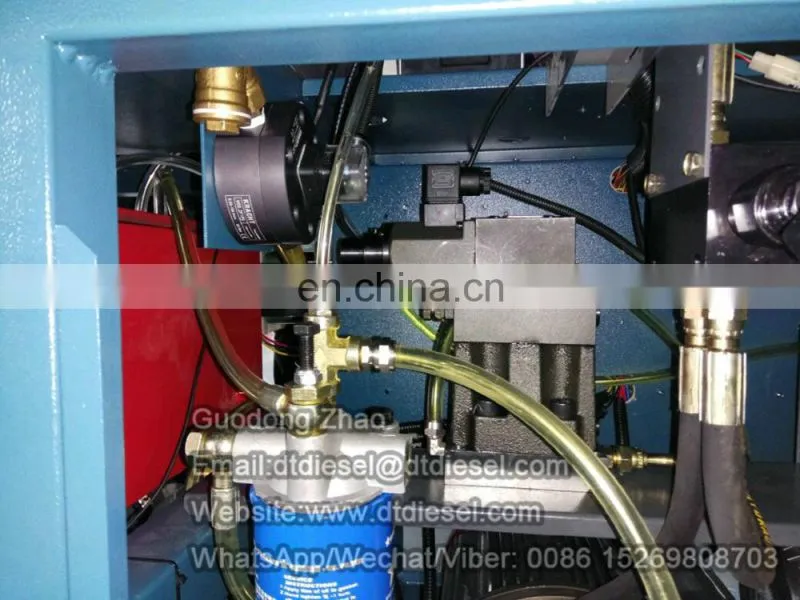

--Oil system pressure automatic adjustment system

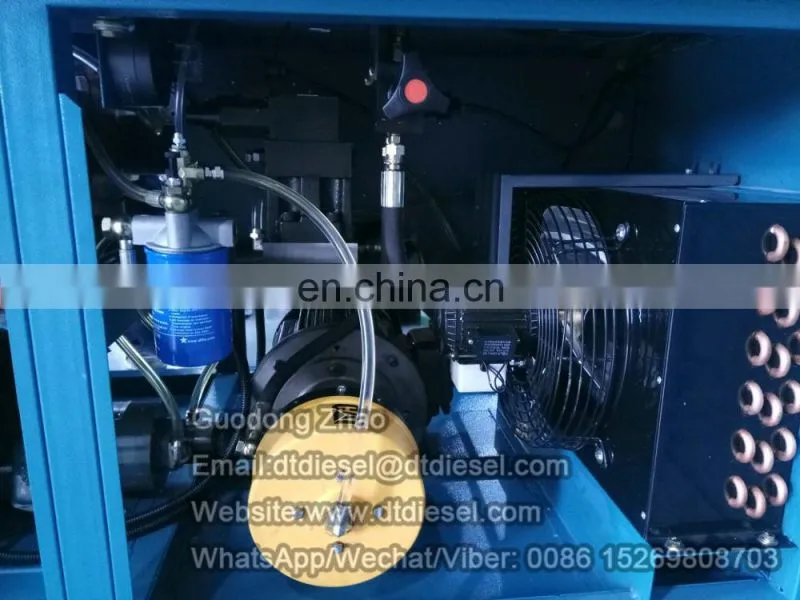

--Diesel tank (heating, cooling, liquid level, temperature sensor, temperature security)

--Oil tank (heating, cooling, liquid level, temperature sensor)

--Industrial PC (with touch screen, built-in WIFI remote training, service, upgrade)

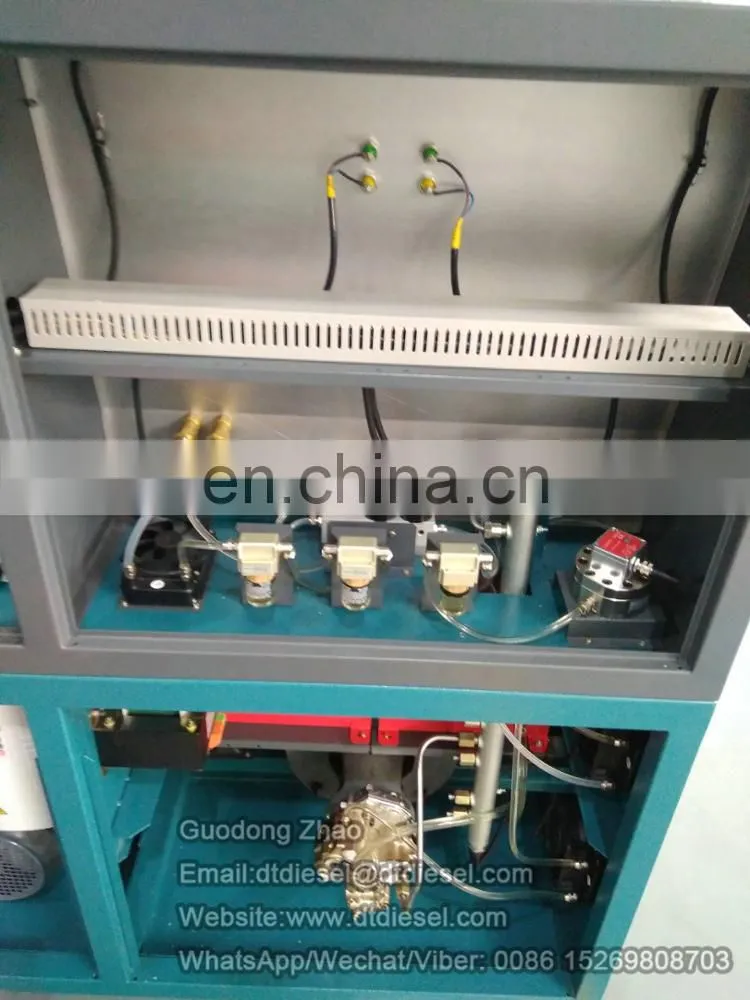

--Flow meter (German ZDM) injector flow sensor

--Flow meter (German KRACHT) oil flow sensor

--Drive circuit board(solenoid valve electric parameters: to enhance the voltage, current, time, pull in voltage, current, time, keep voltage, current, time, according to the setting of the parameters of production factory

Product Name	Middle pressure HEUI & High pressure CR injector integrated Test Bench
Power Supply	220VAC/380VAC
Phase	Single/Three phase
Frequency	50HZ/60HZ
Electric Current	30A(Max)
Motor Power	5.5/2.2Kw
Temperature Control	Heat/Force-air cooling
Temperature Setting	40°C
Ambient Temperature	<35 °C
Maximum Rail Pressure	180-240Mpa
Maximum Oil Pressure	25Mpa
Control Circuit Voltage	DC24V/DC12V
ECU Internal Pressure	0-200VDC(Max)
Fuel Tank Volume	19L
Noise level	<85dB
Weight	350kg
Net Dimension	(HWL) 14185120CM
Packing Dimension	(HWL) 15095130CM
