The TRL DCP (Dynamic cone penetrometer) is an instrument designed for the rapid insitu measurement of the structural properties of existing road pavements structured with unbound materials.

Model 16-T0012/C FEATURES:
• Portable, hand-operated equipment.
• The TRL DCP is an instrument designed for the rapid insitu measurement of the structural properties of existing road pavements constructed with unbound materials.
• A typical test takes only a few minutes and therefore the instrument provides a very effi cient method of obtaining information that would normally require the digging of test-pits.
• The results can be interpreted and compared with CBR specifi cations for pavement design
• One year warrantee against any manufacturing defects.

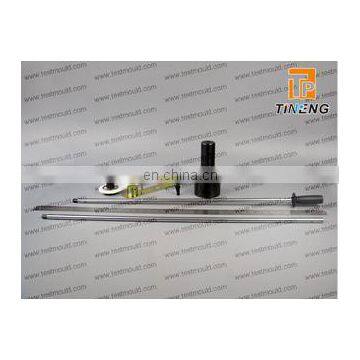

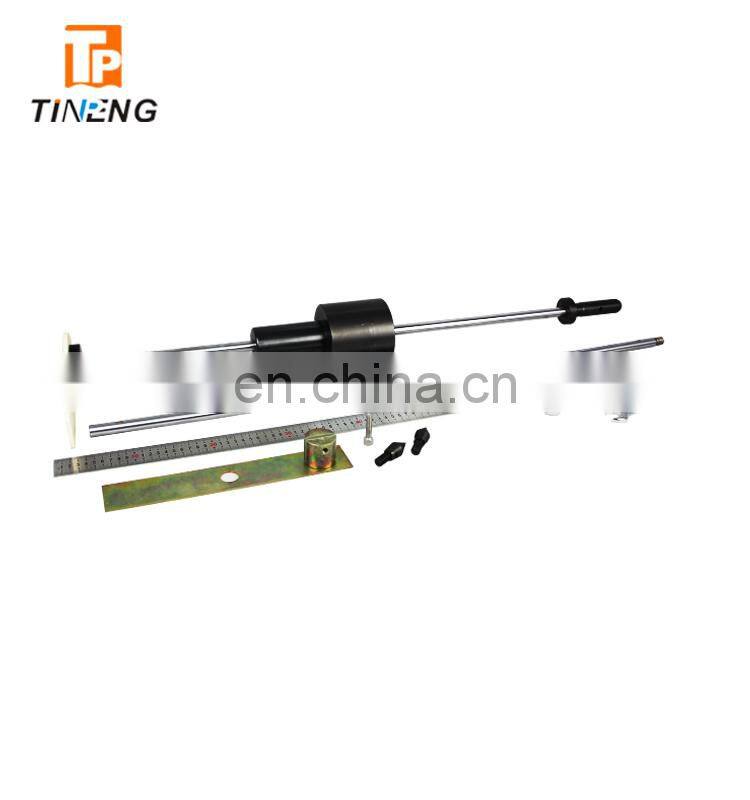

COMPRISES:

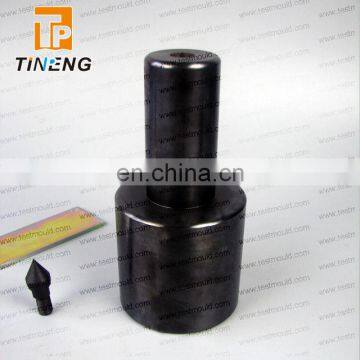

16-T0012/C1 Sliding hammer (steel made) weighing 8 kg
16-T0012/C2 Impact anvil driving rod and clip, falling 575 mm
16-T0012/C3 Steel rod, diameter 16 mm, up to a depth of 800 mm below the surface
16-T0012/C4 N° 3 threaded end cones in tempered steel,20 mm diameter, 60° cone angle
16-T0012/C5 Bearing plate and measuring rod with adjustable scale (graduated in mm)
16-T0012/C6 Wooden carrying case
Dimensions: 1080x310x150mm
Weight: 22kgs
ACCESSORIES AND SPARE PARTS: (need to be ordered seperately)
16-T0012/A7 Extension rods: 400 mm, dia. 16mm
