Product Details
Brand Name: | IWIN | Model Number: | IWIN-LOS1 | Power: | Electronic |
Product Description
los angeles abrasion testing machine aggregates abrasio test

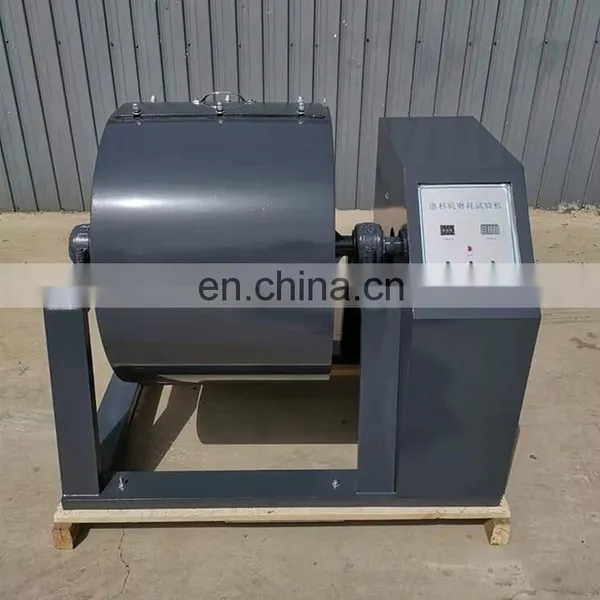

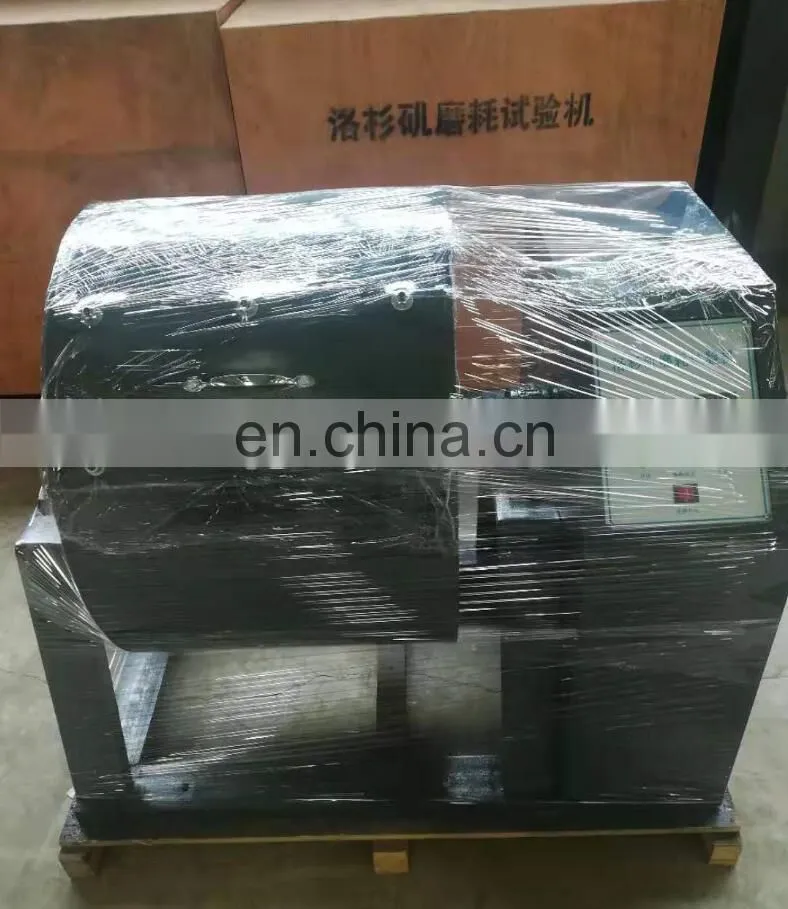

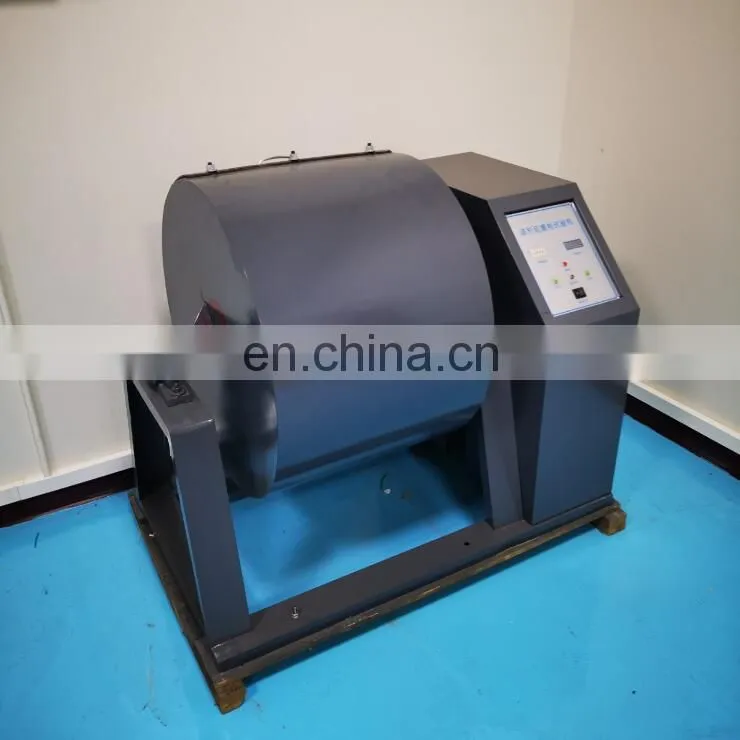

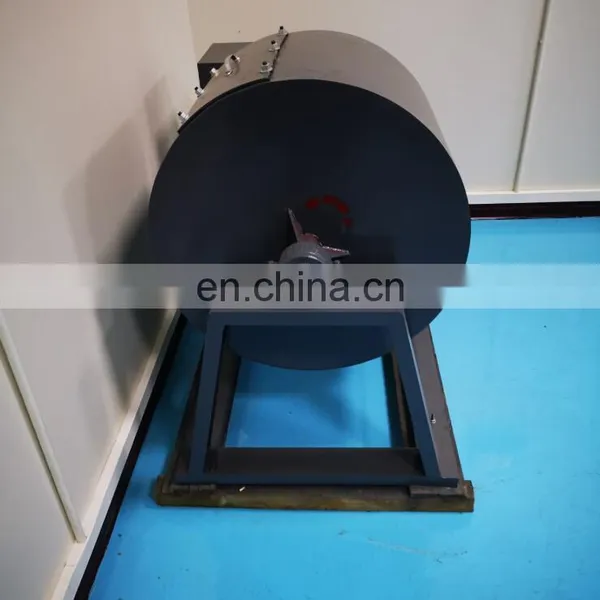

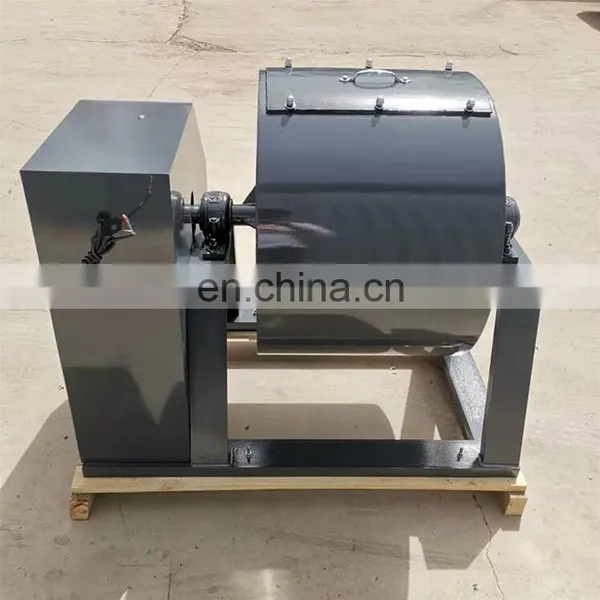

The Los Angeles Abrasion Machine is used for determination of the aggregates resistance to fragmentation. The machine consists of an electronic control unit and a rolled steel drum having an inside diameter of 711 mm and internal length of 508 mm. The drum is rotated at a speed of 30-33 r.p.m. The machine is equipped with an automatic counter, when the preset revolution count is reached, the machine will stop automatically. The drum is equipped with an interlock device which allows the operator to lock the drum into position for easy loading/unloading of the sample.
No. | Item | Specifications |
1 | Charging Barrel Inner Diameter | 711±2mm |
2 | Charging Barrel Inner Length | 580±2mm |
3 | Barrel Wall Thickness | 10mm |
4 | Rotating speed | 30 ~ 33r/min |

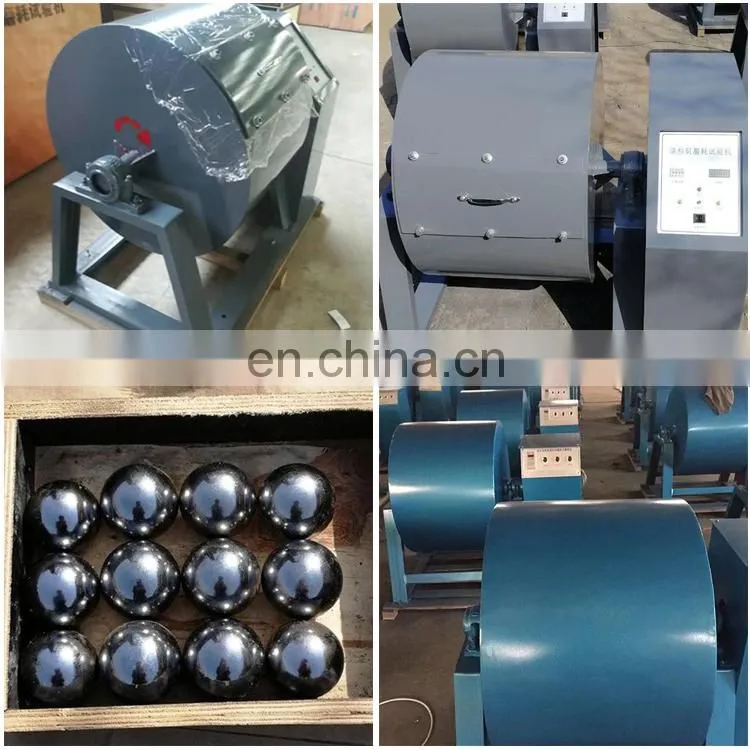

5 | Steel ball | Φ46mm—400g: 7 Nos |
Φ47.625mm—440g: 5 Nos | ||
6 | Total weight of steel ball | 5000 ± 50g |
7 | Counter | Maximum 6 bits adjustable |
8 | Counter pre-set number | 1-9999/times |
9 | Motor | 380VAC, 50Hz, 1.1kW |
10 | Dimensions | 900*1000*1100mm |
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
