China Manufacturer High Quality Portable Power Cable Fault locator

General information:

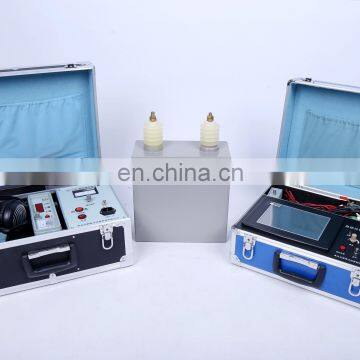

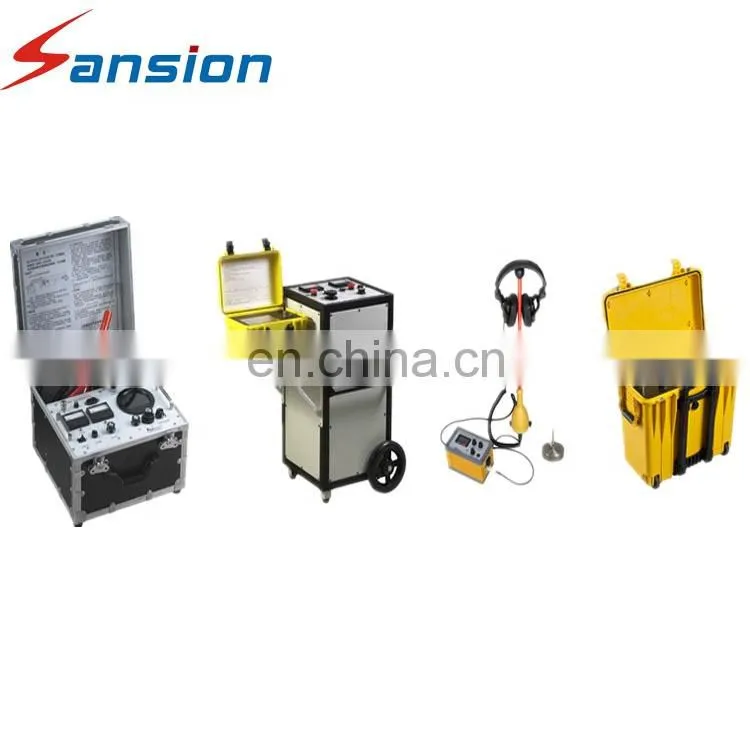

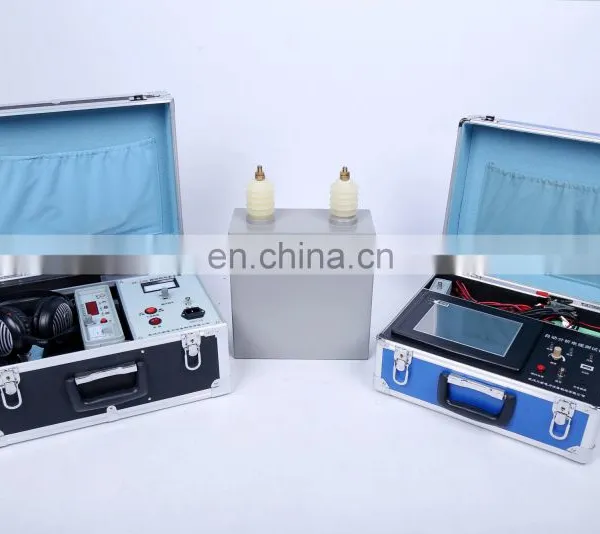

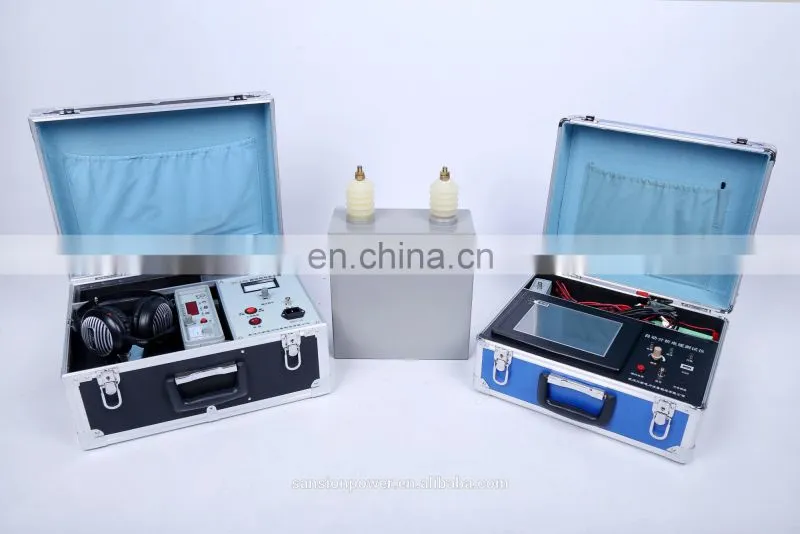

The system includes five parts. They are, respectively,HV bridge locator, SXTDR-200 cable fault locator, SX-30/4 cable fault location power, SXDL-1B pin-pointing instrument, and SX-60kV/500mA cable fault burning power. Each part can be separately used.

Features:

This system includes TDR method and Murry bridge method. With this system, we can locate almost all types of cable faults effectively and conveniently. SXDL-400A can be used to pre-locate high resistance based on Murry method conveniently. SXDL-TDR-200 can be used to pre-locate broken and high resistance fault based on TDR method. SXDL-30/4 and HDL-1B can be used to pin-point the fault. ZGH-60kV/500mA can be used to burn down any kind of high resistance in short time.

Specifications:

    SXDL--400A HV bridge locator

• Output maximum voltage:  5kV and 15kV (alternative)
• Location error   :  ±(0.2%·L+1) m
• Weight  :  10kg
• Work power:    50Hz AC 220V±15%

SXDL-TDR-200 Cable fault locator

• Low voltage pulse output voltage: 60V
• Pulse width: 40ns 100ns 200ns 500ns 1µs 2µs 5µs 10µs (options)
• Fault location error: ±0.4m (V=160m/µs)
• Maximum length measurement for cable: 50km (V=160m/µs)
• Operating power: Input 200~240V (50/60Hz), DC9V output

SXDL-TDR-200 Cable fault locator

• Low voltage pulse output voltage: 60V
• Pulse width: 40ns 100ns 200ns 500ns 1µs 2µs 5µs 10µs (options)
• Fault location error: ±0.4m (V=160m/µs)
• Maximum length measurement for cable: 50km (V=160m/µs)
• Operating power: Input 200~240V (50/60Hz), DC9V output

SXDL--30/4 cable fault location power

• Output voltage range: 0~15kV continuous and being adjusted
• Impact energy :  1800J
• Pulse capacity:  4uF
• Work power:   50Hz AC 220V±15%

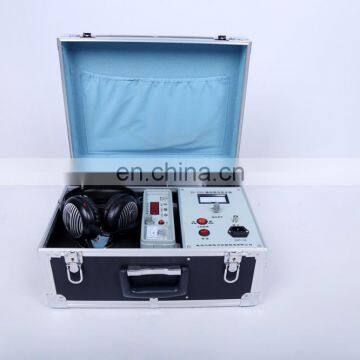

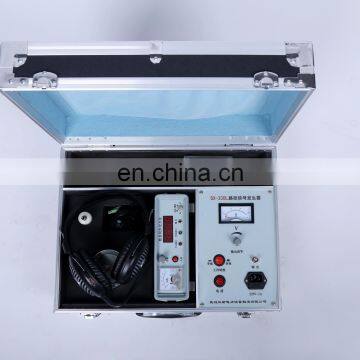

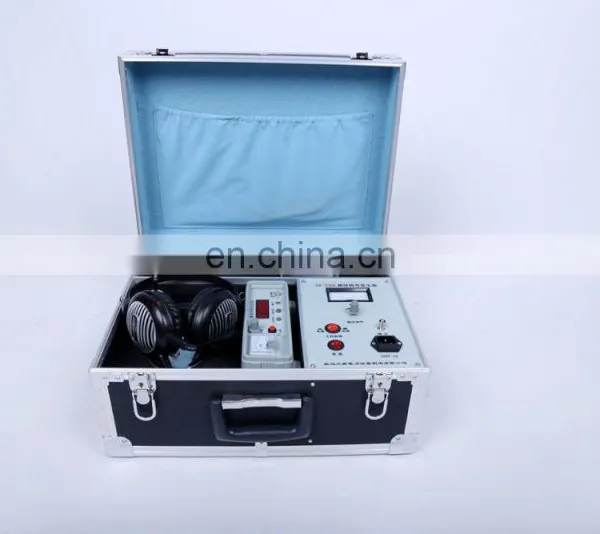

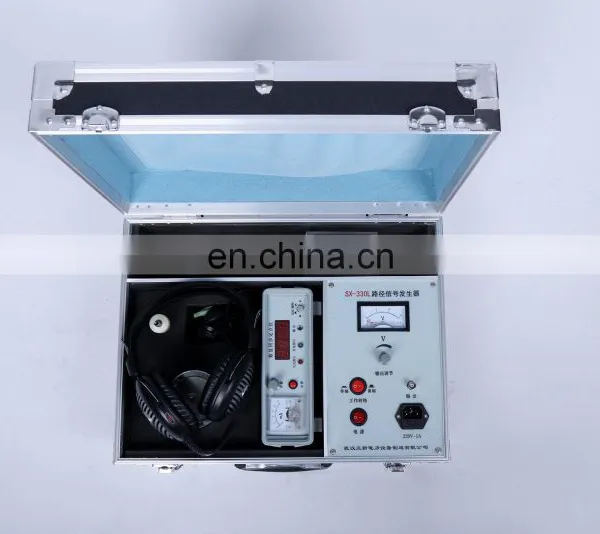

SXDL--1B pin-pointing instrument

• Pin-point error with sound wave and electromagnetic method: 10% depth of the cable.
• Location error of path: 10% depth of cable.
• Operating power: 7.2V/4.4Ah Lithium battery operated, when full can work continuously for 10hours.
• Weight: 1kg
• Dimension: 21cm×9.6cm×10cm

SXDL--60kV/500mA cable fault burning power

• Voltage output:   0~60kV
• Current output:   0~500mA
• Maximal burning power: 1000W
