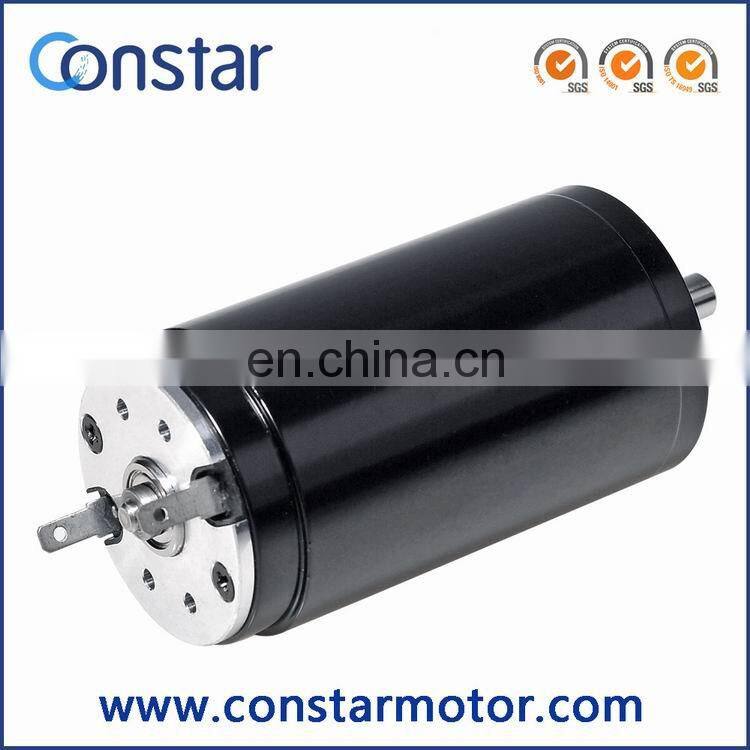

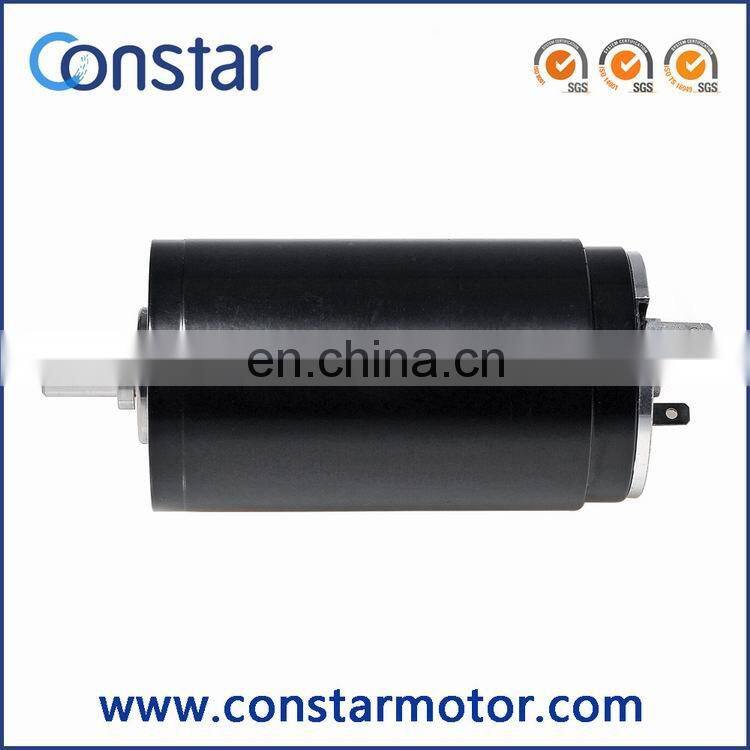

High power 24v corelss dc motor for cordless drill
USD $7 - $50
/ Piece
1 Piece(Min.Order)
- 100000 Piece / Pieces per Month
- Shenzhen or HK
- T/T Credit Card
You May Like
-
6V 12V watch winder motor electric air compressor motor
-
High Quality 16mm Electric Car Motor Micro Corelss 12v Dc Motor
-
Constar Wholesale Micro 12v DC Motor High Torque 24 Volt DC Motor
-
Shenzhen factory brush 12v dc motor 2000rpm high quality 24v 5000rpm motor
-
New Design 32MM 12v Slotless Brushless DC Flat Motor
-
Custom Electric Small Big High Low Torque Speed Price 3.7v 4.5v 9v 7.4v 12 volt 12v 48v 24vdc 36v 24v DC BLDC Brushless Motor
Product Details
| Brand Name: | Constar | Place of Origin: | Guangdong, China | Model Number: | 3257N9C2B |
| Type: | Micro Motor | Certification: | CE, ROHS | Torque: | 56.5mNm |
| Efficiency: | IE 1 | Protect Feature: | Totally Enclosed | ||
| Continuous Current(A): | 1585mA | Speed(RPM): | 5900rpm | Commutation: | Brush |
Product Description
High power 24v corelss dc motor for cordless drill
Precision driving field in medical, health care, automobile, industrial automation, etc.
The following are our standard products, we also provide customized products and service.
| -2-24.0 | |||||
| 1 | Voltage | V | 24.0 | ||
| 2 | Rotor resistance | Ω | 2.2 | ||
| 3 | No-load speed | rpm | 5900 | ||
| 4 | No-load current | mA | 130 | ||
| 5 | Stall torque | mNm | 422.2 | ||
| 6 | Stall current | mA | 11000 | ||
| 7 | Nominal torque | mNm | 56.5 | ||
| 8 | Nominal speed | rpm | 5100 | ||
| 9 | Nominal current | mA | 1585 | ||
| 10 | Max. output power | W | 65 | ||
| 11 | Max. efficiency | % | 80 | ||
| 12 | Back-EMF constant | mV/rpm | 4.0 | ||
| 13 | Torque constant | mNm/A | 38.4 | ||
| 14 | Speed/torque gradient | rpm/mNm | 14.0 |
Lead wires length, Shaft length, Special coils, Gearheads, Encoder
| Series | Dimension
(mm) |
Voltage
(V) |
Termanal resistence
(Ω) |
No-load Speed
(rpm) |
No-Load Current
(mA) |
Torque Constant
(mNm/A) |
|---|---|---|---|---|---|---|
| 1625RCG | Φ16*25 | 12 | 13 | 15000 | 25 | 7.4 |
| 1630RCG | Φ16*30 | 24 | 52.5 | 9500 | 15 | 23.5 |
| 1640RCG | Φ16*40 | 24 | 10.7 | 13700 | 60 | 16.3 |
| 2233RCG | Φ22*33 | 24 | 19.6 | 7600 | 20 | 29.7 |
| 2430RCG | Φ24*30 | 7.4 | 0.85 | 13700 | 180 | 5.1 |
| 2543RCG | Φ25*43 | 24 | 6.3 | 6300 | 25 | 36.1 |
| 3068RCG | Φ30*68 | 24 | 0.7 | 8500 | 150 | 26.9 |
| Φ30*68 | 36 | 1.5 | 8600 | 130 | 39.8 | |
| 3257RCG | Φ32*57 | 24 | 2.2 | 5900 | 130 | 38.4 |
