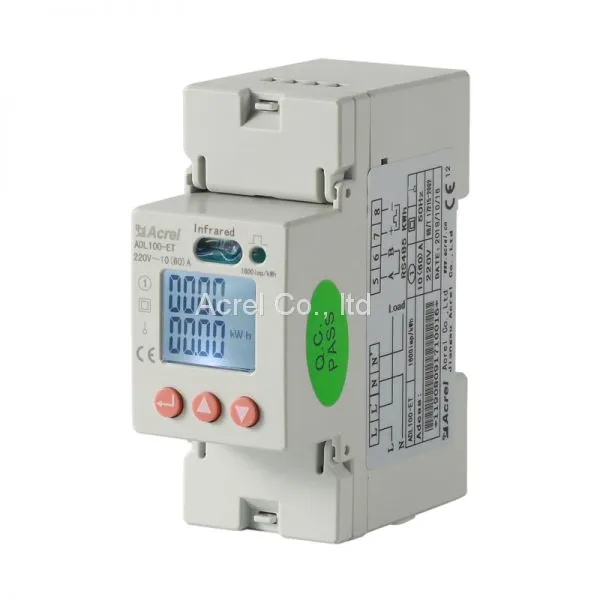

ADL100-ET Single Phase Energy Meter With RS485 Communication

Name: ADL100-ET Single Phase Energy Meter With RS485 Communication
Brand: Acrel
Availability: InStock

FOB Price

USD $35 - $35 / Piece

1 Piece(Min.Order)

Supply Ability 1000 Piece / Pieces per Month
Port Shanghai
Payment Terms:T/T L/C
Delivery Detail:7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name:	Acrel	Place of Origin:	China	Model Number:	ADL100-ET
Phase:	Single Phase	Operating Temperature:	-25℃~55℃	Dimensions:	36mm88 mm70mm
Display Type:	Digital Only	Accuracy Class:	1

Product Description

General

ADL100-ET single phase electric meter is designed for single phase active energy measurement on low voltage system. The meter meet the related technical requirements of electronic power meter in the IEC62053-21,IEC 62053-22 standards.

Production Functions

Function	Description
Measurement of kWh	Single-Phase active KWH (positive and negative)
Measurement of electrical parameters	U、I、P、Q、S、PF、HZ
LCD Display	8 digits
Button	3 keys
Pulse output	Active energy pulse output
communication	RS485, MODBUS-RTU
communication	Infrared

Electrical performance

Voltage	Reference voltage	AC 220V
	Reference frequency	45-65 Hz
	Consumption	<10VA( Single phase)
Current	Maximum	60A
	Starting current	0.004 Ib
	Consumption	<4VA(Maximum current)
Measurement performance	Accuracy of active kWH	Class 1
Measurement performance	Standards complicant	IEC 62053-21:2003
Pulse	Pulse width	80+20 ms
Pulse	Pulse constant	3200 imp/kWH

Dimension drawings

Email：Shelly@acrel.cn

Acrel Co., Ltd. [Stock Code: 300286.SZ] is one of the few leading companies in China who provides various systematic solutions of power monitoring, power control, energy management and electrical safety for smart grid users.

Since June 2003, we has always been focused on the research, production and sales of intelligent electric meters. We concentrates on providing products and services to help customers improve electricity efficiency and safety. So far we had the following comprehensive solutions for different applications: 35(10)/0.4kV substation automation system, building mounted photovoltaic (BMPV) system, power quality management system, energy management system, electrical fire monitoring system, IT distribution system for medical locations, precise distribution management system, power supply monitoring system for fire protection equipment, fire emergency lighting and evacuate indicating system, fire resistant doorsets monitoring system, smart lighting control system, Lithium battery management system and electric vehicle charging system.
