Spreader cable

Spreader cable for low and moderate mechanical stress

Not only for power tow chains, but also for cable, reel cable and traction cable <BR> overall load weaving, preventing unnecessary distortion of the cable and forming a so-called spiral effect

Application range

For lifts, conveyors, spreaders and conveyor systems

Winding and unwinding without fixing

For dry and wet indoor and outdoor use as well as industrial water

Technical Parameters

Core mark: ≤ 5 core: color code conforms to VDE 0293-308, see Appendix T9

6 cores and above: black core white number

Technical certification: VDE 0250, part 814

Conductor: Stranded thin wire in accordance with VDE 0295 Class 5 / IEC 60228 Category 5

Minimum bending radius:

Flexible application during reel operation:

Cable with outer diameter <21.5mm 5 x OD

Cable with outer diameter >21.5mm 6.25 x outer diameter

Flexible application for reel rotation:

7.5x outer diameter

Rated voltage: U0/U: 600/1000 V

Test voltage: 3000 V
Grounding protection core: yellow/green two-color grounding protection core
Temperature range: highest conductor temperature: +80 °C

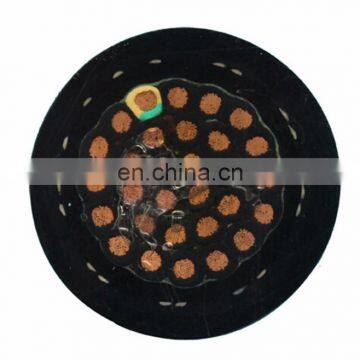

Cable structure

Tinned copper wire stranded wire

Core insulation: 3GI3 rubber

Outer sheath composite reinforced layer

5GM 3 rubber outer sheath </LI></UL>
product features

Flame retardant in accordance with IEC 60332-1-2

Oil resistance according to EN 60811-2-1

Good chemical resistance, heat resistance and mechanical stress resistance

Suitable for connection of mobile devices in hazardous areas in accordance with DIN VDE 0165

Above information is norminal and it can be adjusted as per your requirements.
