water butterfly stainless steel brass ball valve dn200

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Introduce

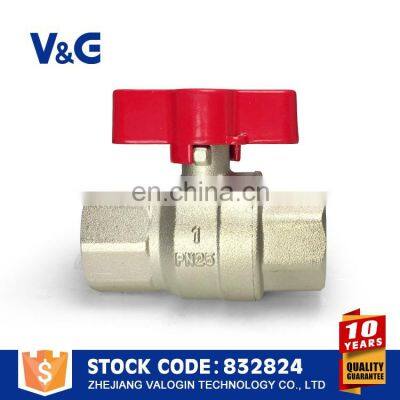

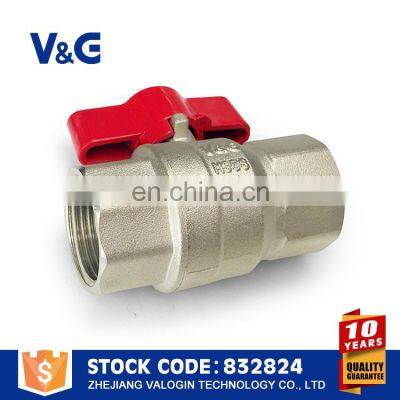

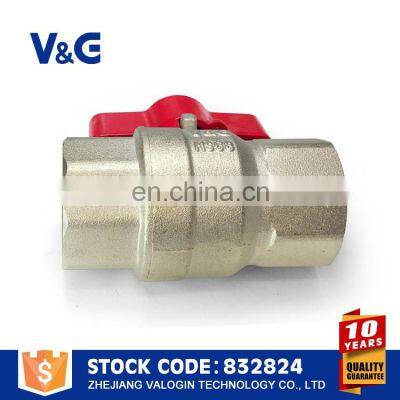

1/2 - 1 Inch Butterfly Handle Regulator Water Nickel Plating Brass Ball Valve

Full flow Female BSP x Female BSP brass ball valves (brass ball & stem) fitted with Iron lever handle are used for a variety of applications including oil & petroleum, and water. They are steam rated with PTFE stem packing. Pressure ratings are 30 bar/435PSI). EN13828 approval. Ball & stem nickel-then-chrome plated for smooth operation.

Why Choose Us

WHY CHOOSE US ?

MARKET Our valve export $80 million. Our sales service networks have been established in more than 60 countries and regions in the global market .	AUTOMATION 70% of the capacity manufactu- red by automation.we achieve the target of 12 million pcs output monthly	CERTIFICATION Company- CNAS ISO9001 ISO18001 USA- UPC AB1953 NSF SA UL FM EUROPE- CE ACS DVGW WRAS EN215 INIG AUSTRALIA- WATERMARK AGA
R&D TEAM We have a r&d team of over 30 people. If you have a sample, the research and development time is a week.	PROJECTS We have the stable supply cap- acity, the annual output value exceeds 100 million.	SUPPLY ABILITY We are suppliers of many large projects, such as the London 2012 Olympics.

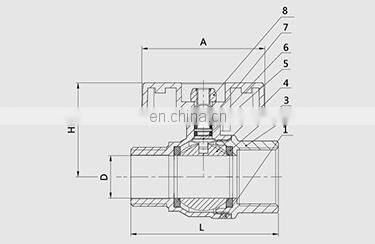

Product Description

PRODUCT DESCRIPTION

NO.

Part Name

Material

1	Body	Brass
2	Bonnet	Brass
3	Seat	PTFE
4	Ball	Brass
5	Stem	Brass
6	O-ring	NBR
7	Handle	AL
8	Nut	Stainless Steel

Dimensions

Spec

1/2"	15	55	39	60
3/4"	19	55	42	66

Spec

Product Attributes

Item: Ball Valve
Size: 1/2" - 1"
Brass material: 59-3
Connection Type: Female BSP x Female BSP
Handle Material: IRON / AL
Handle Type: TEE
Stem Type: Blowout Proof
Stem Material: Brass
Seat Material: PTFE
Body Seal Material: PTFE

Ball Material: Chrome Plated Brass
Valve Basic Body Material: Brass
Surface Treatment: Nickel Plating
Application: Can be used for oil & petroleum, and water
Max. Temp: -20°C to+120°C
Working Pressure: 30bar/725psi
Port: All
Features: Full Port for Maximum Flow Rate
Standards: EN13828
