High-speed fiber laser dual-use cutting machine for hot sale metal sheet and tube laser cutter

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

High-speed fiber laser dual-use cutting machine for hot sale metal sheet and tube laser cutter

Product Description

Introduction

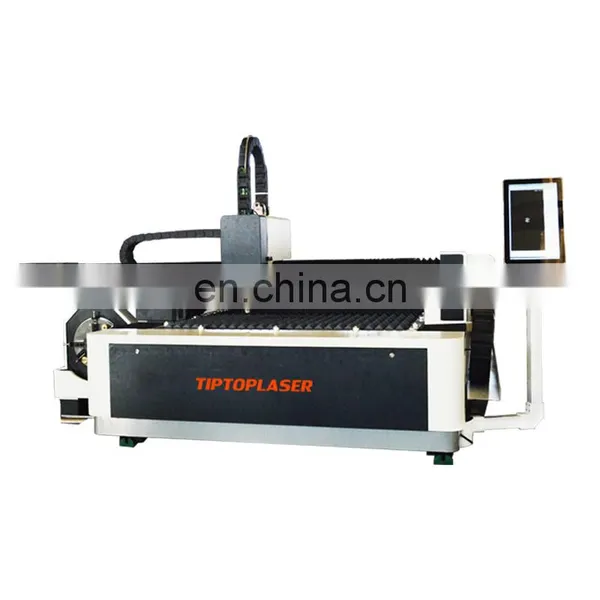

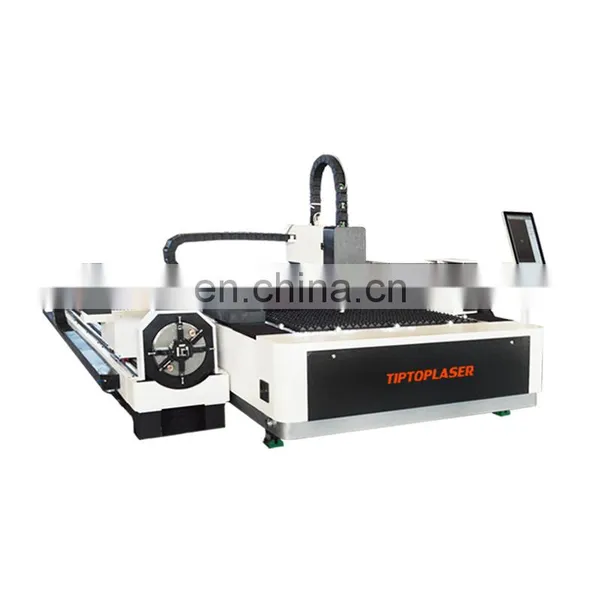

TPF-1530 Metal plate and metal tube Fiber Laser Cutting Machine can be used for cutting stainless steel, carbon steel, aluminum, titanium, copper and other metal materials with higher laser cutting quality, speed, precision, and efficiency.Specially used for cutting 0.5-30mm carbon steel sheets (pipes), 0.5-15mm stainless steel sheets, galvanized steel(pipes), electrolytic zinc-coated steel sheet(pipes), silicon steel(pipes) and other kinds of thin metal sheets and pipes. Range of pipe diameters: 20-220mm.

Parameter

Model			TPF-1530
Laser Type			Fiber Laser
Laser Wavelength			1060nm
Laser Maximum Power	500W	1000W	2000W	3000W	4000W
Max. Cutting thickness	≤8mm	≤12mm	≤16mm	≤18mm	≤20mm
Total Power Consumption	<14KW	<18KW	<22KW	<26KW	<30KW
Max.cutting speed	0-30m/min(Depending on the material and thickness)
X, Y, Z Axis Orientation Precision			≤±0.05mm/m
X, Y, Z Axis Repeat Precision			≤±0.03mm /m
Min line width			≤0.15mm
Maximum Empty Running Speed			120m/min
Driving way			Imported servo motor
Max Cutting Speed			30m/min
Air-way speed			≤60m/min
Working Voltage			AC220V/380V/50HZ

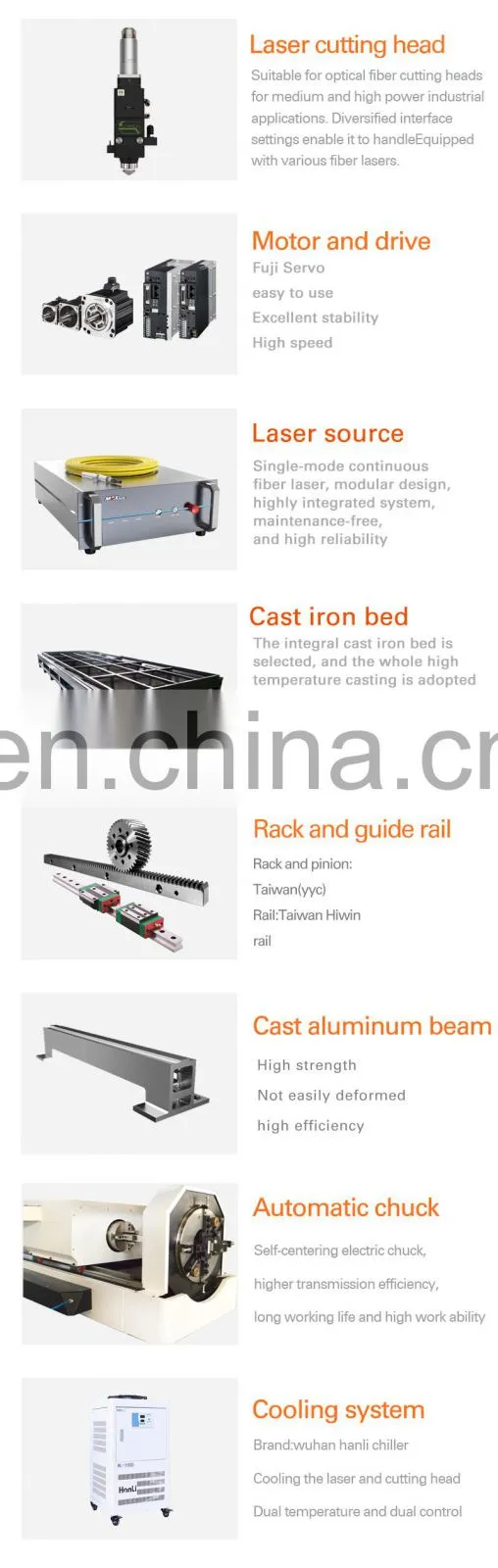

Main Features of 1000w Fiber laser cutting machine

1.Swiss Raytool brand Auto sensor laser cutting head. With Auto sensor system. Make sure cutting steel which is out of shape. Inside laser head, with one collimating mirror, one focus lens and protect the mirror. At the bottom with copper nozzle, diameter mainly with 1.5mm diameter.
2. With CYPCUT Control system and software with the English language, applicable insert files with DXF Or AI format. Drawing in the software is also okay. Software with fly cutting mode for cutting the same products to save time. With Nesting function, automatic compose type for saving materials by saving spaces.
3. When laser head cut metals, there will produce some hot energy in the laser head and laser source. A water chiller is for cooling the mirrors and cooling the laser source. The temperature in the water
chiller is an auto adjustment, mainly set up with 25-degree around water in chiller should be pure water
4. Big torque Japanese Yaskawa drive motors. Match-able with the transmission system, improve cutting speed and precision
5. At the bottom of the machine, with the collector for saving small cutting pieces. Below collector with wheels, easy push and pull.
6. The purging system is designed inside the machine bed. So make sure the smoke is absorbed immediately after cutting. Protect the air environment is also very important.
7. Feeding system with rolls. It is easy to load heavy sheet and metal sheets can be protected by avoiding scratched
8. Easy operations: fiber line transmission, no adjustment of optical path.

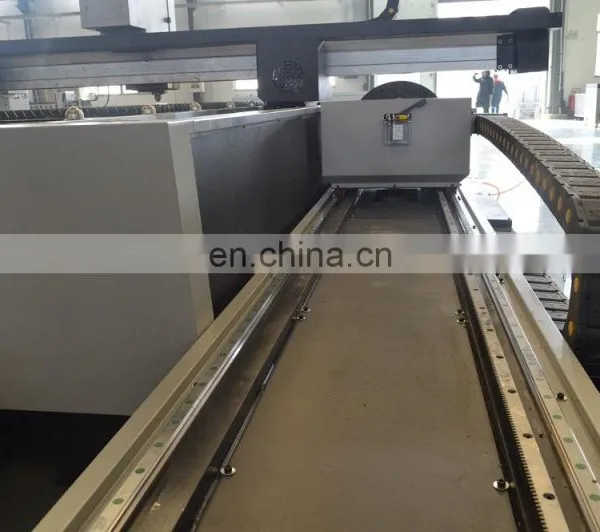

9. X-axis beam is aircraft-grade aluminum casting, replace of the welded steel gantry, more light-footed to make the whole machine working very fast.

Applications&Samples

Cutting sample

- Applications

Ship Building, Construction Equipment, Transport Equipment, Aerospace Industry, Bridge Building, military-industrial, wind power, Structural Steel, Boiler containers, Agriculture Machinery, Chassis electrical cabinets, Elevator manufacturers, Textile Machinery, Environmental protection equipment, Aerospace technology, rocket, plane, robot, elevator, steamship and automobile manufacturing and metal parts processing industry for metal plate, advertisement, kitchenware, bit tool, hardware, etc.

- Materials
Our fiber cutting machine can work on the following materials :
steel, copper, aluminum and stainless steel can be processed. Applies to iron plate, aluminum plate, galvanized sheet, White Steel plate, Titanium plates, and so on like the sheet metal.

Packaging & Shipping

Machine shipping

1. Our wooden case is after fumigation treatment. Needn't timber inspection, saving shipping time.
2. All the Spare parts of the machine were covered by some soft materials, mainly using pearl wool. Avoiding all damages that could happen in the delivery process. Then we'll cover plastic wrap out it tightly, make sure intact of the covered soft materials, also avoiding Waterproof and rustproof.
3. The outmost is a wooden case with fixed formwork.
4. The bottom of the wooden case has a firm iron jack, convenient to Handling and transport.

Company Information

Company information

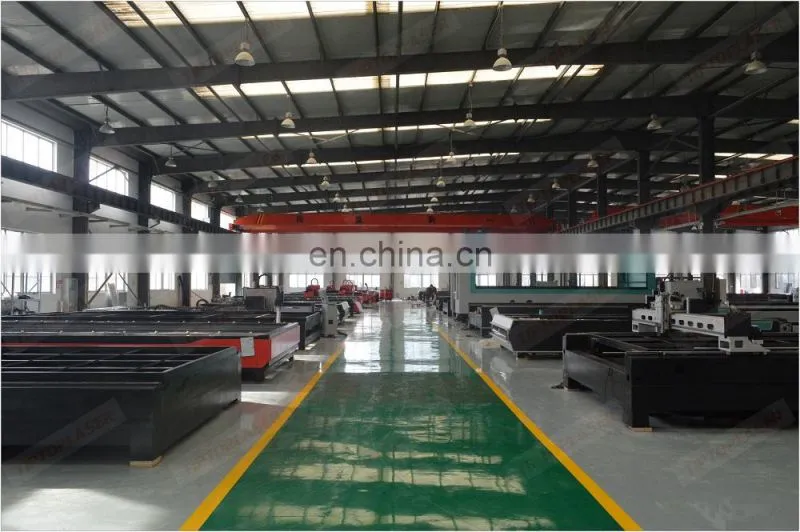

Shenzhen Tip-Top Manufacture &Trading Co., Ltd is a branch company with engineers and research and development for 17 years. It is a professional manufacturer engaged in the research, development, production, and service of fiber laser marking machine. Fiber laser cutting machine, fiber laser marking machine, CNC router, laser engraving machine, laser welding machine, and CNC plasma cutting machine.

Our Services

Our Services

Pre-sale Service:
1. Application Consultation: Our consultants are aware of the global application of marking, cutting and welding technology. We are always ready to provide you with information on product, price, technology, industry solutions, share our valuable knowledge with you and provide you an optimal proposal.
2. Visiting reception: You may make an appointment to visit the exhibition hall or visit the company on-site, we will provide you with professional reception staff.
Sale Service:
1. Testing: Machine will be tested and adjusted before delivery; the operation manual was included.
2. Installation: we provide a friendly English version manual and installation video. An engineer can be sent to your factory for installation.
3. Training: We provide free training on our site. Also, we can send engineers to your factory for training, but you need to pay the round-way ticket, visa fee, local accommodation, etc.
After-sale Service:
1. Warranty: We provide a three-year warranty under normal operation, whole life service. Within the Warranty period, if the equipment has a failure or parts damage ( excluding human factors and force majeure), we shall provide repairing solution, if the customer requires our engineers on site repairing, customer should pay for engineer’s traveling cost. Round -way air tickets, local accommodation and transportation, and visa charge, etc.
2. Online service: 24 hours Technical support by phone, e-mail, Web chat or Whatsapp.

FAQ

Machine FAQ

1. What material can fiber laser machine cut?
Stainless steel, carbon steel, mild steel, galvanized steel, aluminum, copper, brass and other sheet metal and pipe.

2. How long will it take to learn to operate a laser machine?

If you are able to use some basic graphic design software, it will only take a few hours to master the operation. You just need to do some simple tests on different processing materials to know how to set the correct speed and laser power.

3. How can I get perfect service?

(1) Pre-sale: free sample testing service will be provided according to your requirements.

(2) In the sale, the progress of production will be updated gradually, you will be completely run the production of your machine by video, pics or real-time calling

(3) After-sale service, firstly, you will be updated once the machine left for your seaport, such as eta, electrical documents, the policy bill of marine, the Bill of Lading, etc, will be passed to your Mailbox ASAP. Secondly, English-speaking engineers will be available within 24hrs to support your installation via Skype, WhatsApp, Wechat or Tele. In addition, the scaled engineers would be available to go abroad, giving 7-10days training in your workshop(paid service)

4. How do you solve the problem which happened to the machine within warranty?

You will be required to take pics or videos according to our requirements if any parts (exclude consumable )damaged within warranty, free parts will be sent back by air, if any parts damaged without warranty, the trade payment will be charged all cost price and sent by air.

5. How can you guarantee the timely delivery of a machine after paying the deposit?

There will be legal documents like proforma invoice, sale contract, which will be signed and stamped officially, besides, we can make a deal buy Alibaba assurance order so that both you and us can be guaranteed by Alibaba Group. Once you got any problem with machine delivery delaying or no after-sale service, all the above probable conditions can be restricted in Alibaba assurance order.

Contact

You can tell me your detailed request if you don't know how to choose the proper machine,
1/ Which kind of metal materials you wanna cut?
2/ How about the cutting thickness you wanna make pls?
3/ May I know your material's size?
Then I can suggest you choose proper fiber laser cutting machine.
Welcome to come to visit our factory!
