Home > Products > Diesel engine.Jinan diesel engine brand > jichai brand marine engine chidong jinan diesel engine and engine parts G12V190ZLC2

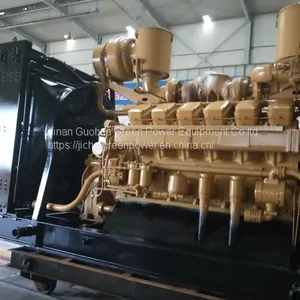

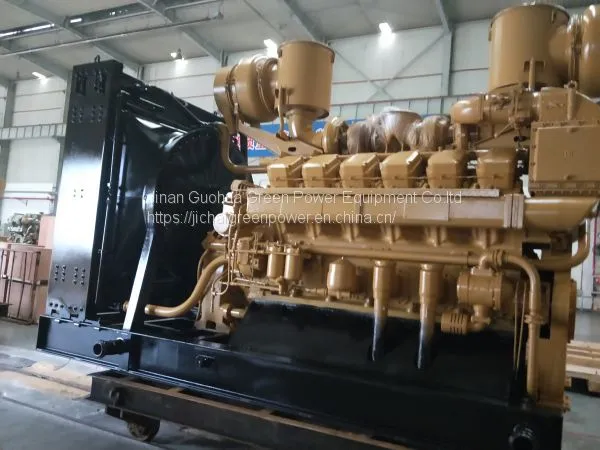

jichai brand marine engine chidong jinan diesel engine and engine parts G12V190ZLC2
1 - 10000
/ Piece
1 Piece(Min.Order)
- 100 Piece / Pieces per Month
- T/T D/P D/A
You May Like
-
H8190ZLC jichai brand marine engine chidong jinan diesel engine and engine parts H8190ZLC
-
H12V190ZLC jichai brand marine engine chidong jinan diesel engine and engine parts H12V190ZLC
-
L12V190ZLC jichai brand marine engine chidong jinan diesel engine and engine parts H12V190ZLC
-
A12V190ZLC jichai brand marine engine chidong jinan diesel engine and engine parts A12V190ZLC
-
jichai brand marine engine chidong jinan diesel engine and engine parts H8190ZLC
-
jichai brand marine engine chidong jinan diesel engine and engine parts 8190
Product Details
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
| Series 2000V marine diesel engines | |||||||
| Model | Rated Power(kw/hp) | Rated speed(r/min) | Specific fuel consumption(g/kw’h) | Specific oil consumption(g/kw’h) | Overall dimension L*B*H(mm) | Net weight(kg) | |
| Z12V190BC1 | 800/1080 | 1500 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Z12V190BC2 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Z12V190BC8 | 1000/1360 | 1500 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Z12V190BC9 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Z12V190BC10 | 900/1225 | 1450 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Z12V190BC11 | 882/1200 | 1500 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| G12V190ZLC1 | 1000/1360 | 1450 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| G12V190ZLC2 | 1000/1360 | 1450 | ≤209.4 | ≤1.6 | 2642*1588*2070 | 5300 | |
| Main technical data No. and arrangement of cylinders:12,60。Vee Type:Four stroke,water cooled,turbocharged and aftercooled,direct injection Bore:190mm Stroke:210mm Total displacement:71.45L Compression ration:14:1 Direction of rotation:Counter-clockwise engine without R,clockwise engine with R in the model(facing to flywheel) Starting method:Air motor or electric motor Lubricating method:Pressure and splash lubrication | |||||||
| Model of generating set | Model of diesel engines | Model of generator | Rated Power KW | Rated voltage V | Rated frequency HZ | Overall dimension L*B*H(mm) | Net weight KG |
| CCFJ400/1000 | Z12V190BCD-2 | TFC5454-6JH42 | 400 | 390 | 50 | 4210*1500*2260 | 10500 |
| CCFJ630/1500 | Z12V190BCD | TFC5456-4JH42 | 630 | 390 | 50 | 4260*1500*2260 | 12000 |
