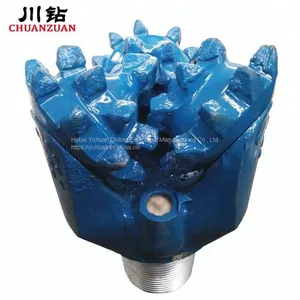

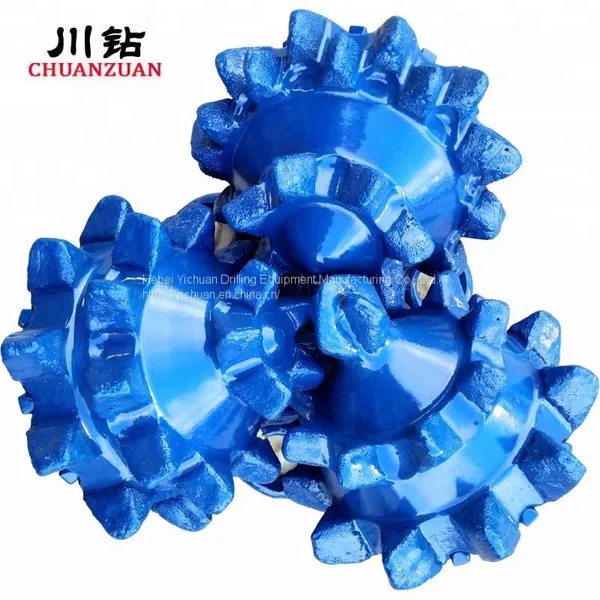

Yichuan Brand new 12 1/4 inch steel tooth tricone drill bit for soft drilling
- 10000 Piece / Pieces per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 7 days
-
10 5/8" Steel tooth Tricone rock drill bit/Tricone bit for water well drilling
-
IADC127 8 1/2" steel tooth tricone drill bit for water well drilling
-
8 3/4inch mill tooth drilling bit for soft drilling formation
-
Yichuan 6 1/2'' steel tooth tricone bit/ roller cone rock bit for water well drilling
-
3 7/8" steel/milled tooth bits tricon drill seal bearing tungsten carbide
-
Smaller tooth 4 1/2'' milled tooth tricone bit with non sealed bearing
Product Details
| Brand Name: | Chuanzuan | Place of Origin: | China | Model Number: | IADC127 |
| Material: | High Manganese Steel | Certification: | API | Type: | Drill Bit |
| Use: | Well Drilling | Processing Type: | Forging | Machine Type: | Drilling Tool |
Product Description
Basical Parameter | |
Bit Size | 12 1/4"(311MM) |
IADC Code | 127 |
Tooth Type | Steel /Milled Tooth |
Bearing Type | Elastomer Sealed Bearing |
Connection | 6 5/8"API reg pin |
Rotary Speed(rpm) | 180~80 |
Weight on Bit(KN/MM) | 0.35~1.00 |
Formation | low compressive strength,high drill-ability and soft formation,like shale,clay,salt rock and soft limestone,etc. |
12 1/4inches is a regular size in water well drilling, it is working well with small capacity drilling rigs and widely used in the world.
Steel tooth tricone rock bit is also named milled tooth tricone rock bit could drill soft mudstone, even soft limestone, the cones are hard faced by tungsten carbide, the bearing is journal and locked by ball, high grade elastomer(rubber)-HNBR O-ring sealed bearing, grease compensating system lubricate the bearing , the working life is very long.
Application
Well Drilling Water Well Drilling
IADC | Rock formation | WOB (KN/mm) | WOB (KN/mm) |
116/117 | Low compressive strength, high drill-ability and extremely soft formation, like soft shale, clay, conglomerate etc. | 0.35~0.90 | 180~80 |
126/127 | Low compressive strength, high drill-ability and soft formation, like shale, clay, soft limestone, salt rock, etc. | 0.35~1.00 | 180~80 |
136/137 | Soft to medium soft with low compressive strength or soft with hard interlayer, like anhydrite, soft limestone,sandstone, etc. | 0.37~1.05 | 130~60 |
216/217 | Medium hard formation with relatively high compressive strength and hard interlayer, like hard shale, sandstone, limestone, etc. | 0.5~1.20 | 100~50 |
