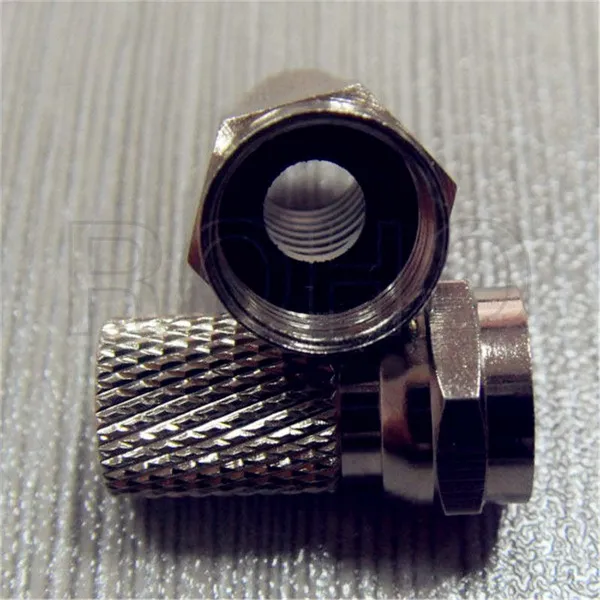

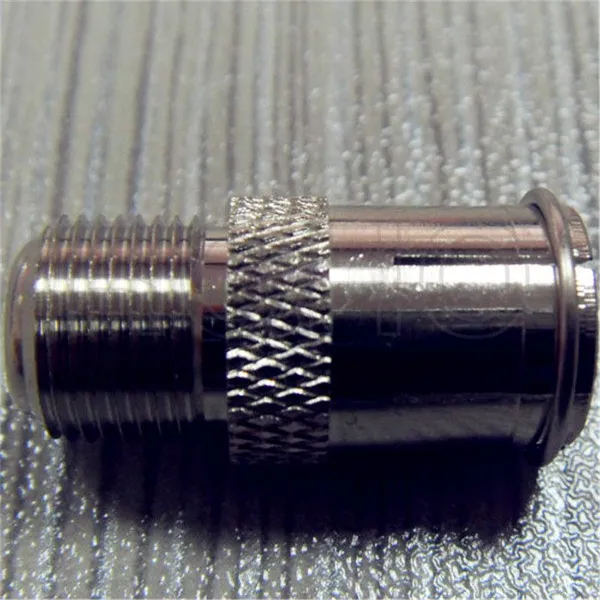

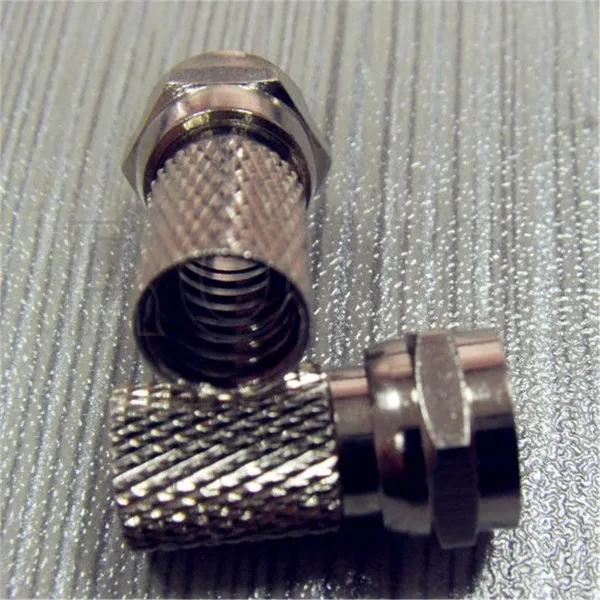

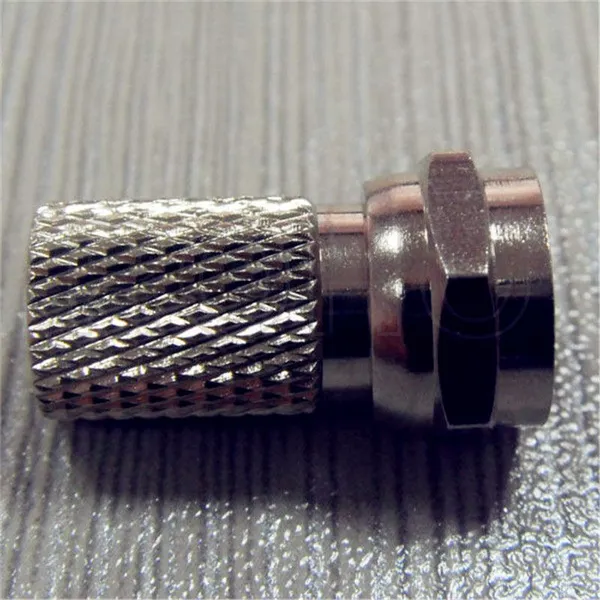

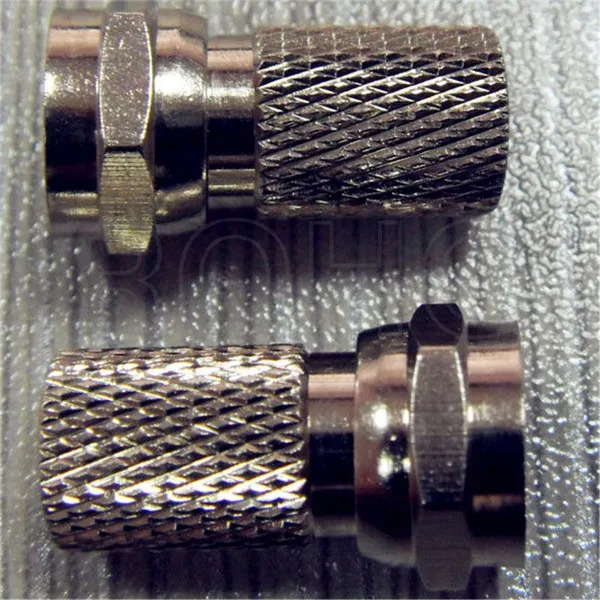

Straight RF Coaxial Plug/Male F Connector for Rg58/179 Cable

Name: Straight RF Coaxial Plug/Male F Connector for Rg58/179 Cable
Brand: ROHO
Availability: InStock

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	ROHO	Place of Origin:	China	Model Number:	F Connector
Type:	Other, N	Application:	RF	Gender:	Male

Mechanical Characteristics
Temperature Range	-40°C to +60°C
Vibration	100m/s2(10-500Hz)
Impedance	75Ω
Frequency Range	DC 1GHz
Working Voltage	170V max
Withstand Voltage	500V rms
Contact Resistance	Inner conductor: ≤10mΩ
Contact Resistance	Outer conductor: ≤5mΩ
Insulation Resistance	≥1000mΩ
VSWR	straight ≤1.2
VSWR	right angle ≤1.3
Durability	≥500 cycles
Material
Shell	Brass--Ni plated
Pin contactor	Brass--Au / Ag plated
Elastic contact	Beryllium / Tin brass--Au / Ag plated
Crimping suite	Copper alloy--Ni / Au plated
O-ring sealing	Silastic
Insulator	PTFE
