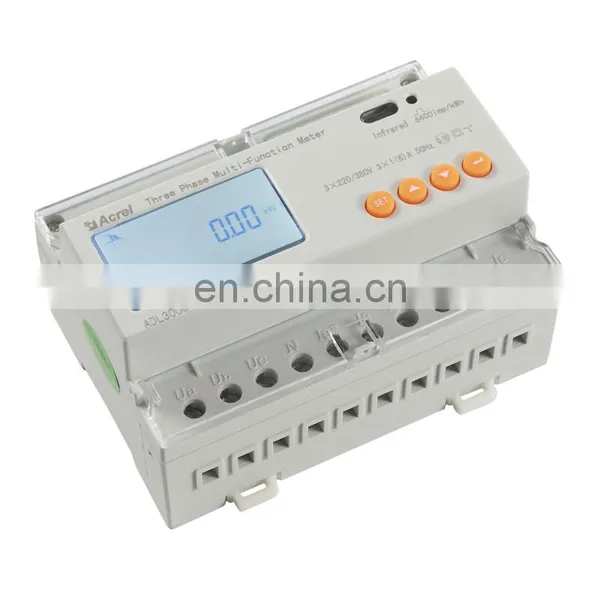

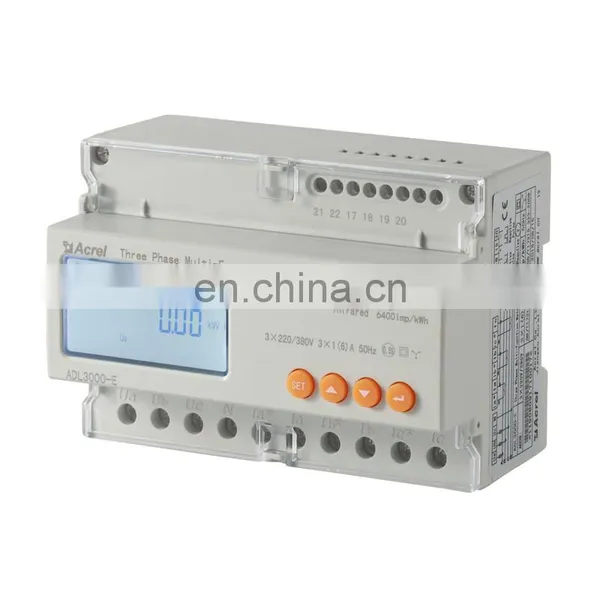

3 phase energy meter Din rail ct or direct 80A connection kwh power meter ADL3000-E
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
3 phase power analyzer AMC72L-E4/KC LED display kwh panel meter electric energy meter
-
3 phase energy meter AMC72L-E4/KC LED display kwh meter electric power meter
-
2 phase two channel energy meter AGF-AE-D100 ANSI approved Revenue Meter for solar monitoring system
-
Three phase4 wire LED Smart Multifunction Power Consumption Meter PZ96-E4(3)
-
LED display multi-function kWh meter PZ96-E4 energy meter Panel size 96*96mm
-
LED electric meter AC Smart Power meter PZ96-E4/M With 4-20mA Analog output
Product Description
ADL3000-E Three Phase Energy Meter
Product Description
Characteristic
Rated U : AC3×220V/380V,3×380V,3×57.7V/100V,3×100V
Rated I : 3×1(6)A,3×10(80)A
Display : LCD display U,I,P,Q,S,PF,kWh,kvarh
Option function/C: RS485,MODBUS-RTU
Option function/F : Multi tariff energies
Option function/K : 1DI/1DO
Option function/H: 2-31st harmonic
Option function/T: three channels temperature measurement(NTC)
Accuracy
kWh: Class 0.5S,kVarh:Class 2Frequency
50/60HZ(Optional),range: 45~65HZ
Pulse output
Pulse output kWh/kvarh
Consumption
<10VA(Single phase)
Dimension(L*W*H): 126.5*88*69.5mm
Switch relay:
Magnetic latching relay(ADL3000-E build-in)
Clock: ≤0.5S / per day
Starting current: 0.1%Ib
Specification
Specification | |||||||
Reference voltage | 3×100V、 3×380V、3×57.7/100V、 3×220/380V | ||||||
Consumption
| ＜10VA | ||||||
Impedance | >2MΩ | ||||||
Accuracy | Error±0.2% | ||||||
Current | Reference current | 3×1(6)A，3×1(6)A(Outlay transformer)， 3×10(80)A | |||||
Accuracy class | Error±0.2% | ||||||
Consumption | ＜1VA | ||||||
Power | Active, reactive, apparent power, error±0.5℅ | ||||||
Display | LCD | ||||||
Frequency | 45～65Hz，Error±0.2% | ||||||
Option Function | Communication | RS485, Modbus-RTU compatible protocol | |||||
Multi tariff energies | Adapt 4 time zones, 2 time interval lists, 14 time interval by day and 4 tariff rates | ||||||
Harmonic | 2-31st harmonic. | ||||||
Switching | 1 Switching output | ||||||
1 optocoupler input | |||||||
Operation Temperature | -10 ºC~+55 ºC | ||||||
Storage Temperature | -25 ºC ~+70 ºC | ||||||
Altitude | ≤ 2500m | ||||||
Relative humidity | ≤93%RH, no condensation, without corrosive gas | ||||||

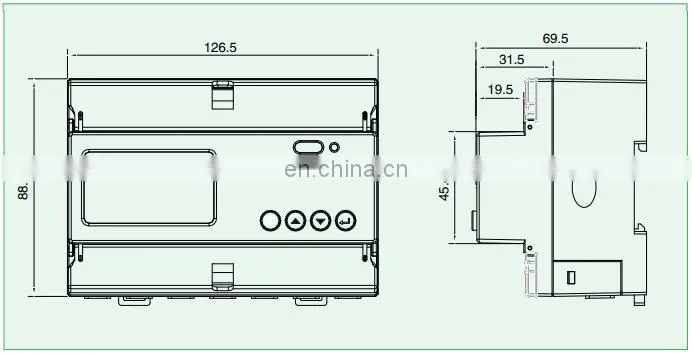

Dimension
Wiring
Three phase four lines connect via CT
Three phase four lines direct connect
Three phase three lines connect via CT
Three phase three lines direct connect
Three phase four lines, 3CT
Three phase three lines, 2CT
