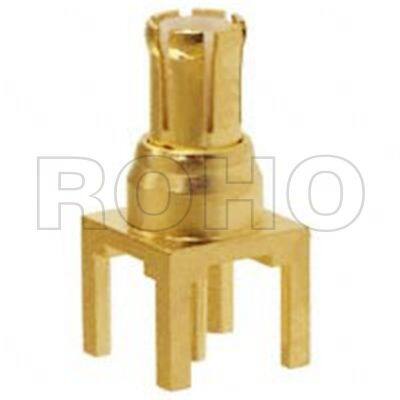

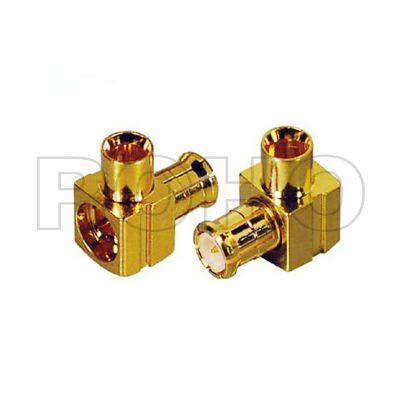

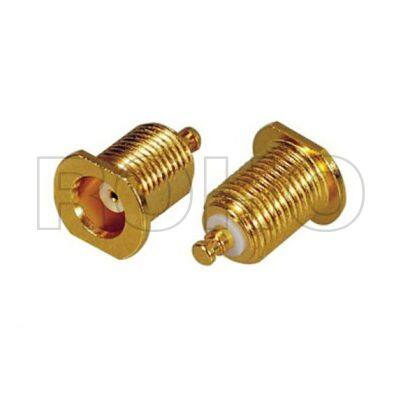

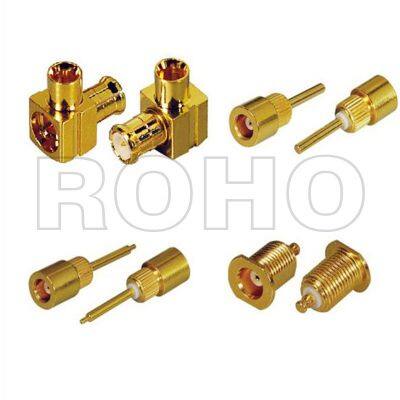

Gold Plated Jack/Female RF Coaxial MCX Connector for Cable and PCB Mount

Name: Gold Plated Jack/Female RF Coaxial MCX Connector for Cable and PCB Mount
Brand: ROHO
Availability: InStock

FOB Price

USD $1 - $10 / Piece

1 Piece(Min.Order)

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	ROHO	Place of Origin:	China	Model Number:	RF Coaxial Female Jack MCX Connector
Type:	MCX	Application:	RF	Gender:	Female

ELECTRICAL DATA
Impedance	50Ω
Frequency range	DC-6GHz
Dielectric withstanding voltage (at sea level)	≥750Vrms,50Hz
Working voltage	≥170Vrms,50Hz (at sea level) / ≥42Vrms,50Hz (at 21000m/70000ft)
Insulation resistance	≥ 10000 mΩ
Contact resistance	Inner conductor: ≤5mΩ
Contact resistance	Outer conductor: ≤1mΩ
RF leakage(measured at 1GHZ)	Flexible: ≥60dB
RF leakage(measured at 1GHZ)	Semi-rigid cable: ≥70dB
MECHANICAL DATA
Engagement force	≤25Nm /5.6lbs
Disengagement force	≥8N-20N / 1.8 lbs-4.5lbs
Contact captivation	≥10N / 2.3 lbs
Durability (matings)	≥500

ENVIRONMENTAL DATA
Temperature range	-55°C to +155°C

MATERIAL DATA
Bodies	Brass--Au plated
Pin contacts	Brass--Au plating
Socket contacts	Coppper beryllium alloy / Phosphor bronze--Au plating
Crimp ferrules	Brass--Au plating
Insulator	PTFE
