High Fastness Hot Dipped Galvanized Reinforced Razor Wire Fence
- 100 Ton / Tons per Month
- Tianjin
- T/T
- 15 days
-
China Electric Galvanized BTO 22 Razor Wire Anti Climb For Community Protective
-
High Tensile BTO 22 Razor Wire 0.5 Thickness With 15 Years Experience
-
Concertina Razor Tape Wire BTO 22 Razor Wire Use On Top Of Wall
-
Bto - 22 25 28 30 Cbt- 60 65Razor Wire Coil Diameter 200 - 1000 Mm
-
Hot Dip Galvanized Barbed BTO 22 Razor Wire 5-25kg / Roll Packing Weight
-
Single Or Cross Concertina BTO CBT Galvanized Barbed Wire from china supplier
Product Details
| Place of Origin: | China | Material: | Galvanized Iron Wire | Type: | Other |
| Application: | Fence Mesh | Wire Gauge: | 2.5mm | Material: | Galvanized Iron Wire |
Product Description
Industrial Corrosion Resistant Security Barbed Wire With Sharp Blades from china supplier
From the material it divided into Electric Galvanized Razor Barbed Wire, Hot Dipped Galvanized Razor Barbed Wire, High Galvanized Razor Barbed Wire ,stainless steel razor barbed wire .
Compare the three material regarding zinc coating weight :
Electric Galvanized Razor Barbed Wire＜Hot Dipped Galvanized Razor Barbed Wire＜High Galvanized Razor Barbed Wire.
1. Material: Iron ,steel or stainless steel
2. Core Wire Diameter: 2.7±0.1mm or 2.5+-0.1mm, 2.4+-0.1mm,2.3+-0.1mm ,2.0+-0.1mm ( customerized )
Razor Barbed sheet thickness: 0.5±0.05mm,0.4+-0.05mm(customerized )
3. Razor Loop Diameter:
300mm, 400mm, 450mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm.
450mm(3 clips), 500mm(3 clips), 900mm(5 clips) are the usually sizes
4. Razor Barbed Wire per coil weight: Be produced as customers requirements. (common weight is 5KG 7KG 10KG, 12kg, 14kg 15 kg )
5. Meters of per coil Razor Barbed Wire:
Razor Barbed Wire is a tensile products. The greater the stretch strength, the greater the distance between them.
6.kinds :
| Crossed Razor Barbed Wire | Two pieces of stainless razor wire or zinccoated razor wire were bounded together by clips to make,it more strength. The spiral intersecting barbed wire presents an intersecing shape after opening with beautiful feature and practicality. |
| Single coil barbed Wire | Single coil barbed tape wire is installed without clips, it runs in natural loops on walls.Costless and can be easily installed. |
| Straight Razor Barbed Wire | There are many ways for straight type razor wire installing. The straight type razor wire can be installed quickly,itcan not only save expenditure but also reach the result of frightening and stopping. |
| Razor Wire Mesh Fence | Welded razor mesh fence is a new form of razor bared wire mesh for security, it with practicality blade and the feature looks very beautiful. It can be used for guard net offence , doors and windows and alsocan be used in military. The specification can be designed as the customers’ need. |

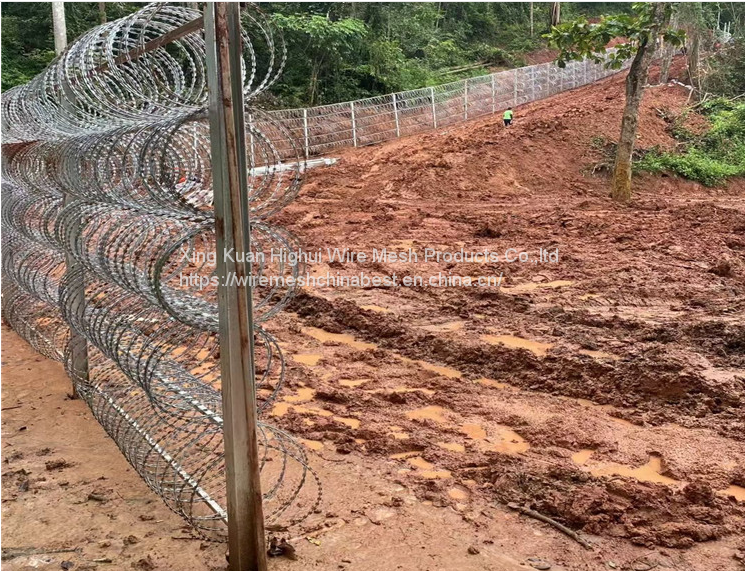

7. Application
Industrial and mining enterprises
garden apartment
border posts
military field
prisons
detention center
government buildings
other national security facilities.

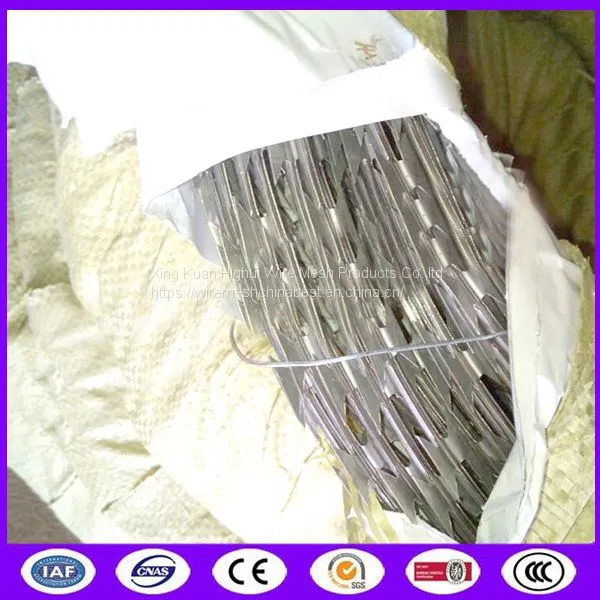

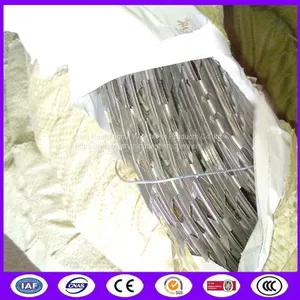

8. Package:
1> Per coil Razor Barbed Wire be packed waterproof paper inside with woven bag outside. Then 50 coils or 100 coils be a bundle with steel strip. Or as customers’ requirement to pack to pallet or carton box.
2> Razor Barbed Wire can be loaded to containers in bulk( that is one by one), but this package will lose the quantity for one container.
3> Also has customers’ request there are no waterproof paper inside. Only just let the Razor Barbed Wire be packed with woven bag then several coils Razor Barbed wire to pallet.
9. Shipping
Shipping time: after receiving deposit, 3-7 work days will sent out factory
Shipping Way: BY sea, by train, by plane
| Outside Dia. | No.of Loops | Standard Length per Coil | Typs | Notes |
| 300mm | 33 | 4-5m | CBT-60.65 | Single coil |
| 450mm | 33 | 7-8m | CBT-60.65 | Single coil |
| 500mm | 56 | 12-13m | CBT-60.65 | Single coil |
| 700mm | 56 | 13-14m | CBT-60.65 | Single coil |
| 960mm | 56 | 14-15m | CBT-60.65 | Single coil |
| 450mm | 56 | 8-9m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 500mm | 56 | 9-10m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 10-11m(3 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 600mm | 56 | 8-10m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 700mm | 56 | 10-12(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 800mm | 56 | 11-13m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 900mm | 56 | 12-14m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 960mm | 56 | 13-15m(5 clips) | BTO-10.12.18.22.28.30 | Cross type |
| 980mm | 56 | 14-16m(5 clips) | BTO-10.12.18.22.28.30 |
| Specification | Thickness (mm) | Wire Dia. (mm) | Barb Length (mm) | Barb Width (mm) | Barb spacing (mm) |
| BTO-10 | 0.45±0.05 | 2.0-3.0 | 10±1 | 13±1 | 26±1 |
| BTO-12 | 0.45±0.05 | 2.0-3.0 | 12±1 | 15±1 | 26±1 |
| BTO-18 | 0.45±0.05 | 2.0-3.0 | 18±1 | 15±1 | 33±1 |
| BTO-22 | 0.45±0.05 | 2.0-3.0 | 22±1 | 15±1 | 34±1 |
| BTO-28 | 0.45±0.05 | 2.0-3.0 | 28±1 | 15±1 | 45±1 |
| BTO-30 | 0.45±0.05 | 2.0-3.0 | 30±1 | 18±1 | 45±1 |
| CBT-60 | 0.45±0.05 | 2.0-3.0 | 60±2 | 32±1 | 100±2 |
| CBT-65 | 0.45±0.05 | 2.0-3.0 | 65±2 | 21±1 | 100±2 |
| Type | Razor Mesh(Diamond Hole) | Razor Mesh(Square Hole) |
| Thickness of Sheet | 0.5mm±0.05mm | |
| Wire Diameter | 2.5mm±0.1mm | |
| Height | 1.0m-2.4m | |
| Length | 2.0m-10.0m | |
| Mesh Size | 75mmx150mm 100mmx200mm 150mmx300mm | 150mmx150mm 200mmx200mm 300mmx300mm |
10. Trade Terms
Trade terms: FOB, CNF, CIF,
Payment terms: 30%T/T as deposit , L/C, Western Union,
MOQ:20tons
Port: TIANJIN
Sample time: 1-3days
Lead time: 10days depend on the final order quantity
Shipment: By sea or airport
Supply capability:600tons/month
