Home > Products > LSD laser radar sensor > Safety Lidar Sensor with Long Range for Moving Robot Navigation

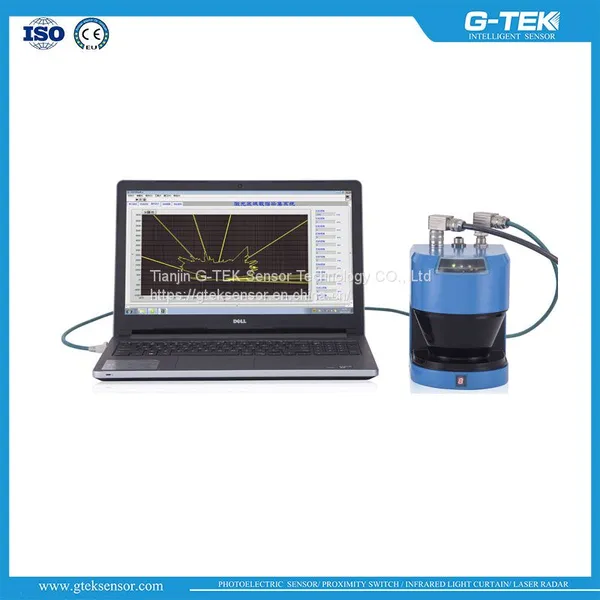

Safety Lidar Sensor with Long Range for Moving Robot Navigation
- 100000 Set / Sets per Month
- tianjin
- T/T PayPal
- 14 days
-
50m Long Range Lidar Sensor for Vehicle Detection and Separation
-
Laser Radar Built-in Self-Heating System with Resistance Strong Light Interference
-
Laser Radar Traffic Sensor for Highway Toll Gate Vehicle Detection
-
Safety Laser Radar Traffic Measuring Sensor for Agv Obstacle Avoidance
-
Lidar Sensor for Intelligent Transportation Vehicle Detection with CE Certificate
-
Lidar Scanner Sensor for Vehicle Axle Identification with Long Range
Product Details
| Brand Name: | G-TEK | Place of Origin: | China | Model Number: | LSD laser radar |
| Usage: | Other, highway toll gate | Theory: | Optical Sensor | Output: | Analog Sensor |
Product Description
Parameter | |
Laser Radar Sensor | LSD series |
Supply voltage | 24VDC±20% |
Distance range | 0-50m |
Scanning angle | -5°-185° |
Angle resolution | 0.36° |
Measurement resolution | 5mm |
Repeatability | ±10mm |
Response time | 20ms |
Laser wavelength | 905nm |
Laser class | I (safe to people’s eyes) |
Data interface | Ethernet 10/100MBd,TCP/IP |
Protection rating | IEC IP68 |
Work Temperature | -45℃ to ＋85℃ |
Storage Temperature | -45℃ to ＋85℃ |
Light interference | 50000Lux |
Shape | 131mm×144mm×187mm |
Electrical connection | |||
Power wire | |||
Terminal number | Color | Signal Definition | Function Description |
One | Blue | 24V | Power supply negative input |
Two | Black | HEAT | Heating supply negative input |
Three | White | IN2/OUT1 | I/O Input NPN output |
Four | Brown | 24V+ | Power supply positive input |
Five | Red | HEAT+ | Heating supply positive input |
Six | Green | NC/OUT3 | I/O Input NPN output |
Seven | Yellow | IN/OUT2 | I/O Input NPN output |
Communication wire | |||
Terminal number | Color | Signal Definition | Function Description |
One | Orange white | TX+E | Ethernet data transmission |
Two | Green white | RX+E | Ethernet data transmission |
Three | Orange | TX-E | Ethernet data transmission |
Four | Green | RX-E | Ethernet data transmission |
Model Number | ||||
Product Name | Product Model | Detection Distance | Digital Input | Output |
LSD Laser Radar | LSD101A | 0-40m | - | 3(NPN) |
LSD121A | 0-40m | 3 | - | |
LSD131A | 0-40m | - | 3(NPN) | |
LSD105A | 0-50m | - | 3(NPN) | |
LSD151A | 0-50m | 3 | - | |
