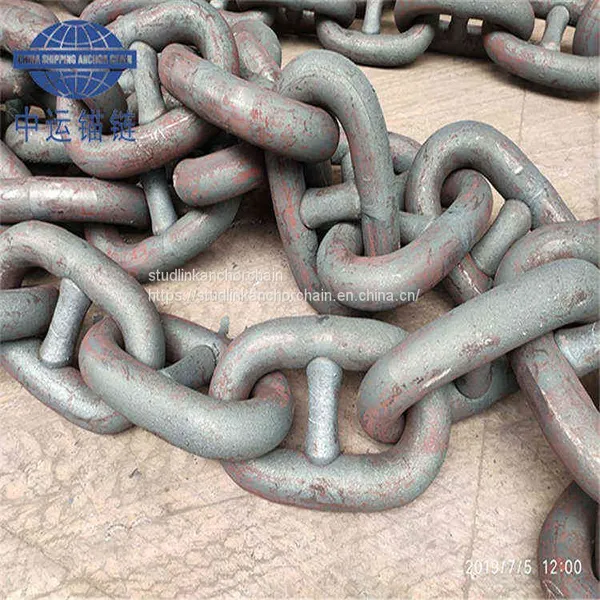

Marine Anchor Chain-China Shipping Anchor Chain

Name: Marine Anchor Chain-China Shipping Anchor Chain
Brand: China Shipping Anchor Chain
Availability: InStock

FOB Price

USD $900 - $1000 / Ton

1 Ton(Min.Order)

Supply Ability 2500 Tonne / Tonnes per Month
Port Shanghai
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
Delivery Detail:15 days

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Details

Brand Name:	China Shipping Anchor Chain	Place of Origin:	China	Model Number:	Marine Anchor Chain
Part:	Other

Product Description

Anchor Chain Factory-China Shipping Anchor Chain

Our advantage:

A. Delivery: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

B. Warranty: Our warranty for our anchor chains can be 2-4 years.

Anchor Chains,Anchor Chain Factory,Marine Anchor Chain

Production Procedure:

Manufacturing process quality control from raw material to final product.
Whole set drawing approved by all IACS members; Material Fatigue Test on request; Stress Analysis on request; Stress actual test on quest.
Magnetic power testing, ultrasonic testing, and fluorescent penetrant inspection.
Load test machine up to 2000Ton.

Anchor Chain Accessories:
1.Kenter Shackle2.Joining Shackle3.End Shackle4.Swivel5.Swivel Shackle6.C Shaped Connecting Shackle7.Slim Kenter Shackle8.Forelock Shackle9.Pear Shaped Shackle10.Buoy Shackle11.Swivel Group12.Triangle Plate13.Round Link

Loading Details:

1.For LCL loading, the package method include sacks, iron cages, pallets

2.For FCL loading, the chains will be bound with STEEL WIRE ROPE and load in container direactly

Size	16~162mm
Grade	Grade U3 U4 also there are Grade U1 U2
Material	High Stength Steel Round Bar
Production Capacity	2200T/month with 30sets flash But welded Line
Works	100~150 skilled workers our workers is qualifed by IACS
Delivery time	1~15days, we keep some in stock for details please check with our sales team
Certificate	KR LR BV NK CCS DNV GL ABS RMRS RINA...
Standard	Production accordingly to ISO 1704 GBT549

Also We can offer Install and cleaning a foul hawse service at all chinese port shipyard and in Singapore port, for some famous International Port we have local cooperator to offer one shop service.

China Anchor Chain Factory Fast Delivery,China Shipping anchor chain factory, manufacturer, supplier, China Anchor Chain, Stud Link Anchor Chain Factory Fast Delivery,stockiest,for sales,DNV GL BV ABS LR CCS NK KR Class

Studlink Anchor Chain Technical Data

Chain Size		Dimensions Inches			Grade 2		Grade 3
Inches	MM	A	B	C	Proof	Break	Proof	Break
5/8	16	3 3/4	2 1/4	13 3/4	23745	33220	33220	47465
3/4	19	4 1/2	2 5/8	16 1/2	34000	47600	47600	68000
13/16	21	4 7/8	2 7/8	17 7/8	39800	55700	55700	79500
7/8	22	5 1/4	3 1/8	19 1/4	46000	64400	64400	91800
15/16	24	5 5/8	3 5/16	20 5/8	52600	73700	73700	10500
1	25	6	3 9/16	22	59700	83600	83600	119500
1 1/16	27	6 3/8	3 3/4	23 3/8	67200	94100	94100	135000
1 1/8	29	6 3/4	4	24 3/4	75000	105000	105000	150000
1 3/16	30	7 1/8	4 1/4	26 1/8	83400	116500	116500	167000
1 1/4	32	7 1/2	4 1/2	27 1/2	92200	129000	129000	184000
1 5/16	33	7 7/8	4 3/4	28 7/8	101500	142000	142000	203000
1 3/8	34	8 1/4	4 15/16	30 1/4	111000	155000	155000	222000
1 7/16	36	8 5/8	5 3/16	31 5/8	120500	139000	139000	241000
1 1/2	38	9	5 3/8	33	131000	183500	183500	262000
1 9/16	40	9 3/8	5 5/8	34 3/8	142000	198500	198500	284000
1 5/8	42	9 3/4	5 7/8	35 3/4	153000	214000	214000	306000
1 11/16	43	10 1/8	6 1/16	37 1/8	166500	229000	229000	327000
1 3/4	44	10 1/2	6 5/16	38 1/2	176000	247000	247000	352000
1 13/16	46	10 7/8	6 1/2	39 7/8	188500	264000	264000	377000
1 7/8	48	11 1/4	6 3/4	41 1/4	201000	281000	281000	402000
1 15/16	50	11 5/8	7	42 5/8	214000	299000	299000	427000
2	51	12	7 3/16	44	227000	318000	318000	454000
2 1/16	52	12 3/8	7 7/16	45 3/8	241000	337000	337000	482000
2 1/8	54	12 3/4	7 5/8	46 3/4	255000	357000	357000	510000
2 3/16	56	13 1/8	7 7/8	48 1/8	269000	377000	377000	538000
2 1/4	58	13 1/2	8 1/8	49 1/2	284000	396000	396000	570000
2 5/16	59	13 7/8	8 5/16	50 7/8	299000	418000	418000	598000
2 3/8	60	14 1/4	8 9/16	52 1/4	314000	440000	440000	628000
2 7/16	62	14 5/8	8 3/4	53 5/8	330000	462000	462000	660000
2 1/2	64	15	9	55	346000	484000	484000	692000
2 9/16	66	15 3/8	9 1/4	56 3/8	363000	507000	507000	726000
2 5/8	67	15 3/4	9 7/16	57 3/4	379000	530000	530000	758000
2 11/16	68	16 1/8	9 11/16	59 1/8	396000	554000	554000	792000
2 3/4	70	14 1/2	9 7/8	60 1/2	413000	578000	578000	826000
2 13/16	71	14 7/8	10 1/8	61 7/8	431000	603000	603000	861000
2 7/8	73	17 1/4	10 3/8	63 1/4	449000	628000	628000	897000
2 15/16	75	17 5/8	10 9/16	64 5/8	467000	654000	654000	934000
3	76	18	10 13/16	66	485000	679000	679000	970000
3 1/16	78	18 3/8	11	67 3/8	504000	705000	705000	1008000
3 1/8	79	18 3/4	11 1/4	68 3/4	523000	732000	732000	1046000
3 3/16	81	19 1/8	11 1/2	70 1/8	542000	759000	759000	1084000
3 1/4	83	19 1/2	11 11/16	71 1/2	562000	787000	787000	1124000
3 5/16	84	19 7/8	11 15/16	72 7/8	582000	814000	814000	1163000
3 3/8	86	20 1/4	12 1/8	74 1/4	602000	843000	843000	1240000
3 7/16	87	20 5/8	12 3/8	75 5/8	622000	871000	871000	1244000
3 1/2	90	21	12 5/8	77	643000	900000	900000	1285000
3 5/8	92	21 3/4	12 15/16	79 3/4	685000	958000	958000	1369000
3 3/4	95	22 1/2	13 3/8	82 1/2	728000	101900	101900	1455000
3 7/8	98	23 1/4	14	85 1/4	772000	1080000	1080000	1543000
4	102	24	14 3/8	88	816000	1143000	1143000	1632000

China Largest Studlink Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain studlink anchor chain price studlink anchor chain in stock studlink anchor chain fast delivery

Anchor Chain Factory Manufacture Supplier Wholesaler Anchor Chain Marine Anchor Chain with KR LR BV NK CCS RMRS RINA DNV ABS GL

Also can offer High Holding Power Anchor Stockless Anchor AC-14 Anchor, MK5 Anchor, Flipper Delta Anchor, Danforth Anchor, Pool Anchor, SpekAnchor, Hall Anchor

China Largest Anchor Chain manufactuer factory supplier wholsaler distributer anchor chain marine anchor chain ship anchor chain studlink anchor chain stud link anchor chain studlink anchor chain price anchor chain in stock anchor chain fast delivery
