1W Isolated Single Output DC/DC Converters power supply
part No.:TPR2424S-1W

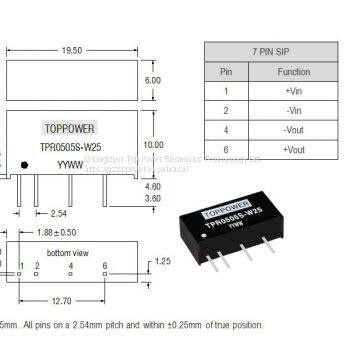

package:SIP
input voltage:24VDC
output voltage:24VDC
production time: 500pcs / 3days, 1000pcs/5days, 5000pcs/8days
terms: EXW, FOB
Express: DHL/FEDEX/UPS/TNT

The TPR-1W series are miniature, isolated 1W DC/DC converters in a SIP package. They offer the ideal solution in many space critical applications for board level power distribution. The internal SMD construction makes it possible to offer a product with high performance at low cost. The series offers smaller size, improved efficiency, lower output ripple noise and 3KVDC isolation.

RoHS compliant 3KVDC isolation Efficiency up to 80%

Operating temperature: -40C to 85C  Power density up to 0.90W/cm3 UL 94V-0 package material

Footprint from 1.17cm2 Industry standard pinout Input voltage: 5V, 12V, 15V, 24V

Output voltage: 5V, 12V, 15V, 24V Custom solutions available /

Parameter Conditions Min. Typ. Max. Units

Voltage range 24V input 22 24 26.6 V

ISOLATION CHARACTERISTICS

Parameter Conditions Min. Typ. Max. UnitsIsolation voltage Tested for 1 second 3000 VDCResistance Viso=1000VDC 1 G

OUTPUT CHARACTERISTICS

Parameter Conditions Min. Typ. Max. Units

Rated Power TA=-40°C to 85°C 1 W

Voltage Set Point Accuracy See tolerance envelope

Line regulation High VIN to low VIN 1.2 %/%

Short-circuit protection 1 second

Lead temperature 1.5mm from case for 10 seconds 300°C

Internal power dissipation 540mW

Input voltage Vin, TPR24 variants 28V FEATURES     RoHS compliant    3KVDC isolation    Efficiency up to 80%     Operating temperature: -40℃ to 105℃     Power density up to 0.90W/cm3    UL 94V-0 package material     Footprint from 1.17cm2    Industry standard pinout    Input voltage:3.3V,5V,   12V, 15V, 24V       Output voltage: 3.3V,3.6V,5V, 9V,12V, 15V, 24V,etc    Custom solutions available    CE certification     SELECTION GUIDE     Part Number    Nominal Input   Voltage    Output Voltage    Output Current (Max./Min)    Efficiency     V    V    mA    %     TPR0303S-1W    3.3    3.3    303/30.3    72     TPR0305S-1W    3.3    5    200/20    74     TPR0503S-1W    5    3.3    303/30.3    72     TPR0505S-1W    5    5    200/20/    68      TPR0509S-1W    5    9    111/11.1    78     TPR0512S-1W    5    12    84/8.1     76      TPR0515S-1W    5    15    68/6.8     79      TPR0524S-1W    5    24    42/4.2    81     TPR1203S-1W    12    3.3    303/30.3    74     TPR1205S-1W    12    5    200/20     69      TPR1209S-1W    12    9    111/11.1    76     TPR1212S-1W    12    12    84/8.4     77      TPR1215S-1W    12    15    68/6.8     76      TPR1224S-1W    12    24    42/4.2    84     TPR1505S-1W    15    5    200/20    69     TPR1512S-1W    15    12    83/8.3    76     TPR1515S-1W    15    15    67/6.7    75     TPR2405S-1W    24    5    200/20     71      TPR2409S-1W    24    9    111/11.1    78     TPR2412S-1W    24    12    84/8.4     78      TPR2415S-1W    24    15    68/6.8     80      TPR2424S-1W    24    24    42/4.2    80     TPR2404S-1W    24    3.6    277/27.7    74     Add suffix “P” for continuous short circuit   protection, for example TPR0505SP-1W.
