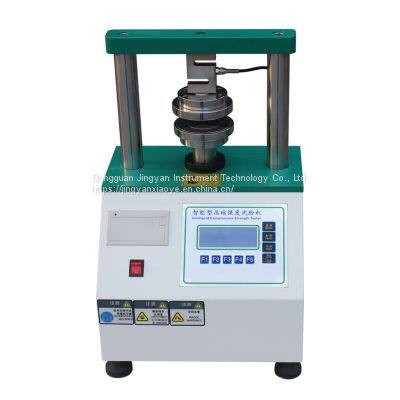

JY-1008 Edge Pressure Ring Crush Strength Tester Paper Testing Machine
- 200 Set / Sets per Month
- shenzhen guangzhou
- T/T Credit Card Cash
-
Digital Textile Bursting Strength Test Machine Corrugate Paper Bursting Strength Tester
-
Paper Cardboard Mullen Burst Strength Testing Machine With Touch Screen
-
High Quality Carton Compressive Strength Tester Box Compression Testing Machine
-
Best Price Digital Paper Core Tube Compression Test Machine Manufacturers
-
Corrugated Pipe Compression Tester Pipe Material Testing Machine
-
150L Touch Screen Laboratory Equipment Constant Temperature Humidity Climatic Test Chamber
Product Details
| Brand Name: | JINGYAN | Place of Origin: | China | Model Number: | JY-1008 |
| Power: | Electronic | Usage: | Compression Testing Machine |
Product Description

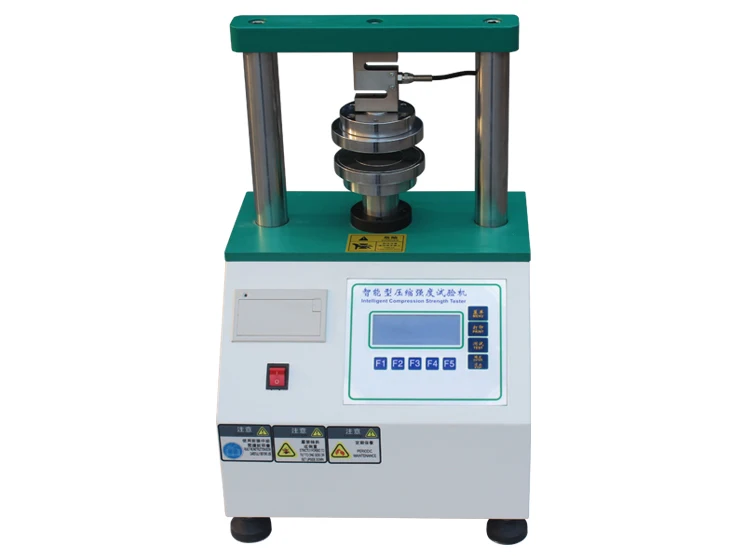

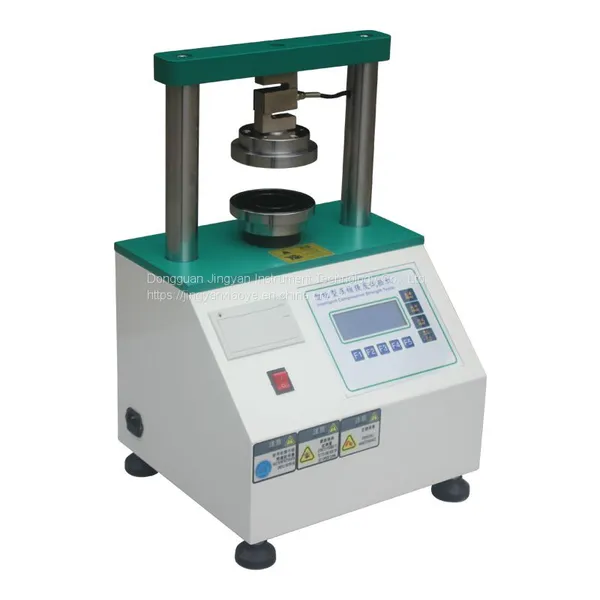

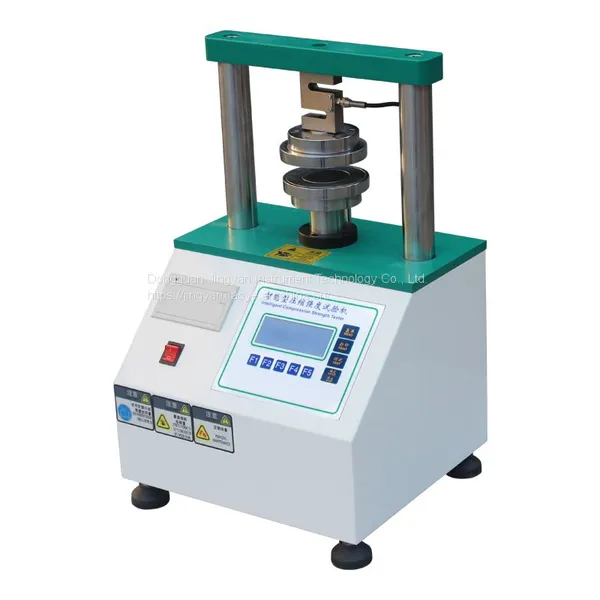

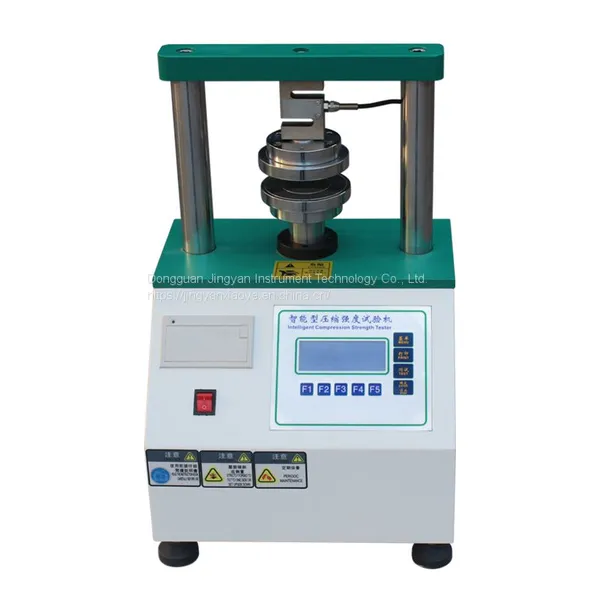

JY-1008 Edge Pressure Ring Crush Strength Tester Paper Test Machine
Product introduction:

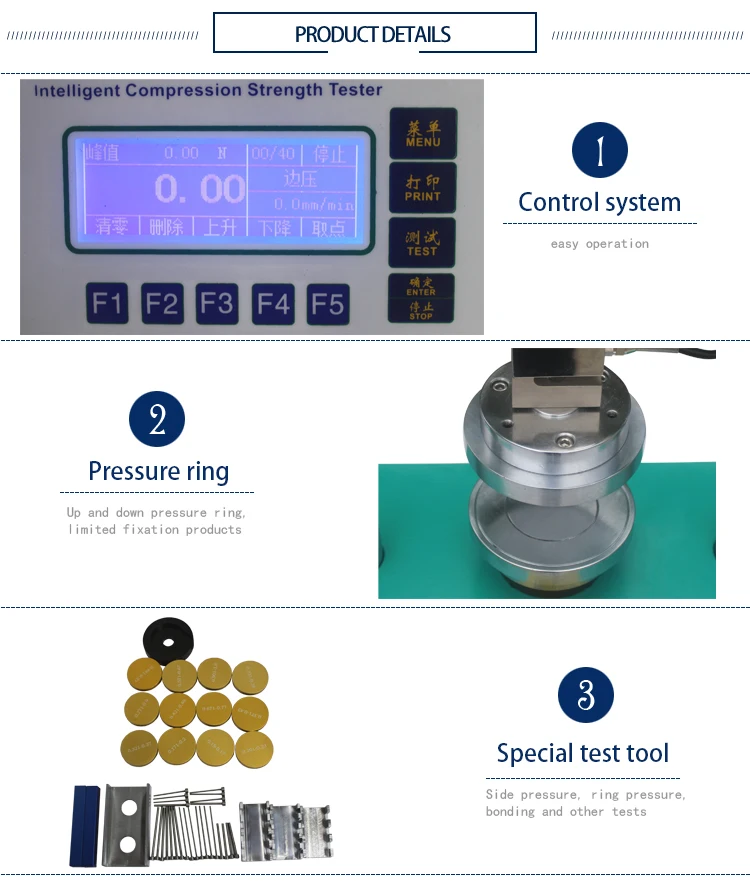

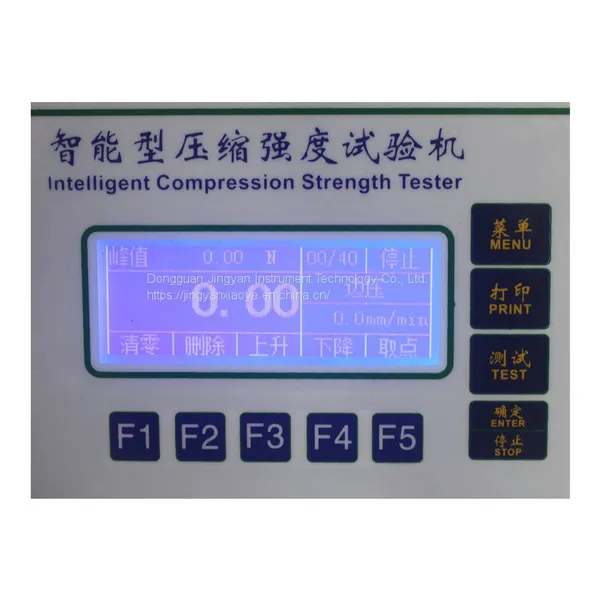

Intelligent paperboard side pressure strength tester, also known as computer test control compression tester, paperboard compression tester, electronic compression tester, side pressure meter, ring pressure meter, is the basic instrument for paperboard/paper compressive strength performance test (Paper packaging testing equipment), equipped with a variety of fixture accessories can test the raw paper of the ring pressure strength, cardboard flat pressure strength, side pressure strength, bonding strength and other tests, so that paper production enterprises to control production costs and improve product quality. Its performance parameters and technical indicators are in compliance with relevant national standards.
Measuring range | ≤3000N |
Accuracy | ±1% |
Unit switching | N,kN,kgf,gf,lbf |
Test speed | 12.5±2.5mm/min(Or can be set to speed according to customer requirements) |
Upper and lower platen parallelism | <0.05mm |
Platen size | 100×100mm(Or can be set to speed according to customer requirements) |
Upper and lower pressure plate spacing | 80mm(Or can be set to speed according to customer requirements) |
Volume (approx.) | 350×400×550mm |
power supply | AC220V±10% 2A 50HZ |
Weight (approx.) | 65kg |
