QJB submersible mixer installation system ，sewage treatment equipment fixing bracket

Basic introduction of QJB submersible mixer installation system and fixed support of sewage treatment equipment

QJB submersible mixer installation system lifting carbon steel sewage treatment equipment lifting system fixing bracket

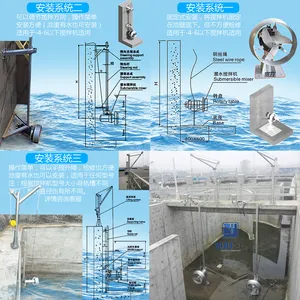

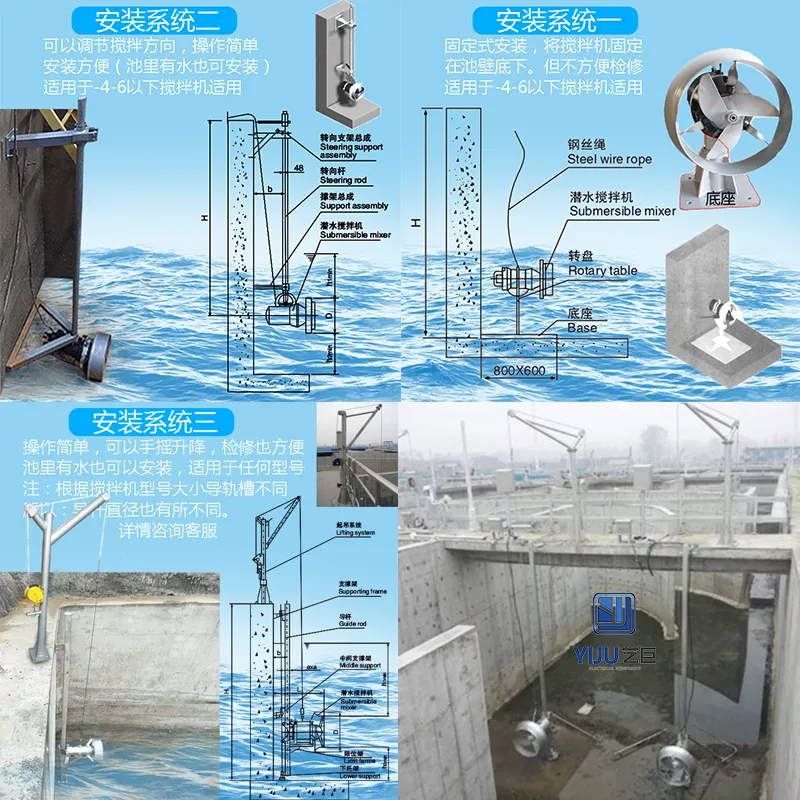

Installation method and size of submersible mixer

Submersible mixer can be installed in a variety of ways. Here are four common ways

For selection, refer to the following table for dimensions. Our company can also make special design according to the requirements of users.

Technical parameters of fixed support for sewage treatment equipment of QJB submersible mixer installation system

Submersible mixer installation system:

1. The installation system of submersible mixer can quickly install and disassemble the submersible mixer without discharging the sewage in the pool;

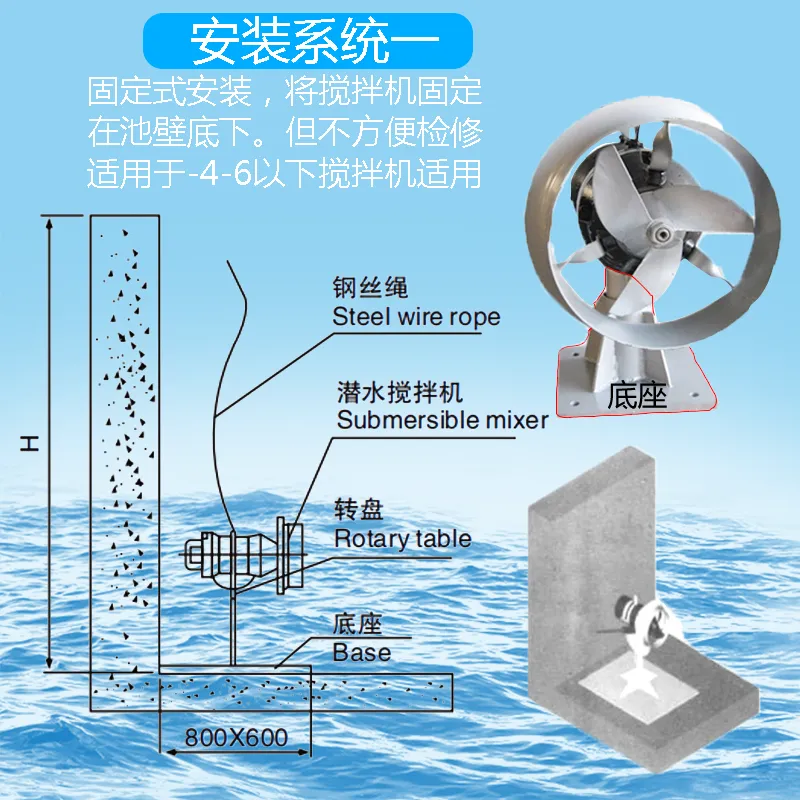

2. The installation system I-1 is only applicable to the pool depth <4m, and the models are qjb0.85/8 and qjb1.5/6,

And the angle can be adjusted in the horizontal and vertical directions; When the pool depth is > 4m, the installation system I-2 type shall be selected;

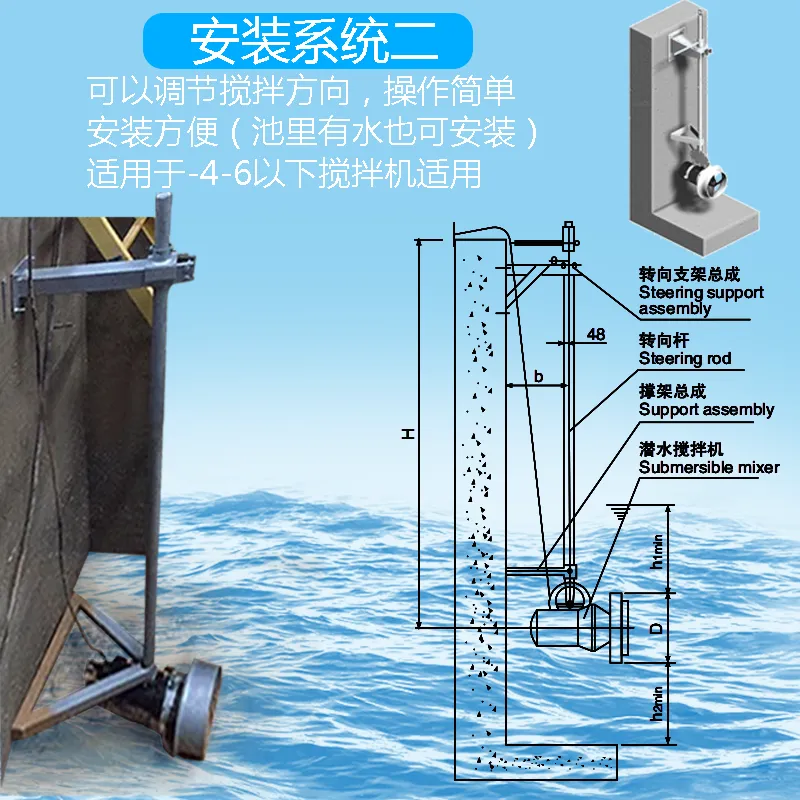

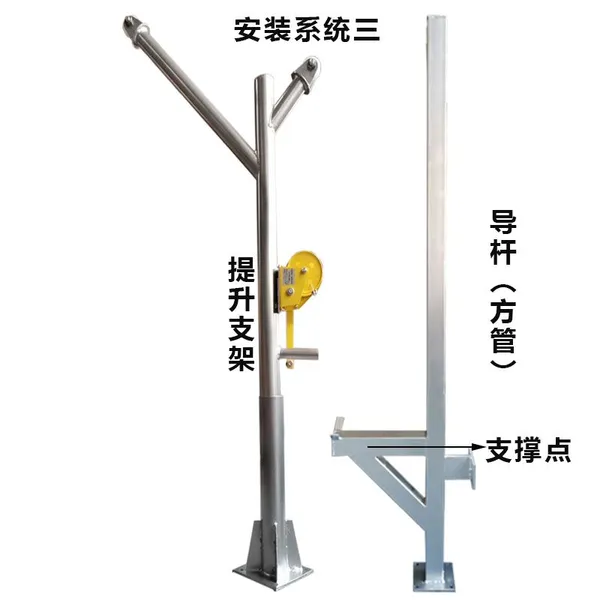

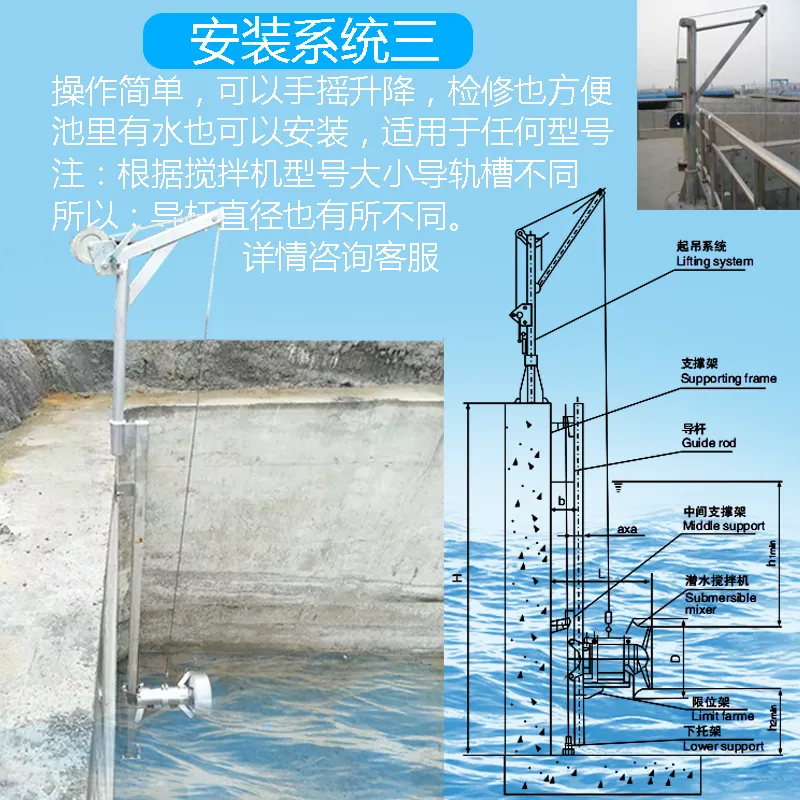

3. The guide rods of installation system II and III can rotate around the axis of the guide rod in the horizontal direction, and the angle is ± 60;

4. When H > 4m, a support frame shall be added in the middle of the guide rod;

5. The support frame, lower bracket, pool wall and pool bottom are fixed with expansion bolts or chemical anchor bolts without reserved holes;

6. When ordering, please provide the pool depth h and pool shape drawing to determine the size of guide rod and the number of support frames;

7. The installation system is made of stainless steel and carbon steel for corrosion protection;

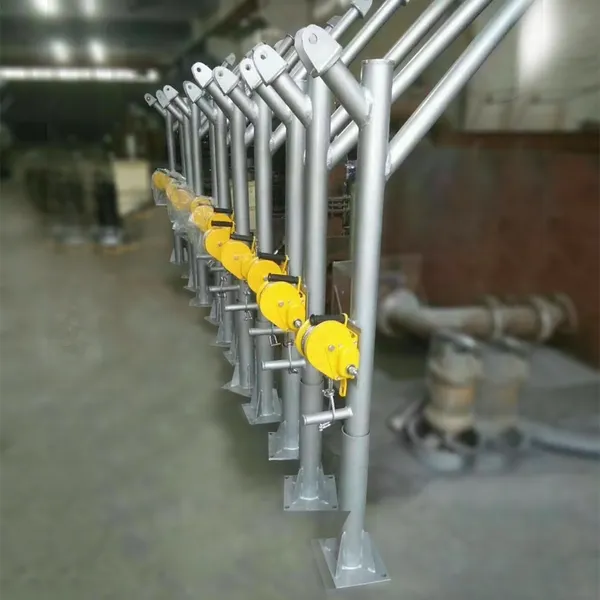

8. Multiple mixers can share a set of lifting system.
