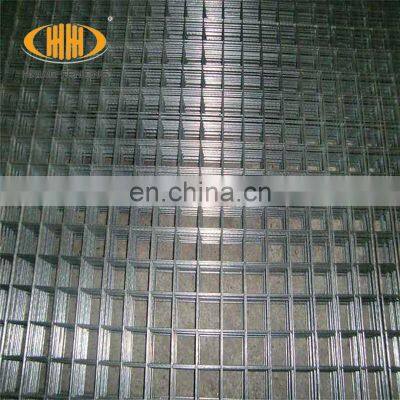

China Professional Cheap Heavy Gauge 1.5 Inch Welded Wire Mesh/small Mesh Galvanized Wire Mesh

                                                                         Specification List of Welded Wire Mesh

Opening

Wire Diameter

In inch

In metric unit(mm)

1/4" x 1/4"

6.4mm x 6.4mm

22,23,24

3/8" x 3/8"

10.6mm x 10.6mm

19,20,21,22

1/2" x 1/2"

12.7mm x 12.7mm

16,17,18,19,20,21,22,23

5/8" x 5/8"

16mm x 16mm

18,19,20,21,

3/4" x 3/4"

19.1mm x 19.1mm

16,17,18,19,20,21

1" x 1/2"

25.4mm x 12.7mm

16,17,18,19,20,21

1" x 1"

25.4mmX25.4mm

16,17,18,19,20,21

1-1/2" x 1-1/2"

38mm x 38mm

14,15,16,17,18,19

1" x 2"

25.4mm x 50.8mm

14,15,16

2" x 2"

50.8mm x 50.8mm

12,13,14,15,16

2" x 3"

50mmx70mm

2.0mm,2.5mm,1.65mm

3" x 3"

75mmx75mm

2.67mm,2.41mm,2.11mm,1.83mm,1.65mm

2" x 4"

50mmx100mm

2.11mm,2.5mm

4" x 4"

100mmx100mm

2.0mm,2.5mm

Technical Note:
1,Standard roll length: 30m;width: 0.5m to 1.8m
2,Special sizes available at request

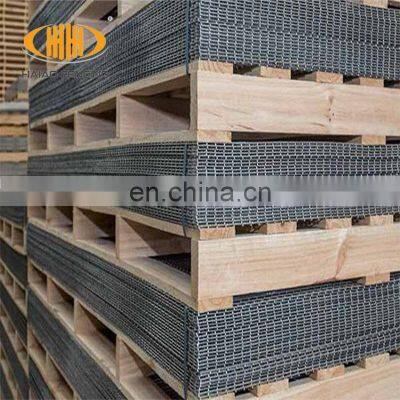

3,Packing: in waterproof paper in rolls. Custom packing available at request.

Material

Low carbon/Galvanized iron wire

Stainless steel wire

PVC-coating/plastic-soaked iron wire

Surface Treatment

Electro galvanized, hot dipped galvanized, PVC coated, or power coated.

Characteristics

Strong welded points and bright luster .

The mesh doesn't come loose even if cut in parts or being exerted force on

parts.Compared with general iron wire,the products are better in respects

of anticorrosion and anti-rust.

Process

The wire fabric is made up of iron wires arranged in parallel fashion in two orthogonal directions, with the points of contact being welded between the wires by electrical welding process (spot welding) by welding machine.

Features

Solid construction;Easy handling;Wires resist movement;

Flush edge trim available

Applications

used widely in industry, agriculture, building, transportation, mine, field, lawn. cultivation .etc. profession's guard decorate, machine protection etc.

Assortments Available

Welded Stainless Steel Wire Mesh Panels

Hot-dipped and Electro Galvanized Welded Mesh Panels

PVC-coating/plastic-soaked Welded Mesh Panels

Concrete reinforcement wire mesh panel
