Home > Products > QYM-Double Wire Fence > High Security Powder Coated Metal Double Wire Mesh Fence Panel

High Security Powder Coated Metal Double Wire Mesh Fence Panel

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

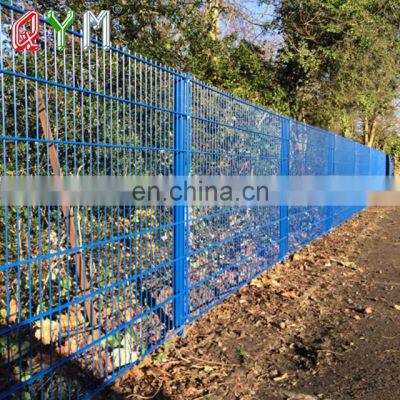

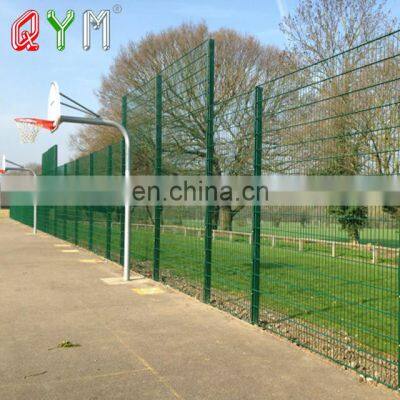

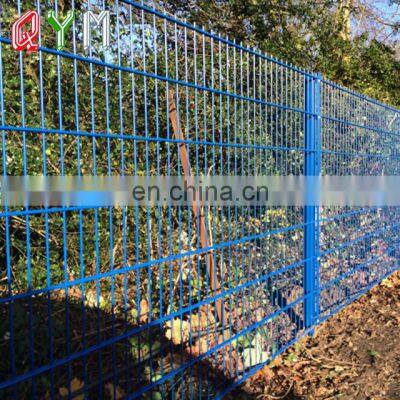

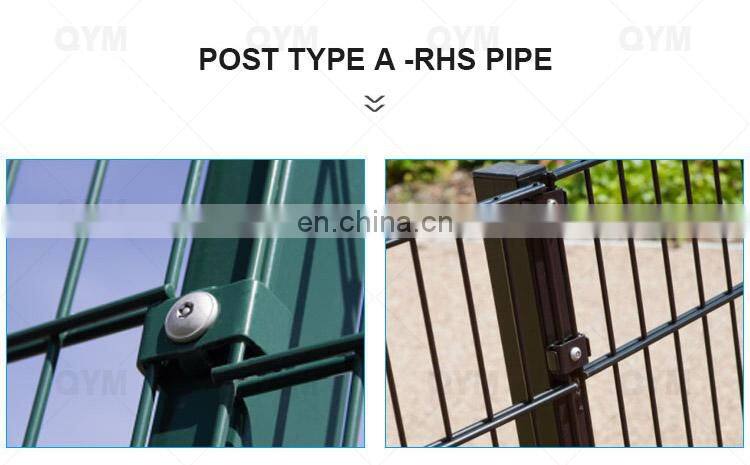

QYM-Double Wire Fence It is a special design fence, which have a double horizontal wire, in this way the fence can be much more stronge, and beautifull looking,The suitable post is made from RHS pipe, connected by steel clamp.

PRODUCT NAME	MESH SIZE	WIRE THICKNESS	COATING	PANEL WIDTH	PANEL HEIGHT	PANEL WEIGHT
DOUBLE WIRE PANEL	50x200 mm 55x200 mm	1xØ5 mm Vertical wire & 2xØ6 mm Horizontal wire	Galvanized and Electrostatic Polyester Coated	2.50 m	0.63 m	9.00 Kg
							0.83 m	11.50 Kg
							1.03 m	14.20 Kg
							1.23 m	16.80 Kg
							1.43 m	19.30 Kg
							1.63 m	21.90 Kg
							1.83 m	24.60 Kg
							2.03 m	27.10 Kg
							2.23 m	29.20 Kg
							2.43 m	31.70 Kg

PRODUCT NAME	MESH SIZE	WIRE THICKNESS	COATING	PANEL WIDTH	PANEL HEIGHT	PANEL WEIGHT
DOUBLE WIRE PANEL	50x200 mm 55x200 mm	1xØ6 mm Vertical wire& 2xØ8 mm Horizontal wire	Galvanized and Electrostatic Polyester Coated	2.50 m	0.63 m	14.60 kg
							0.83 m	18.80 kg
							1.03 m	23.00 kg
							1.23 m	27.10 kg
							1.43 m	31.30 kg
							1.63 m	35.40 kg
							1.83 m	39.50 Kg
							2.03 m	43.70 kg
							2.23 m	48.00 kg
							2.43 m	52.00 kg

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x40mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	On the basis of panel height	Available	Plastic Or metal
80x40mm	2.0mm 2.5mm	Galvanized and Electrostatic polyester powder coated	On the basis of panel height	Available	Plastic Or metal

Profile	Wall Thickness	Surface Treatment	Length	Base Plate	Rainhat
60x90mm	1.2mm 1.5mm	Galvanized and Electrostatic polyester powder coated	On the basis of panel height	Available	Plastic

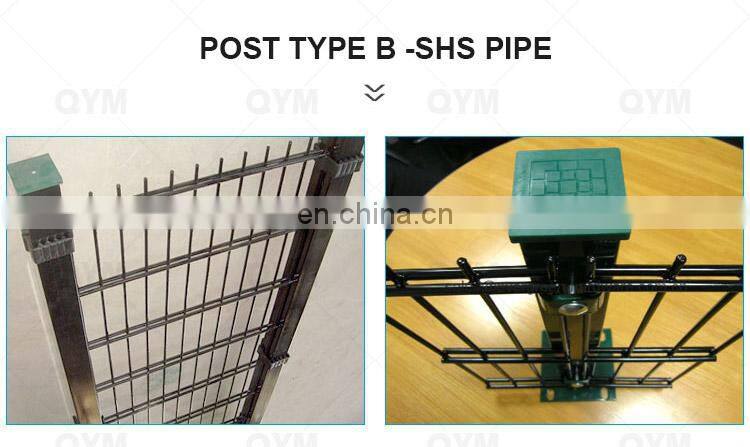

Variations for post:

The posts are available in a range of lengths to accommodatepanel heights and ground conditions. In addition, manyvariations are available: • wall fixing plates, cranked posts or base plated • cranked or straight extensions for barbed or razor wire • cranked panels

Hebei Qianye Metal Product Co.,Ltd is a company engaged in production and exportation of defense barrier,metal fence as well as other metal products.Its registered capital is RMB50,100,000(about USD7,400,000),covering a land area of 30,000 square meters. Since its foundation in 2002,this company has been always adhering to the principle of uncompromising integrity and credibility first in doing things.Through years of production experience,we deeply understand that the qualified product is the factory basis for survival and development.In order to ensure consistency of product quality,our company introduced a fully automatic mesh panel welding equipment,automatic electrostatic spraying production line.as well as advanced welding machines,cutting machines,punching machines and bending machines.

HR is the assurance and competitive strength of the company’s long lasting progress and development.In order to create a wolf team,the company attaches great importance to personnel training and appointment of staff,and we provide abroad platform for our staff to display their own capability! We have first-class product design department responsible for product at each production process and first-class one-to-one sales staff to provide you with efficient services. Hope we can have chance to get a be successful future!

Q: What's QYM's after service policy? A: QYM's after service staff will contact you when you received the products, and ask for your comments on the products. Any issues on QYM's products, please send email or call us. QYM will service you timely with whole-heartedness and profession.
Q: What's the MOQ of QYM's product?
A: Different item has different MOQ. Normally 1X20FCL is preferred, LCL could be negotiable. Q: How can we get the quotation from QYM? A: Please send your inquiry to QYM's official email.
Q: How to be QYM's agent, wholeseller or distributor in my country?
A: Please send your company's basic information and application to my email adress. A feedback will be sent to you within 7 working days.

We making our own Brand QYM and has been exporting the Defence Barrier,Airport Fence,High Security Fence,Palisade Fence and other high grade protective fences to over 100 countries and regions in Europe,America,Africa,Middle East and Australia.From 2015 to 2019, our export of more than one million sets made us an apparent leader in the local barrier industry;and in 2009,we successfully took and completed the orders of concertina razor coils from UN,which perfectly proved our good reputation and our strong production capability.
