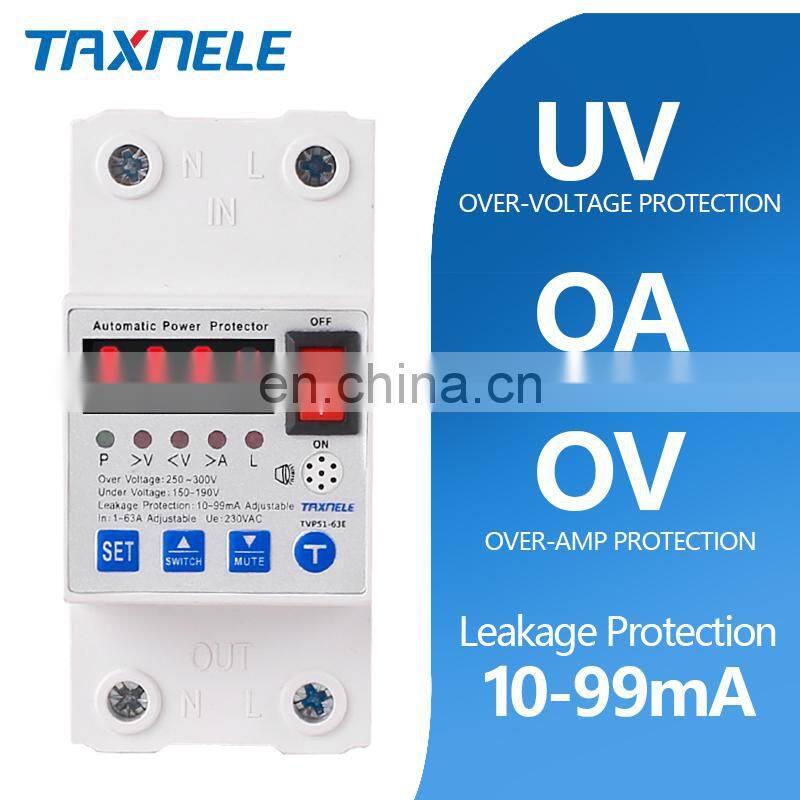

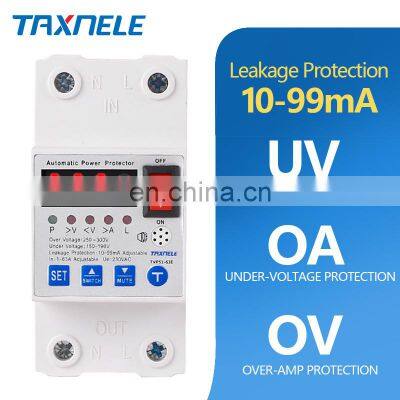

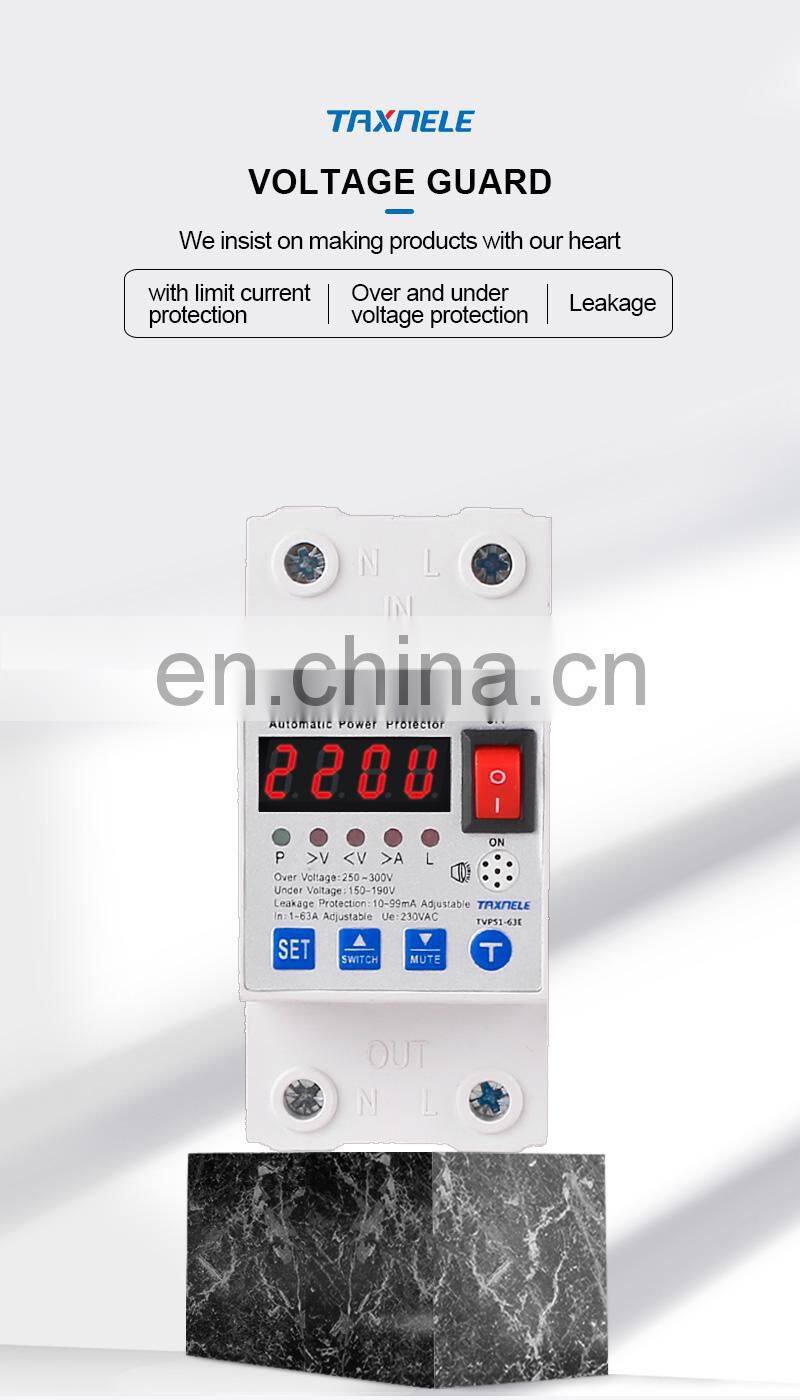

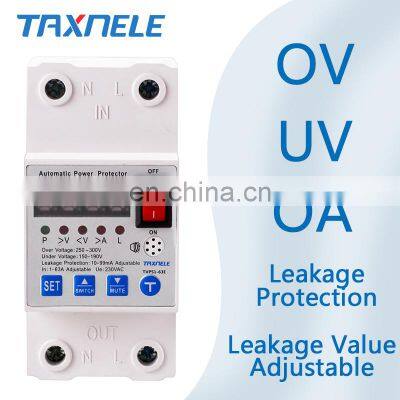

Adjustable Over Voltage Under Voltage Protector Automatic 63A 40A RCBO Lightning Surge Power Leakage Protector

:

When the voltage current is normal the product will Automatic reconnect.

Leakage range: 10~99mA(adjustable)(Default 30mA)  Leakage response time: ≤0.1S

Over voltage range: AC250~300V(adjustable)(Default 270V) Overvoltage response time: ≤0.1S

Low voltage range: AC150~190V(adjustable)(Default 170V) Low voltage response time: ≤0.1S

Over current range: 1~63A (adjustable)  (Default 40A) Overcurrent range response time: ≤0.1S

Short-circuit current: ≥31ln  Short-circuit response time: ≤0.1S

Error in real-time current, voltage and leakage current: ≤5%

1. Purpose

It is intended for a circuit of AC 50Hz/60Hz with maximum rated current of 63A to protect it and the equipment involved against overvoltage, low voltage, current surge, leakage, lightning, etc.

It is applicable to such electrical equipment as communication base stations, repeaters, video surveillance, Safety City, cable TV, digital TV, network switches, optical transceivers, meteorological telemetry stations, seismic detection stations in various conditions.

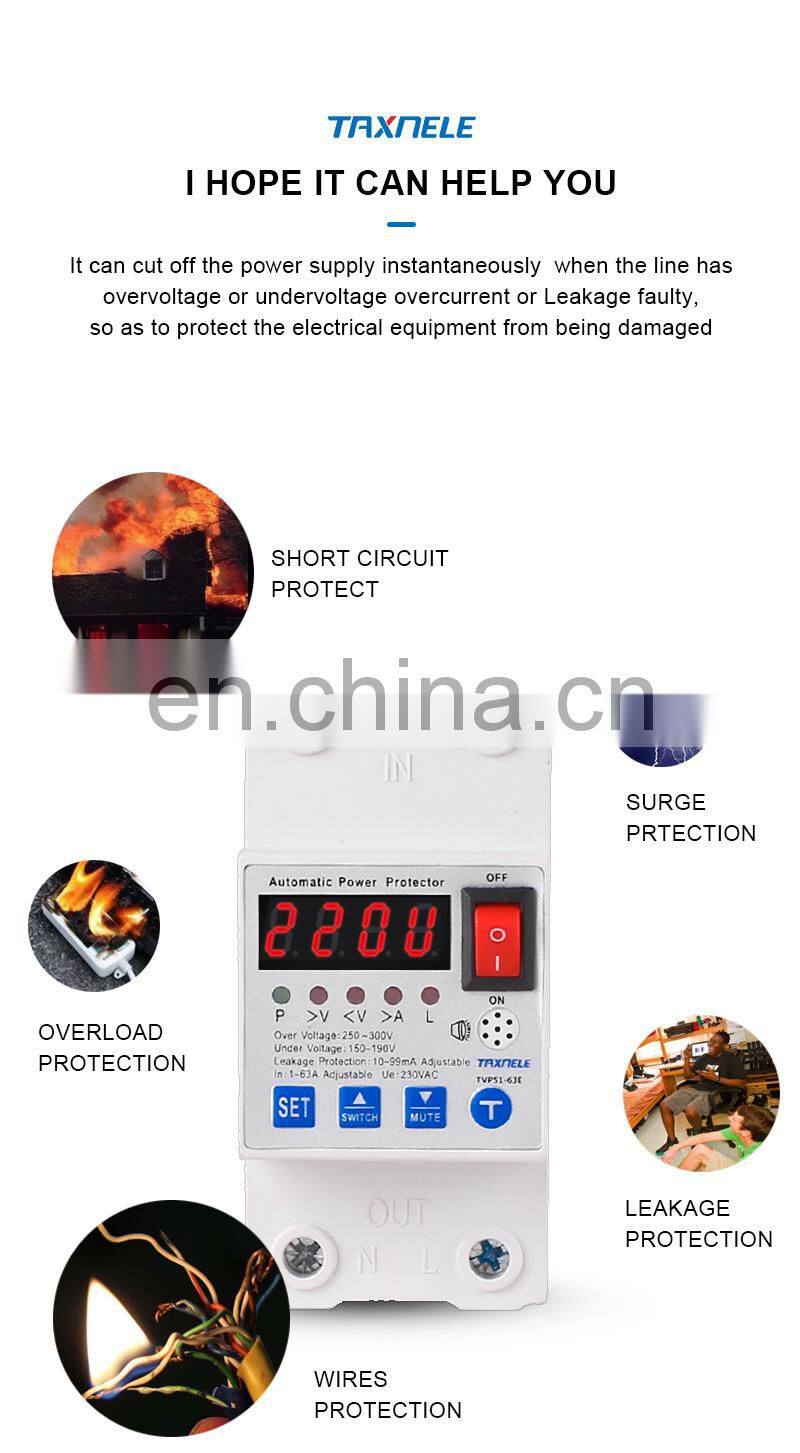

1. Features

Detection before closing: The automatic reclosing power protection switch monitors the circuit and will not close in occurrence of any overvoltage, leakage, overcurrent and other failures.

Overvoltage protection: When the voltage between the live wire and naught wire of the input terminal is greater than the set value, it will trip the switch for protection.

Low voltage protection: When the voltage between the live wire and naught wire of the input terminal is less than the set value, it will trip the switch for protection.

Overcurrent protection: When the actual current is greater than or equal to 1.15 times the rated current for 3 seconds, it will trip the switch for protection.

Leakage protection: When the leakage current exceeds the set value or an electric shock occurs, the automatic reclosing switch will be disconnected within 0.1 seconds to ensure personal safety.

Automatic disconnection when power's off: The switch will be automatically disconnected when the circuit is powered off, and will be automatically reclosed after detecting a normal power supply restored.

Intelligent leakage identification: Automatically detect before closing if the voltage is normal and the Neutral line is well-connected and never close in case of any failure.

Automatic reclosing: Automatically reclose after a certain time interval if the above failure occurs.

Automatically save tripping information: Automatically save such tripping information as tripping time, tripping type (cause), voltage, current and leakage current for failure analysis.

3.Main technical parameters

Rated voltage: AC220V 50Hz/60Hz

Power consumption: <3W

Supply voltage: AC150V~300V

Leakage range: 10~99mA  Leakage response time: ≤0.1S

Overvoltage range: AC250~300V  Overvoltage response time: ≤0.1S

Low voltage range: AC150~190V  Low voltage response time: ≤0.1S

Overcurrent range: 1~63A  Overcurrent range response time: ≤0.1S

Short-circuit current: ≥31ln  Short-circuit response time: ≤0.1S

Error in real-time current, voltage and leakage current: ≤5%

Max. failure records: 999

Working conditions:

Temperature: -20°~55°  Storage temperature: -45°~80°

Humidity: ≤95%Rh  Atmospheric pressure: 70kPa~106kPa

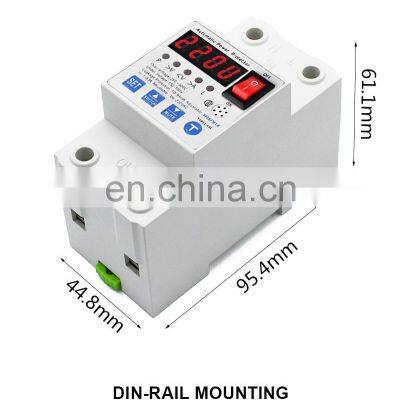

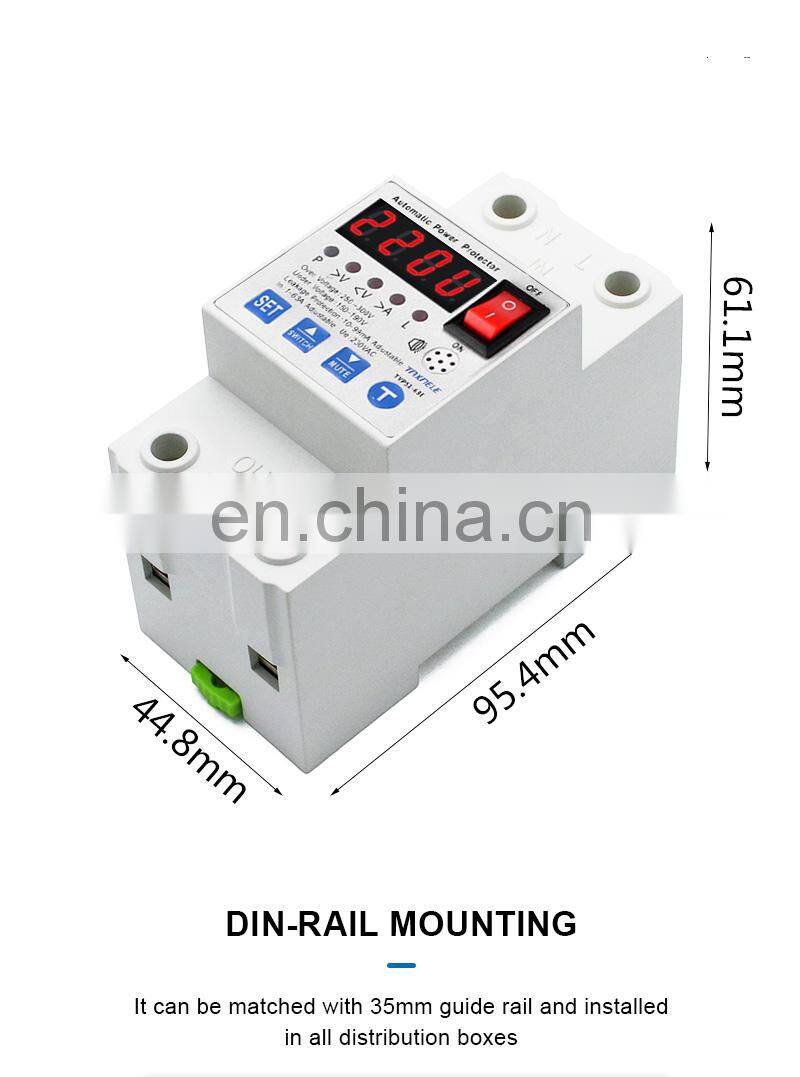

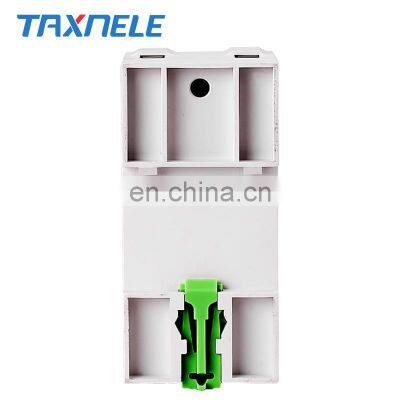

Volume: 106X92X70mm

 Wiring:you don't need to connect to GND, if you don't have GND

Note 1: This switch cannot be used as a master breaker. Please install a miniature circuit breaker as an overload short-circuiting fitting in front of the switch.

Note 2: Please adjust the current after installation.

Note 3: This product is designed without isolation function. Please disconnect the front breaker before repairing the circuit.
