63A 220V Din Rail Adjustable Recovery Reconnect Over and Under Voltage Protective Device Protector Relay Over Voltage Protection

Parameter

Functions: 1.Over-voltage protection

2.Under-voltage protection

3.Automatic recovery

4.Voltage display(voltage measurement)

5.Voltage Correction

Product Parameters:

1.Model number:TVPS1-40A TVPS1-63 A

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:40A/63A

4.Over-voltage protection value range:230V~300V -OFF Over-voltage recovery voltage range:225V--295V Over-voltage protection action time:0.1s~30s(default value:0.5s) Over-voltage r ecovery delay time:1s~500s(default:30s)

5.Under-voltage protection value range:140V--210V --OFF(default:170V) Under-voltage recovery voltage range:145V--215V (default:190V) Under-voltage protection action time:0.1s~30s(default:0.5s) Under-voltage r ecovery delay time:1s~500s(default:30s)

6.Power-on delay time:1s~500s

7.Power consumption : <2W

8.Electric machinery life : 100,000 times

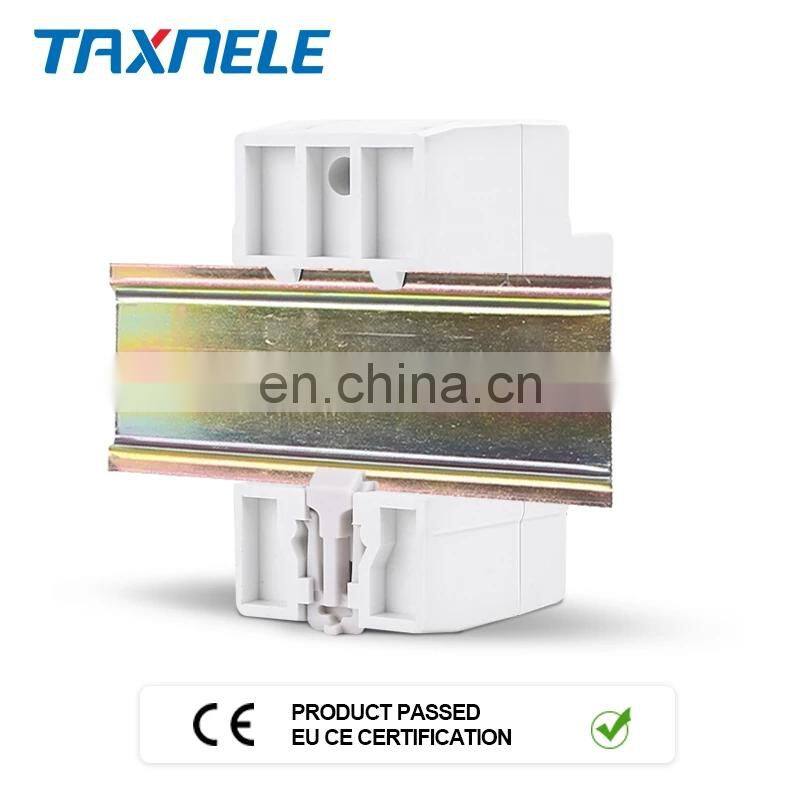

9.Installation:35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 second( Power-on delay time:1 s~50 0s(default:10 s)), after the red light turn off, then the product will work.
