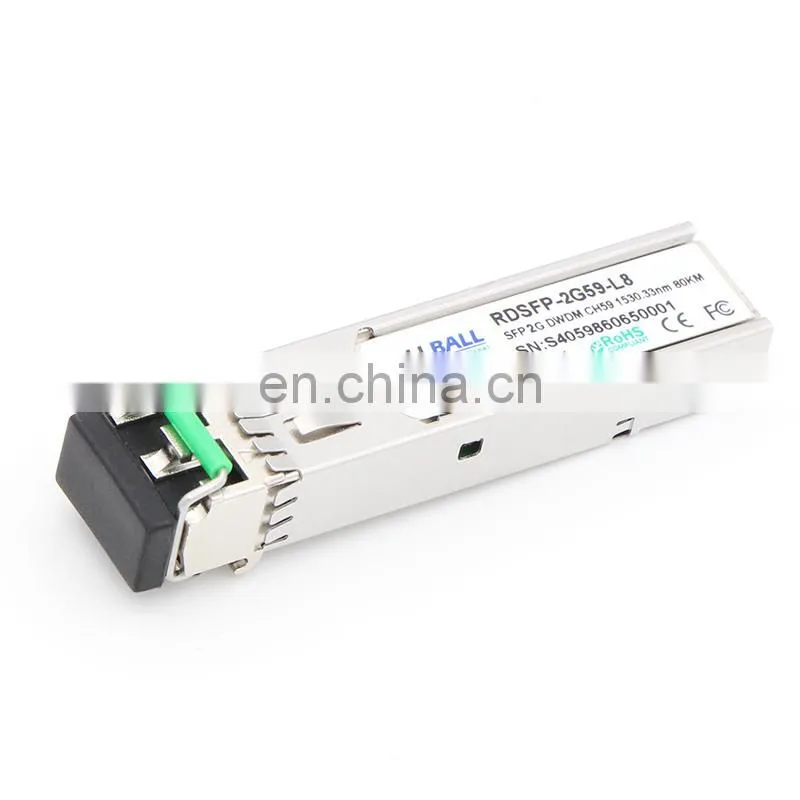

High quality 2.5Gb/s DWDM sfp module 100GHz CH17-CH61 sfp dwdm optical transceiver

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

DWDM 2.5Gb/s 100GHz CH17-CH61 fibe optical transceiver compatible Cisco finisar 3com

Description

* Rollball DWDM SFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for DWDM SONET/ SDH, Gigabit Ethernet and Fiber- Channel applications.

* The transceiver consists of two sections: The transmitter section incorporates a colded DFB laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Rollball DWDM SFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage, laser temperature and TEC current.

Main Feature

* Wavelength selectable to C-band and L-band ITU-T grid wavelengths

* Suitable for use in 100GHz channel spacing DWDM systems

* DWDM SFP MSA Compliant

* Up to 2.5Gb/s data rate

* Cold Start up Wavelength Compliance

* Diagnostic Performance Monitoring of module temperature, supply

* Voltages, laser bias current, transmit optical power, receive optical power,

* Laser temperature and TEC current

* Extended link budget with APD receiver technology

* OC48/STM-16 Long Reach 80km(1600 ps/nm), 120km(2400 ps/nm) Versions

* RoHS compliant and lead freeOperating temperature: commercial (0°C to 70°C) and industrial grade (-40°C to 85°C);

Applications

* SFP Transceivers for DWDM SONET/ SDH

* Ethernet IEEE 802.3ae

* Fiber Channel

Ordering List

P/N	Parameters
RDSFP-48XX-L8	DWDM SFP-2.5G CH17~CH61 80km
RDSFP-48XX-12	DWDM SFP-2.5G CH17~CH61 120km
