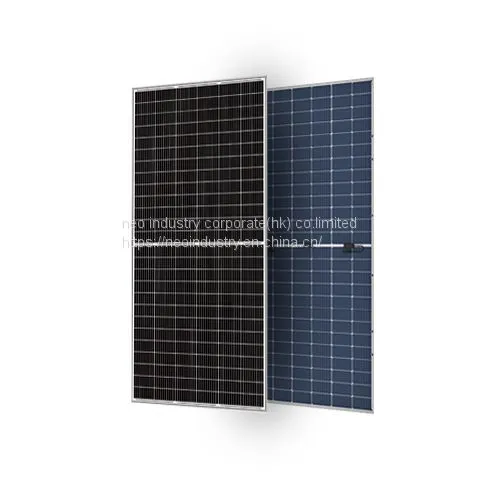

435W-450W 78 Cells 9BB 158.75MM Half-cell High Efficiency Module

FOB Price

Negotiable / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price

Product Description

Product Name:

435W-450W 78 Cells 9BB 158.75MM Half-cell High Efficiency Module

Product Description:

Assembled with multi-busbar PERC cells,the half-cell configuration of the modules offers the advantages of higher power output,reduces BOS cost effectively;

Special half-cell design reduces the energy loss caused by shadows,better anti-shading performance;

Lower hot spot risks due to half-cell layout,offers an additional level of safety;

1500V DC voltage of the system,reducing the cost of the system side;

The overflow tank is waterproof with double layers,and the cross section contains hooked aluminum frame,which enhances the mechanical load strength by 10%;

Passed the certification test of 5400 Pa snow load and 2400 Pa wind load;

Product Introduction:


Cell Type	Mono Crystalline 158.75x79.375mm
Number Of Cells	156（6x26）
Dimensions(AxBxC)	2198x1010x30mm
Weights	29kg
Front Glass	3.2mm Tempered Low Iron Glass
Frame	Clear Anodized Aluminum Alloy
Junction Box	IP68,with Bypass Diodes
Connector	Mc4 Compatible
Output Cables	Tuv,±length 900mm,4.0mm²
