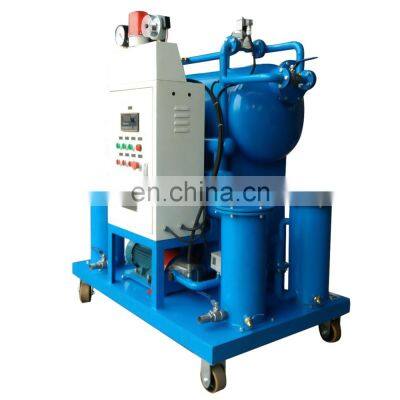

Portable Transformer Oil Filter Machine/ Transformer Oil Processor

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

ZY Series Portable High Vacuum Insulating Oil Purifier

Item			Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150
Flow rate			L/min	6	10	20	30	50	10	150
Vacuum degree			MPa	-0.06～-0.095
Working pressure			MPa	≤ 0.4
Temperature range			℃	20 ～ 80
Normal working hour			H	≥ 4000
Continuous working			H	150
Power supply				380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise			dB(A)	60	61	63	70	70	75	70
Heating power			kW	9	11	13	15	30	48	58
Total power			kW	9.7	12.5	14.5	16.5	33.5	53	65
Oil outlet/inlet			mm	φ20	25	φ25	φ25	φ32	φ42	φ50
Weight			Kg	150	230	250	270	300	500	700
Size	L	mm	970	1050	1100	1150	1200	1600	1600
		W	mm	630	750	850	900	950	1000	1100
		H	mm	900	1300	1400	1450	1500	1800	1800
Index after purifying	Breakdown voltage	kV	≥70
		Moisture content	PPM	≤5
		Gas content	%	0.1
		Impurity size	μm	≤1 (customizable)
		Value β	%	96

It is mainly used for the treatment of insulating oil such as aging transformer oil, mutual inductor oil, switch oil, and cable oil in power transmission and transformation equipment, power departments and mining enterprises. It can quickly and effectively remove moisture, gas,impurities, etc. from the oil, and restore the dielectric properties of the insulating oil.

1. High-efficiency new electric heating system, low heating load, uniform heating and low energy consumption.
2. Multi-stage precision filtration system, impurity removal technology combining molecular adsorption filtration and mesh filter element.
3. This equipment is of high-efficiency type, with a three-dimensional multi-stage vacuum analysis system, and the efficiency is 3-5 times higher than that of ordinary vacuum oil filter. It can efficiently remove the moisture, gas and mechanical impurities in the insulating oil, improve the oil's compressive strength and oil quality, and ensure the safe operation of power equipment. It also has a vacuum oil injection function.
4. Adopt automatic infrared liquid level control system, automatic constant temperature control system, automatic defoaming control system, automatic pressure protection system, automatic chain protection system and high-efficiency degassing and water removal system to ensure safe and high-performance operation of the equipment.
5. Novel design, compact structure, convenient operation, online oil filtering, unattended, and can be used in any environment.
6. With automatic detection of pressure resistance, oil pressure resistance and printing test results (ZYA series).
7. Can be used together with BZ regeneration device, can effectively remove acid, decolor, remove free carbon, and reduce dielectric loss function (ZYB series).

Related Products

1.ZY series vacuum transformer oil purifier
2.ZYA series vacuum automatic transformer oil purifier
3.ZYB series vacuum transformer oil regeneration purifier
4.ZYD series double-stage vacuum transformer oil purifier
5.ZYD-I series ouble-stage transformer oil regeneration purifier
6.ZYD-M series trailer-mounted transformer oil purifier
7.TY series vacuum turbine oil purifier

8.TYA series vacuum lubricating oil purifier
9.TYB series coalescence-separation oil purifier
10.TYC series vacuum lubricating oil regeneration purifier
11.CYA series centrifugal oil purifier
12.TPR series waste engine oil recycling system
13.PL series plate and frame oil filter press
14.JL series portable oil purifier
15.BZ series transformer oil regeneration device

MOQ	1 Set
Trade Terms	EXW, FOB, CIF, CFR
Payment Terms	T/T, L/C
Port of Loading	Any Port of China
Packing Method	Internaional Standard Wooden Case
Transportation Method	By Sea, By Land, By Air, By Express
Supply Capability	100 Sets/Month

* The warranty period is 24 months from commissioning acceptance date on. After the warranty period is over we provide lifelong maintenance and technical service.
* We guarantee the maintenance time no more than 3 working days and response time within 1 hour.
* We build instrument service profile for our clients to record the product service and maintenance conditions.
* After instruments start service, we will pay follow-ups to collect the service conditions.
