Home > Products > Environmental Testing Machine > laboratory equipment two zone low temperature impact Thermal Shock test cabinet

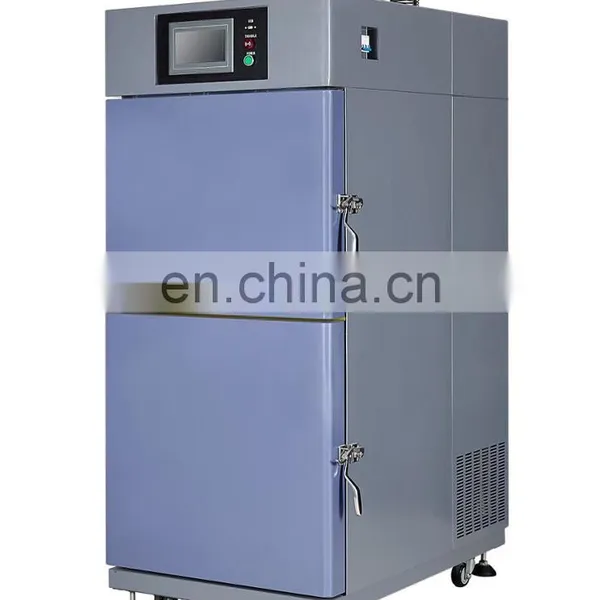

laboratory equipment two zone low temperature impact Thermal Shock test cabinet
- 1000 per Month
- T/T Credit Card
- IEC60068 standard climatic temperature and humidity test damp testing
- Standard Damp Heat Humidity thermal cycle Hot and cold cycles test climate testing price
- standard environmental Walk in Temperature &humidity testing Climatic Test cabinet
- Two zone hot impact testing cryo chamber
- IEC60068 Standard heat temperature humidity cycles Damp chamber climate chamber big size steam chamber
- Two zone high and low temperature shock testing cabinet customized tester chamber machine
Product Description
Two zone thermal shock test chamber consists of a high temperature zone and a low temperature zone. The test samples are sent to the high temperature zone and the low temperature zone through the basket to achieve the rapid temperature impact.
RTS-50 |
RTS-80 |
RTS-100 |
RTS-150 |
RTS-200 |
RTS-300 |
RTS-480 |
||
System |
(BTC) Balanced temperature control system |
|||||||
High temperature zone |
+60℃~200℃ Optional |
|||||||
Preheating time |
+60℃~200℃ About 20 minutes |
|||||||
Low temperature zone |
-55℃~10℃, -70℃~10℃, -80℃~10℃ |
|||||||
Precooling time |
+20℃~-55℃ 60 minutes, +20℃~-75℃ 75 minutes, +20℃~-80℃ 90 minutes, |
|||||||
Recovery time |
Within 5 minutes, heat exposure 30 minutes, low exposure 30 minutes, |
|||||||
Transfer time |
Within 10 seconds |
|||||||
Temperature flucturation |
±1.0℃ |
|||||||
Temperature deviation |
≤±2.0℃ |
|||||||
Interior dimension(cm) |
W |
40 |
50 |
55 |
68 |
68 |
80 |
80 |
H |
40 |
40 |
45 |
45 |
50 |
50 |
55 |
|
D |
32 |
40 |
40 |
50 |
60 |
75 |
93 |
|
Test weight (KG) |
3.5 |
5 |
5 |
5 |
10 |
12 |
15 |
|
Interior material |
SUS#304 Stainless steel plate |
|||||||
Exterior material |
Backed paiting steel or stainless steel(SUS304) |
|||||||
Insulation material |
Rigid polyruethane foam +glass fibre |
|||||||
Floor bearing load |
500Kg/m3 |
|||||||
Refrigeration system |
Air cooled (Water cooled type is option) |
|||||||
Cascade type, hermetic/semitight compressor,CFC free refrigerant |
||||||||
Controller |
Color LCD screen in English/Chinese, programing,communicating function |
|||||||
Safety devices |
No welding wire switch,compressor overheating and over current protection,over temperature protection, blower overload protection,dry heating machine protector,low water protection,fault warning system. |
|||||||
Power |
AC380±10% 50HZ 3 phase 4 wires+ground wires |
Touch screen controller displays temperature curve, language can be changed to English.

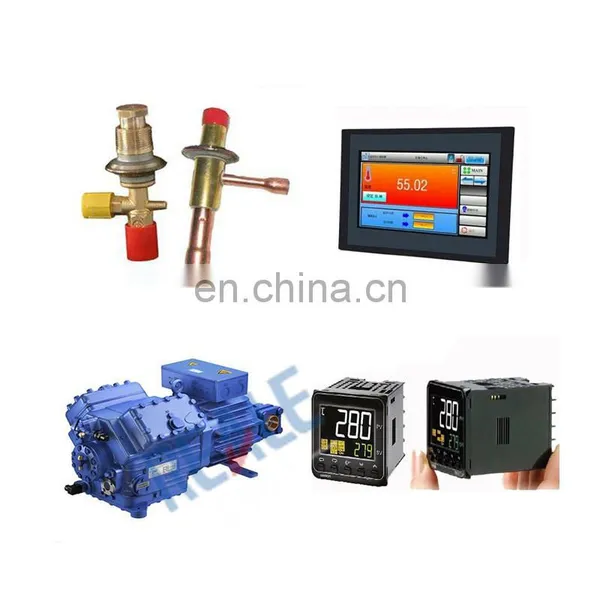

With advanced design style and high-end technical concept, we will create environmental testing equipment with beautiful appearance, outstanding performance, energy saving of 25% and life expectancy of over 15 years. The core components are imported from France Schneider Electronic Materials and Taiwan Yangming. The products have successfully passed the national ISO9001 quality certification, and dozens of series of nearly 100 kinds of products and non-standard products can be selected. Compared with other similar brands, the quality, performance and price are the leading advantages. At present, the environmental test equipment of the factory is testing and achieving good sales performance at home and abroad.
Equipment installation projects
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. If customers require on-site service, the transport and travel expense shall be borne by customer.
Pre-service
--24 Hours online service for your consult.
--Help choose right model,and a series of service,person,advise.
Middle service
--Give you best offer
--Provide discount for many sets order
--Do customer's request:
--Choose payment term you convienent.
--Promptly production and delivery,inform you in time.
--Can provide invoice value as you like to decrease your tax.
After sale service
--1 year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Free change for some parts
--Remote control technical consult
--Free installation DVD
--Maintenance plan
