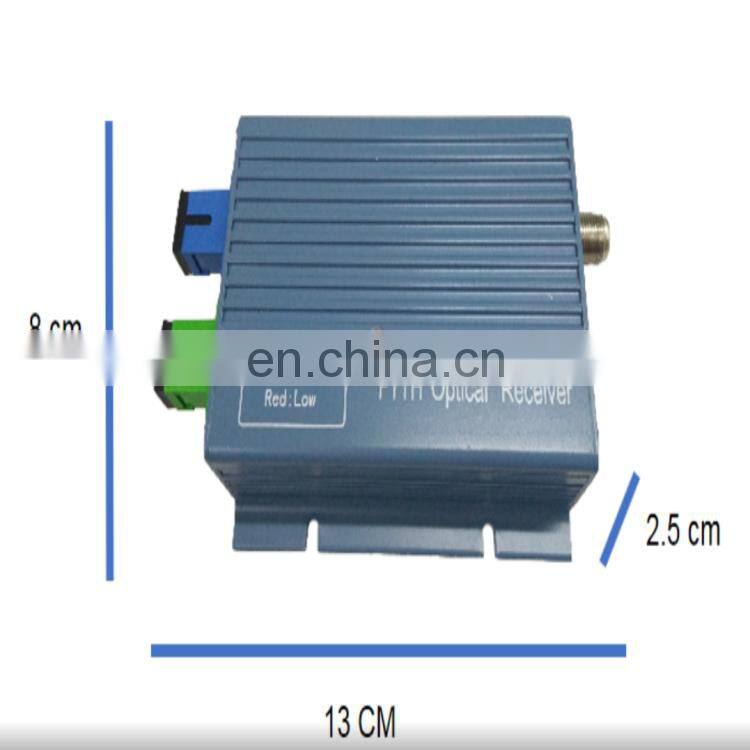

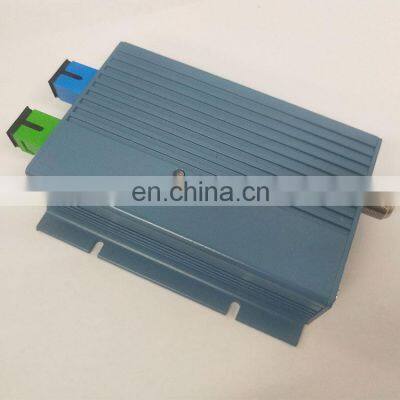

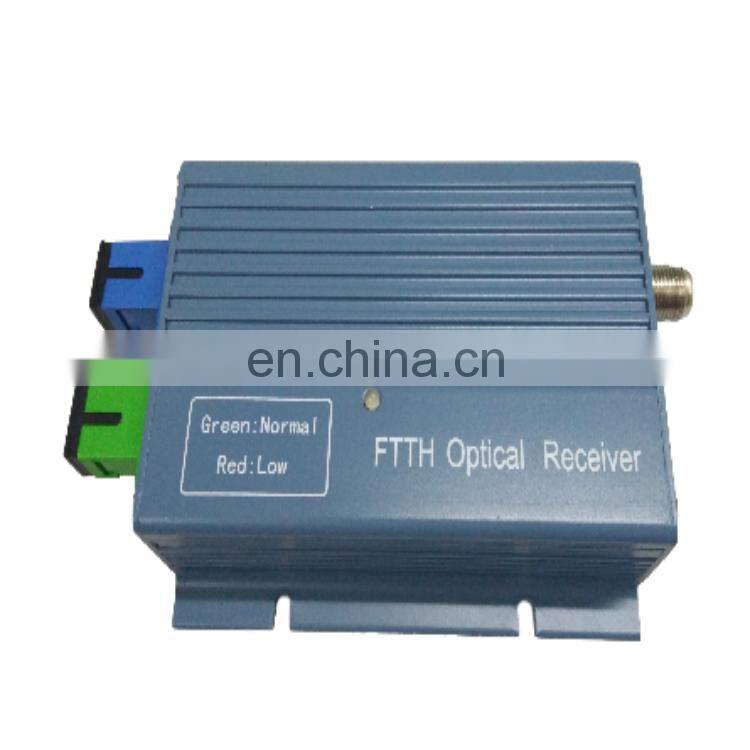

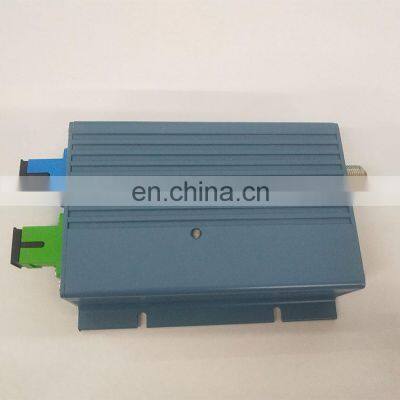

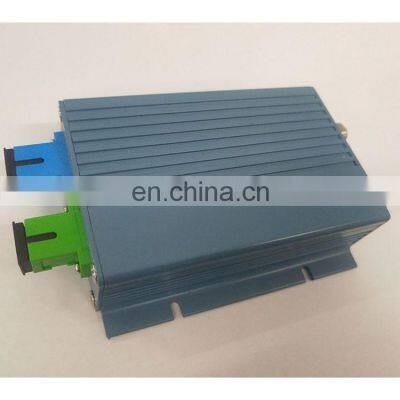

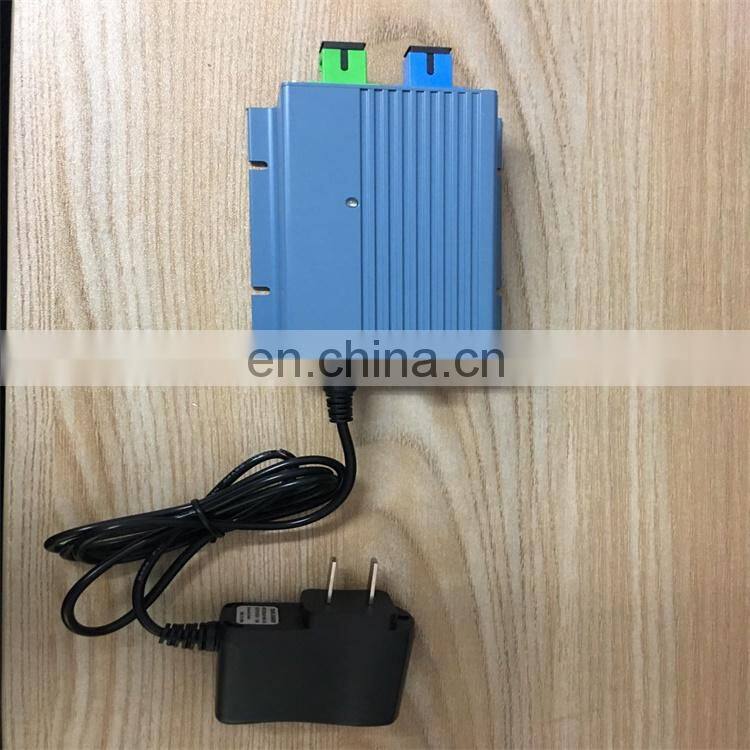

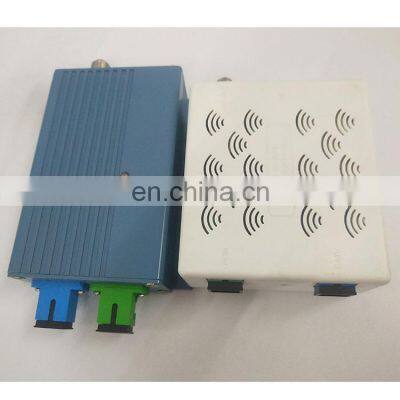

Low Price Indoor Catv 2 Input Active Agc Ftth Mini Optical Node Receiver With Wdm
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1310nm 1550nm Internet Fiber Optic Ftth Catv Optical Receiver Node With WdmNegotiableMOQ: 1 -
in Stock 1550nm Internet Dual Output 2 Way Satellite Mini Agc Catv Fiber Node Wdm Optical ReceiverNegotiableMOQ: 1
-
Fiber Optic Equipment Cable tv Active Satellite Mini Ftth Agc Optical Receiver Catv Node With WdmNegotiableMOQ: 1
-
1550nm Or20 Or33 2 Port tv Ftth Pon Amplifier Optical Node Catv Receiver for Catv RoomNegotiableMOQ: 1
-
1550nm 1000mhz Fiber Optic Equipment Mini Optic Wdm Agc Ftth Node Catv Optical Receiver With 2RF OutputNegotiableMOQ: 1
|
Item |
Unit |
Technical parameter |
|
|
|
YT—8684 |
|
Optical parameter |
||
|
Input power |
dBm |
-15~+2 (maxim -18dBm) |
|
Optical emission loss |
dB |
>45 |
|
Wavelength |
nm |
1100~1600 |
|
Optical connector type |
|
FC/APC or SC/APC etc. |
|
Link parameter |
||
|
(C/N) |
dB |
≥50 |
|
(C/CTB) |
dB |
≥65 |
|
(C/CSO) |
dB |
≥63 |
|
RF parameter |
||
|
Frequency range |
MHz |
45~1100 |
|
Flatness in band |
dB |
±0.5(45-550MHz);±0.75(550-750/862/1000MHz) |
|
Output level |
dBμV |
65~85(±10 dBμV) |
|
Return loss |
dB |
≥ 14 |
|
Impedance |
Ω |
75 |
|
WDM wavelength |
nm |
1550/1490/1310 |
|
AGC (Optional) |
dBm |
-10 ~ 0 (Default Setting) |
|
|
dBm |
-12 ~ -2 |
|
|
dBm |
-15 ~ -5 |
