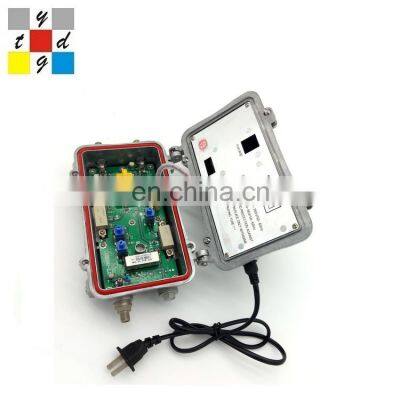

860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node photo-2

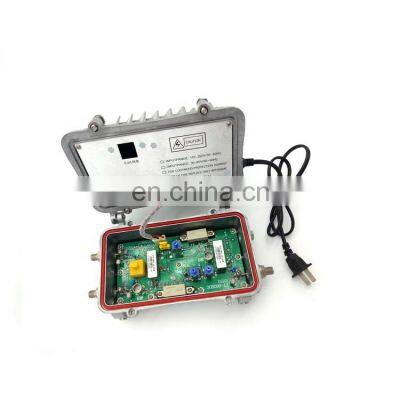

860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node photo-3
860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node photo-4

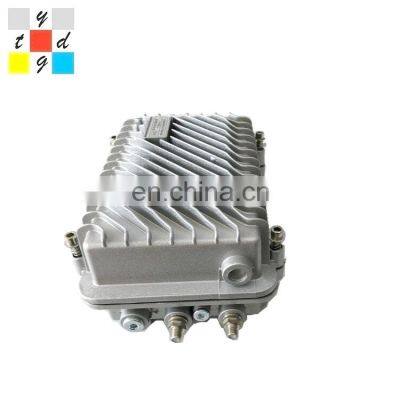

860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1998
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Offer

860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node

Specification

Input optical wavelength
nm
1100-1600
Output port

Four output
Operation bandwidth
MHz
47~1000
Optical connector

FC/APC or SC/APC
Optical power receiving range
dBm
-8~+2(-3dBm is better)
Reflection loss
dB
≥60
Flatness In band
dB
±0.75dB
Output level
dBμν
≥112
C/N
dB
≥51
CTB
dB
-66
CSO
dB
-63
Output reflection loss
dB
≥16(47-550MHz)
≥14(550-1000MHz)


Output Impedance
Ω
75
Input Voltage Range
V
AC110~260 or 35~70
Power Consumption
W
Four output:17~20
Dimension
mm
Four output:330×230×130
Receiving optical power(dBm)
-9
-8
CNR(dB)
47
48
--
Fiber to Building
FTTZ
CTB
-66dB

CSO
-63dB

Output level(99CH)
106dBuv(@-3dBm power receiving)

Flatness in band
±0.75dB


860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node860Mhz 1000Mhz Outdoor Ftth Optical Node Agc Function 4 Way Optical Node
