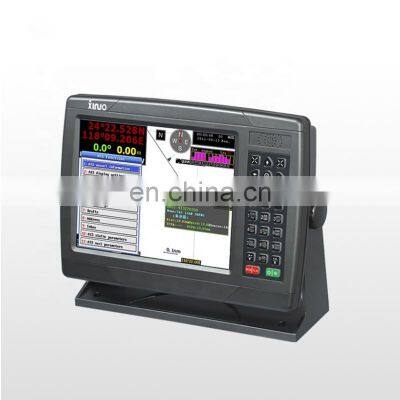

Marine electronics navigation communication XINUO XF-1069B 10.1'' GNSS nautical GPS chart plotter class b AIS transponder combo

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment Terms:T/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Please contact me before purchasing for the shipment and real product price and detailed configuraiton

If you want to make bulk purchase or be our agent, please contact with us

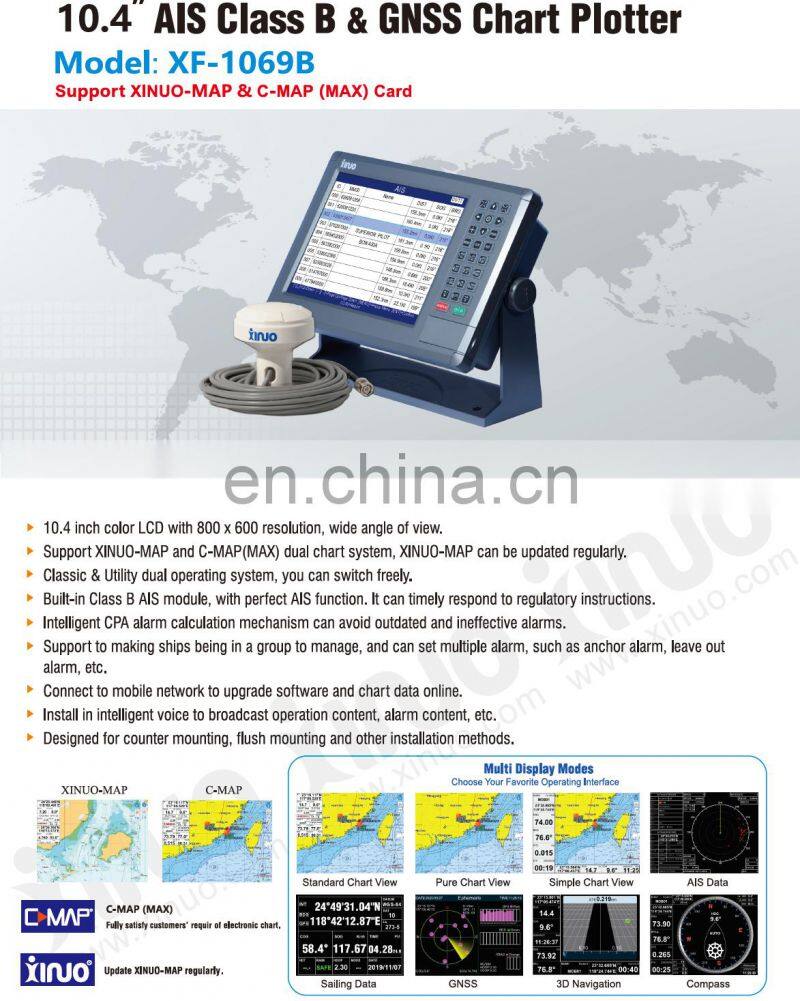

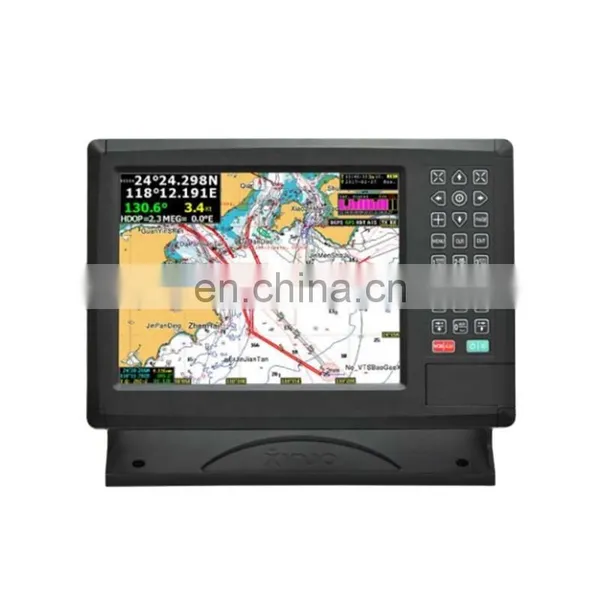

10.4” Color LCD with 800 x 600 resolution, high brightness and wide angle of view.

Accurate and detailed chart data with official bridge alarm function.

Fully support AIS function, display AIS targets dynamically on the chart.

Multi-languages support and many display modes options.

Built-in global chart, upgrade the chart regularly and with free of charge.

Floating GND power design, more stable and reliable.

Conform to IPX5 water-proof standard.

Display unit	XF-1069B
Display Type	Color TFT LCD
Display Size	10.4 inch
Display Resolution	800 × 600 pixels (SVGA)
Display Brightness	400cd/m²
Language	English, Simplified Chinese, Traditional Chinese,
Memory Capacity	6000 waypoints; 10000 marks; 800 tracks; 200 routes (48 points each route);

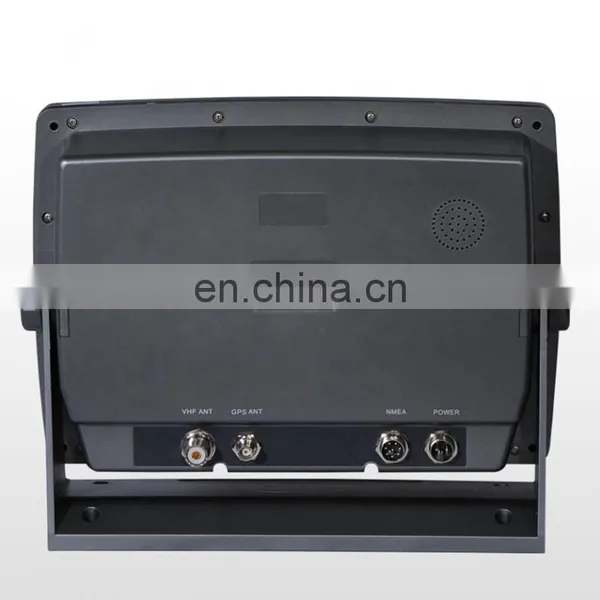

Interface	0183 Output 1 Ports, AIS Output 1 Ports, 0183 Input 2 Ports
Chart	XINUO Chart
Power Supply	DC10V-36 V
Enviromental
Working temperature	-15℃~+55℃
Storage temperature	-20℃ ~ +60℃
Waterproofing	IPX5
AIS Receiver
Frequency	156.025MHz ~ 162.025MHz
Bandwidth	25kHz
Modulation	GMSK / FM
Data Rate	9600 bps
Number of AIS transmitter	1
Number of AIS Receiver	2 (Contains A and B channels)
AIS Channel A	CH87B(161.975MHz)
AIS Channel B	CH88B(162.025MHz)
Output Power	2 W
Rx Sensivity	< -107 dBm @ 20% PER
GNSS Performance
GPS Receiver	22 tracking channels/ 66 receiving channels (Support WAAS/EGNOS/MSAS/GAGAN)
Receive Frequency	L1 (1575.42 MHz)
Time to First Fix	Less than 39 seconds (Cold start)
Tracking Velocity	999 knots
Coordinate Systems	WGS-84 (and others)
Accuracy
GPS	Position: < 15 meters, 95% typical Velocity: 0.1knot RMS steady state
DGPS (USCG/RTCM)	Position: 3~5 meters, 95% typical Velocity: 0.1 knot RMS steady state
DGPS (WAAS)	Position: <3 meters, 95% typical Velocity: 0.1 knot RMS steady state
Standards
IEC 62287-1 Ed. 2, 2010; IEC 61108-1 Ed. 1, 2003 IEC 61162-1 Ed. 3, 2007; ITU-R M.1371-4, 2010 IEC 60945 :2002 EMC related items ETSI EN 301 489-1V1.8.1:2008 EMC related items IEC 60950-1:2006 ETSI EN 301 489-3 V1.4.1:2002 EMC related items IEC 60529:2006 EMC related items ETSI EN 300 440-2 V1.4.1:2010 Spurious related items ETSI EN 300 440-1 V1.6.1:2010 Spurious related items
