Large Capacity Coal Charcoal Powder Briquette Making Machine Price
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Association
Year Established:
1999
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Performance Charcoal Fines Mill Scale Ball Making MachineNegotiableMOQ: 1 -
High Efficiency Iron Oxide Briquette Forming Machine Aluminum Powder Briquetting Press MachineNegotiableMOQ: 1
-
Briquette Making Machine for Charcoal Powder Mill ScaleNegotiableMOQ: 1
-
Pillow Shape Coal Charcoal Powder Briquette Making MachineNegotiableMOQ: 1
-
High Quality Coal Briquetting Machine With CE & ISO9001 CertificateNegotiableMOQ: 1
Products Description

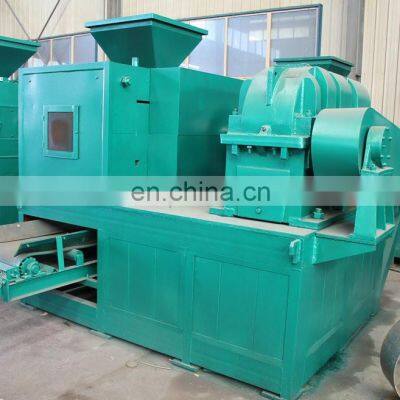

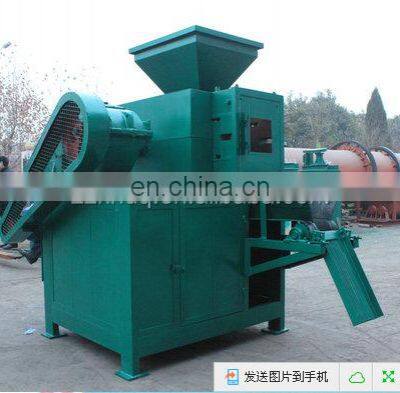

Briquetting Machine

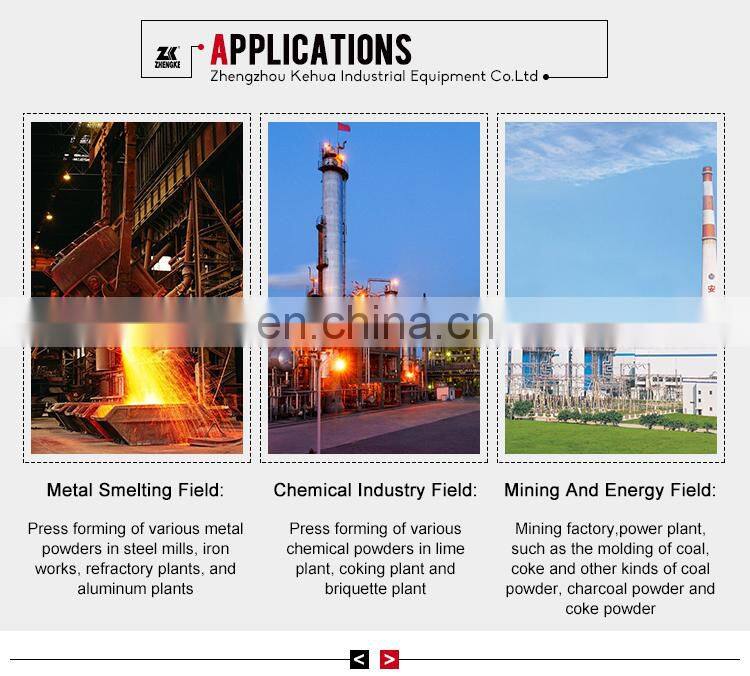

Briquetting machine is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines cast iron fines, mill scale, manganese ore fines, phosphor gypsum powder and other material fines into briquettes. These briquettes can be designed of round ball shape oval shape, elongated shape, square shape etc. This machine is widely used in coal industry and metallurgy industry. We can design and manufacture the briquetting machine with hydraulic system based on customers' demand.
Model | Roll diameter (mm) | Capacity (t/h) | Power (kw) | Briquettes shape and size |
ZKBM 290 | 290 | 1-3 | 5.5 | |

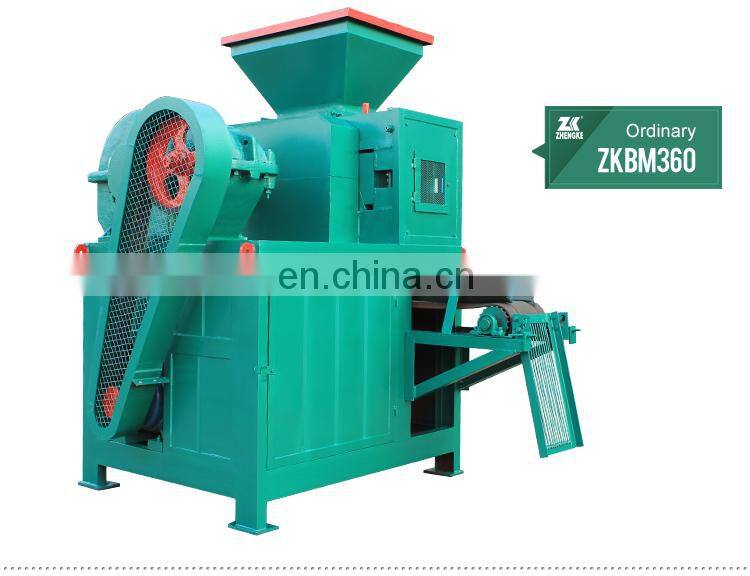

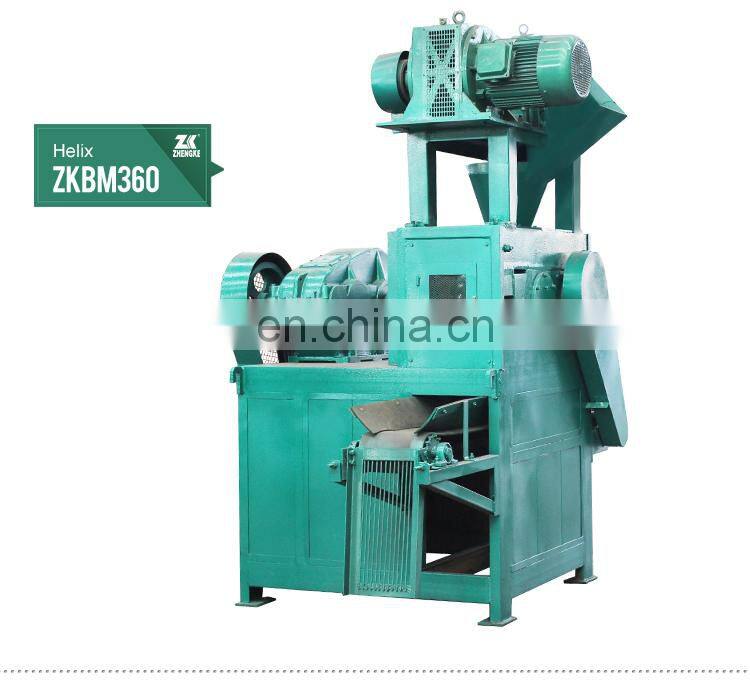

ZKBM 360 | 360 | 4-6 | 11-15 | |
ZKBM 430 | 430 | 5-8 | 15-18.5 | |

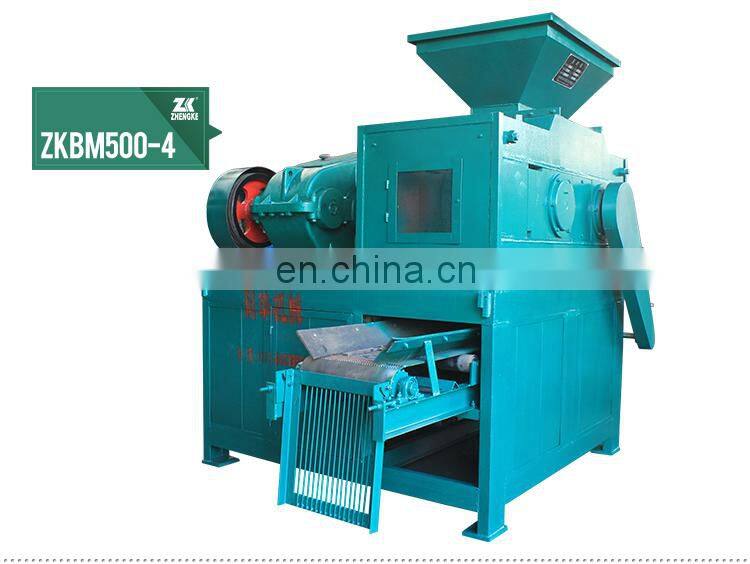

ZKBM 500 | 500 | 6-12 | 18.5-55 | |
ZKBM 650 | 650 | 10-15 | 37-55 | |

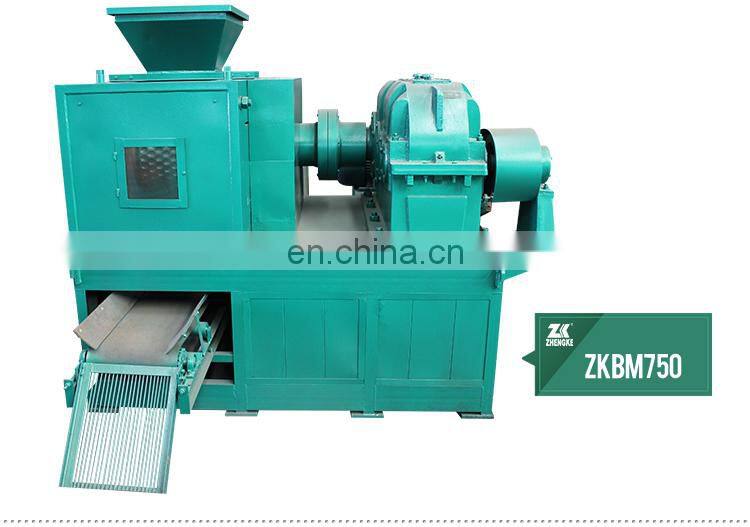

ZKBM 750 | 750 | 15-20 | 55-110 | |
ZKBM 850 | 850 | 20-25 | 75-132 | |

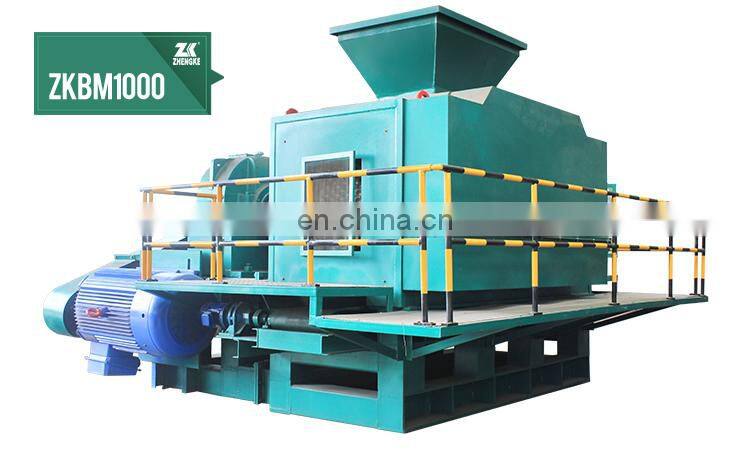

ZKBM 1000 | 1000 | 25-30 | 90-160 |
Details Images

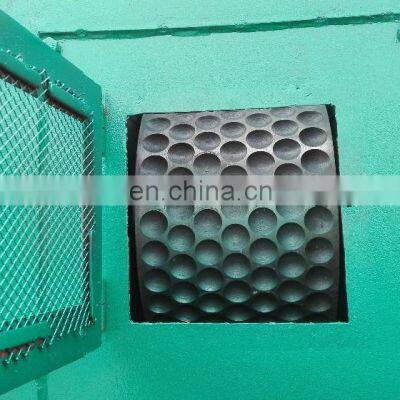

Roller
It’s the main part to press the material into briquettes. The roller adopt high-quality manganese steel materials(65Mn/9Cr2Mo), greatly improving the wear resistance and pressure ability, make the hydraulic briquette machine has a long service life, has been widely used in recent years.

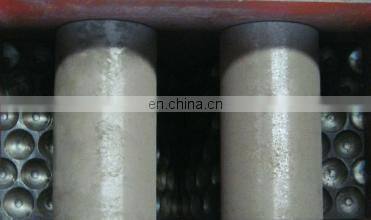

Pre-Pressing Device

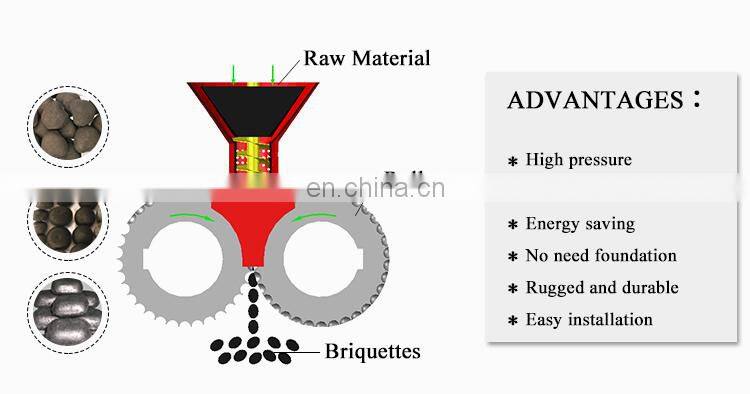

This device preloads the material, making the material more compact and increasing the briquetting ratio.

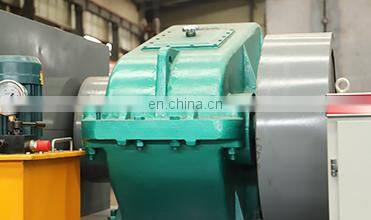

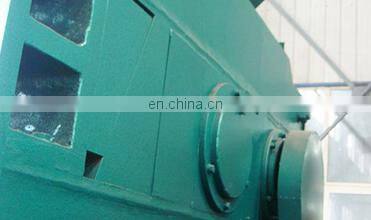

The reducer is one of the most important parts of briquette machine, which plays an important role in the work of machine and directly affects the output of briquetting machine.
1. Oblique iron
2. Main axle
3.Auxiliary shaft
Why Choose Us
Certifications
About Us

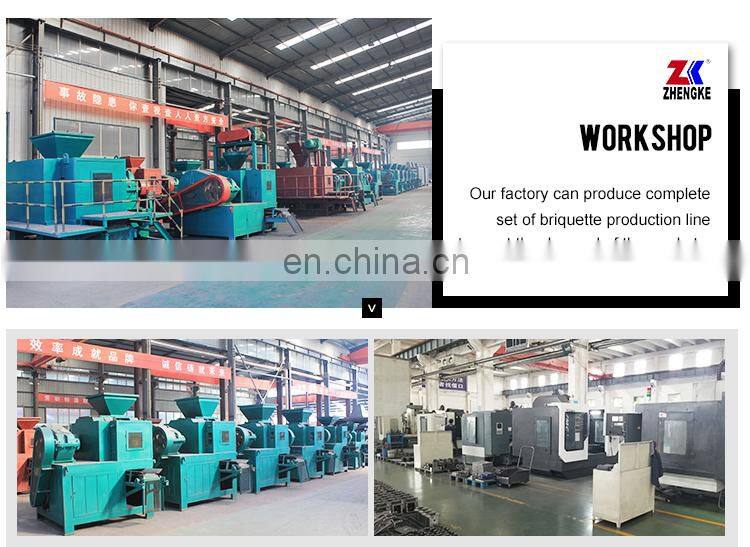

Zhengzhou Kehua Industrial Equipment Co., Ltd. is a trustworthy and specialist designer and manufacturer with more than 30 years of producing drying machine,briquette machine etc.
1.The company set up special research and development department to update the products.
2.The company cooperates with well-known domestic universities to jointly develop new energy-saving briquetting equipment.
3.The company invites well-known experts in the industries to jointly develop new type of equipment.
4.The company spends 10% of the sales revenue on product research and development every year.
5.The company attached great importance to the cultivation of talents and rewards those who have research and development capabilities.
6.The company guarantees no less than 10 patented products per year.

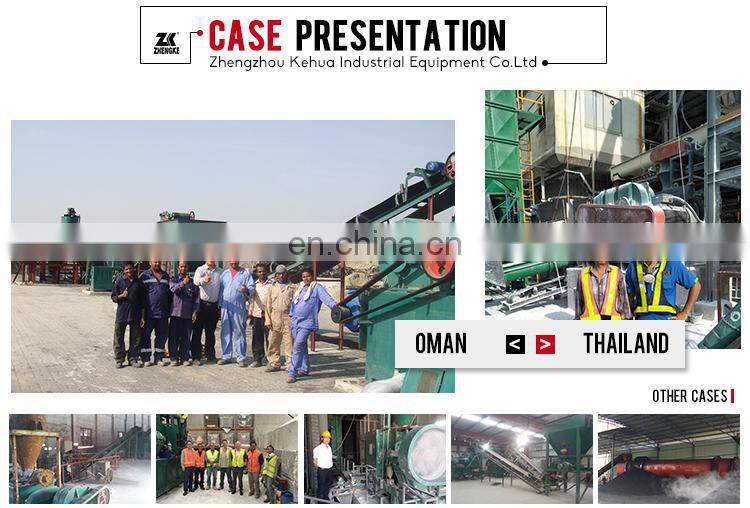

The products are widely sold in over 20 provinces and regions in China and exported to India, Malaysia, Vietnam, Philippines, Indonesia, Thailand, Russia, The North of Ireland, Australia, Oman, Egypt, Israel, Africa, South America, Europe, USA.
Our service is honest firstly,quality most. Owing to our powerful team our products exported to various countries and regions around the world.

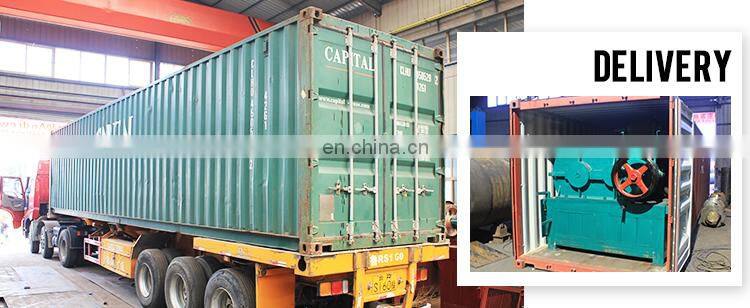

The equipment is packaged in plastic film and fixed in a container with wire, and the parts are packed in plywood boxes.
FAQ
1.I want to purchase a briquetting machine?
Hello, I am very happy to receive your question. Thank you very much for visiting our company's website and products.
We need to know the following information and then provide you an accurate plan and quotation. As follows:
1.What is the size of your raw material? Do you need to break it?
2.What is the moisture content of your raw materials? Do you need to dry?
3.What size of finished product do you need?
4.How many tons do you need to press per hour?
5.Do you want to dry the finished products after pressing and molding?
If you can tell us the answers of above 5 questions, we will be able to provide you with a better plan and quotation.
2.We are a steel mill that needs a hydraulic dry powder briquetting machine. What is the price?
Hello, I am very happy to receive your question. Thank you very much for visiting our company's website and products. The hydraulic dry powder briquetting machine mainly presses and forms a powder material having a water content of 5% or less into briquettes. We need to confirm the hydraulic dry powder briquetting machine is suitable for your raw material. Please tell us your material and we will provide you with a better solution.
3.We need mineral powder briquetting machine with capacity 20 tons per hours, what’s the price?
Hello, we are glad to receive your questions and Thank you very much for visiting our company's website and products.
The specific gravity of the raw material and the size of the finished product can affect the capacity of mineral powder briquetting machine. At the same time, different specific gravity of mineral powder have different characteristics. So we need to know the specific gravity of your raw material and the size of the finished product and then provide you suitable type of the machine and more accurate quotation.
