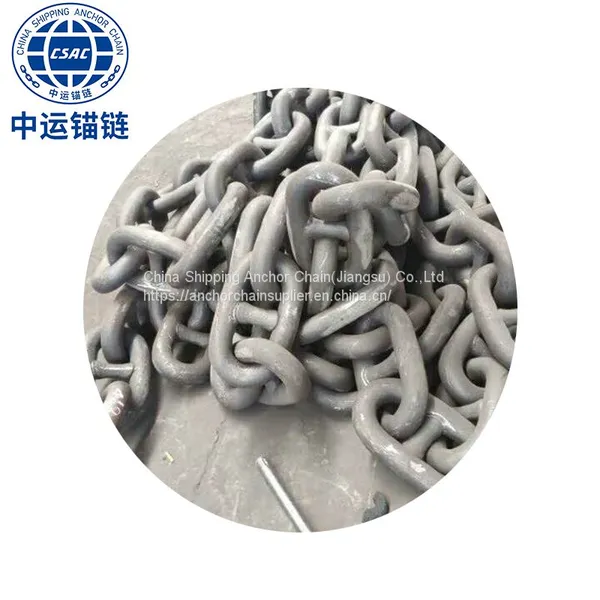

102MM Anchor chain For deep-sea wind power generation platform

1. Variety: Grade1, Grade 2,Grade 3,ORQ,R3,R3S,R4stud link anchor chain; studless anchor chain; buoy chain,D-type anchor
shackle; Hatch-cover chain,lifting chain,kiln chain and others; DIN Standard chain; Special chain as per your requirments and
their accessories.
2. MATERIAL GRADE: ANCHOR CHAIN:GRADE 2/U2, GRADE 3/U3，
MOORING CHAIN:ORQ,R3,R3S
3.Material:20Mn (CM490),30Mn(CM690)
4.Length: 25m or 27.5m or as per your request.
5. FLASH BUT WELED
6.Surface: Self Color, Black Painted, Hot Dip Galvanized
7.Relevant Certificates: ABS, BV, CCS, DNV, KR, LR, GL, NK and RINA etc.
8. Grade U2 / U3 from 12.5mm to 162mm; Grade ORQ / R3 /R3S / R4 from 58mm to 162mm
9. accessories: kenter shackle, joining shackle. anchor shackle,pear type joining shackle
buoy shackle type A, Swivel shackle
pear type link, trangle plate.
10.Difference between Stud link chain and studless chain:
Originally studs were added to the chain to stiffen the links preventing them from severely deforming when overloaded. They have
the added advantage in that they prevent the chain from knotting up when twisted, thus avoiding problems when chain is retrieved
with a windlass.
11.Packing: Wire Rope Bundled, Ton Bag, Wooden Box, as required
Using range:a.Marine chain b.Fishing &boat chain;c.Mine chain;d.Cement lifting round chain.

12. Shipping port: Qingdao port/Shanghai port
