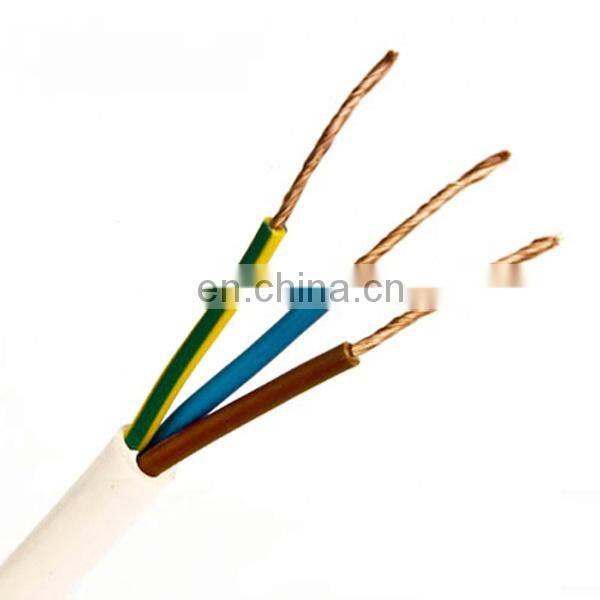

1.5mm 2.5mm 4mm 6mm 10mm single core copper pvc jacket electrical cable building wire multi core

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Related Production

Specification

Model	Name
BV	Copper core PVC insulation wire
BLV	Aluminium core PVC insulation wire
BVR	Copper core PVC insulation flexible wire
BVV	Copper core PVC insulation PVC sheath wire
BVVB	Copper core PVC insulation PVC sheath parellel wire
BLVVB	Aluminium core PVC insulation PVC sheath parellel wire
BV-105	Copper core heat-resistance 105oC PVC insulation wire

Nominal sectional area mm2	Conductor No./Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm	Condcutor Resistance at 20			Min insulated resistance at 70MΩ/km	Weight Kg/km
Nominal sectional area mm2	Conductor No./Dia. mm	Nominal Insulated thick mm	Max overall Dia. mm				Min insulated resistance at 70MΩ/km		CU	AL	CU	AL
1.5	1/1.38	0.7	3.3	12.1	-	0.011	19.2	-
1.5	7/0.52	0.7	3.5	12.1	-	0.010	20.6	-
2.5	1/1.78	0.8	3.9	7.41	11.8-	0.010	30.8	15.0
4	1/2.25	0.8	4.4	4.61	7.39	0.0085	45.5	21.0
6	1/2.76	0.8	4.9	3.08	4.91	0.0070	65.0	29.0
10	7/1.35	1.0	7.0	1.83	3.08	0.0065	110.0	52.0
16	7/1.70	1.0	8.0	1.15	1.91	0.0050	170.0	70.0
25	7/2.14	1.2	10.0	0.727	1.20	0.0050	270.0	110.0
35	7/2.52	1.2	11.5	0.524	0.868	0.0040	364.0	150.0
50	19/1.78	1.4	13.0	0.387	0.641	0.0045	500.0	200.0
70	19/2.14	1.4	15.0	0.268	0.443	0.0035	688.0	269.0
95	19/2.52	1.6	17.5	0.193	0.320	0.0035	953.0	360.0
120	37/2.03	1.6	19.0	0.153	0.253	0.0032	1168.0	449.0
150	37/2.25	1.8	21.0	0.124	0.206	0.0032	1466.0	551.0
185	37/2.52	2.0	32.5	0.099	0.164	0.0032	1808.0	668.0

Packing & Delivery

Company Profile

found in 2002, Shenzhen Brother Young Development Co.,Ltd enjoy a history of 18 years of making high-tech cable, patch cord cable, telephone cable, USB cable, fiber optic patch cord and other network accessories.

Exhibition

FAQ

Q1. Are you a factory or trading company?
A: We are a manufacturer.

Q2. What kind of products can your company supply?
A: We specialize in supplying lan cable,coaxial cable,telephone cable,speaker cable, patch cable fiber optical cable,power cable,etc.

Q3. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negotiate.

Q4. What's your delivery time?
A: Our delivery time is about 10-15 working days after conforming the deposit, it is based on the order quantity.

Q5. What's your payment terms?
A: Normally,we accept T/T in advance, as for other payment term,it's negotiable.

Q6. What's your trade term ?
A: We can accept FOB, CIF, CFR, EXW term.

Q7. What's your conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum, 500m/wooden drum or woven bag.
However, we can according to ur demand.
