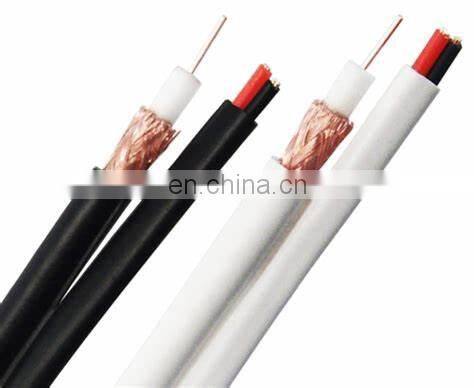

RG6 coaxial cable RG59 Siamese Cable for camera coaxial cable
| RG6 Basic construction | ||||
| STANDARD SHIELD | TRI-SHIELD | QUAD-SHIELD | ||
| CONDUCTOR | MATERIAL | BC/CCS | BC/CCS | BC/CCS |
| Nom.Dia. | 18AWG | 18AWG | 18AWG | |
| DIELECTRIC | MATERIAL | Foam PE | Foam PE | Foam PE |
| Nom.Dia. | 4.57mm | 4.57mm | 4.57mm | |
| SHIELD | MATERIAL | Al Foil+Al Braiding | Al Foil+Al Braiding+Al Foil | (Al Foil+Al Braiding)*2 |
| COVERAGE | 40%-95% | 40%-95% | 40%-60% | |
| JACKET | MATERIAL | PVC/PE | PVC/PE | PVC/PE |
| Nom.Thick. | 0.80mm | 0.80mm | 0.86mm | |
| Nom.Dia. | 6.8mm | 7.06mm | 7.62mm | |
| MESSENGER | MATERIAL | Galvanized steel wire | ||
| Nom.Dia. | 1.30mm | 1.30mm | 1.30mm | |
| Application | A common type of 75 ohm coaxial cable is cable television (CATV) distribution coax, used to route cable television signals to and within homes. CATV distribution coax typically has a copper-clad steel (CCS) center conductor and a combination aluminum foil/aluminum braid shield, typically with low coverage (about 60%). 75 ohm cables are also used in professional video applications, carrying either base band analog video signals or serial digital interface (SDI) signals; in these applications, the center conductor is ordinarily solid copper, the shielding is much heavier (typically aluminum foil, and 95% copper braid), and tolerances are more tightly controlled, to improve impedance stability. Cables typically have connectors at each end. |
|||
Advantage:
1,Fctory Price
2,Good quality
3,Best Serive
4,Good Delivery
FPE/SPE insulation Brother Young manufacturing rg59 cable price
FPE/SPE INSULATION BROTHER YOUNG MANUFACTURING RG59 CABLE PRICE
Other packing available according to clients requests.

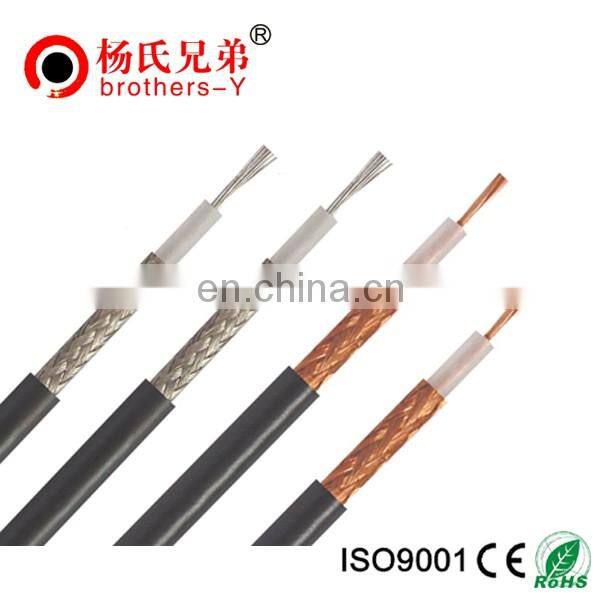

There is a simple introduction about RG6(some details)
1)Center conductor:BC,CCA,CCS,CCC
2)Insulation:Foam PE/Solid PE
3)Al-foil:Non-bonded Al-foil,bonded Al-foil,double bonded Al-foil
4)Braiding:40%-97% coverage Al-Mg,BC,CCC,CCA,CCS
5)Braiding wire diameter:0.10,0.11,.0.12,0.13,0.14,0.15,0.16mm
6)Braiding net:32,48,64,72,80,96,120,128,144 and more
7)Jacket:PVC,PE
|
Category |
RG6/U-QUAD |
|
|
Conductor |
Material |
CCS |
|
|
OD |
1.02MM |
|
Dielectric |
Material |
FPE |
|
|
External OD |
2.9mm±0.1mm |
|
Shield |
Material |
Al foil |
|
Braid coverage |
40%-95% Al-Mg |
|
|
Jacket |
Material |
PVC/PE |
|
|
External OD |
7.62mm±0.1mm |
|
|
Color |
According to requires |
|
Packing |
According to requires |
|
Certificates:

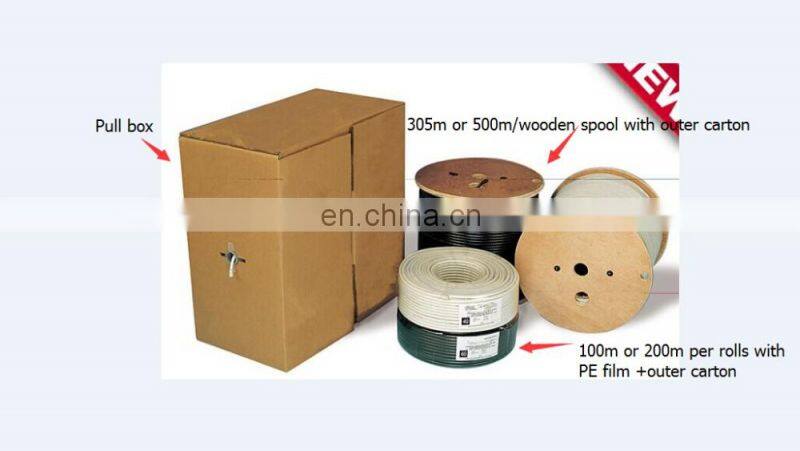

PACKING :
Call me for more details :
