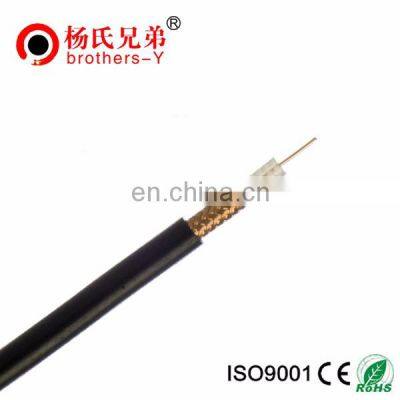

Customized RG6 Cable RG59 Coaxial Cables Black/white Color
Gcustomized RG6 cable RG59 coaxial Cables Black/white Color
Structure:
Conductor: Solid BC/CCS/CCA
Conductor Diameter: 1.02MM±0.02MM
No. of Conductor: 1
Shield: Double shielding.
Al.Foil: Adhesive Foil
Braid: Tinned Copper
Insulation: FPE insulation
Jacket: PVC
Jacket color: Black
Jacket OD: 7.07±0.2MM
Electrical Characteristic:
Impedance (ohms): 75±20ohm
Operating frequency: 5~1000MHz
Velocity Ratio: 85%
VSWR 5~1000MHz: 1.25 Max
Engineering data:
Minimum bending radius: 35M
Operating temperature: -20~+70°C
Jacket-Marking: Standard or customer’s request
Applications:
Multiplex telephony
Closed-circuit television surveillance system & radio vision system
Electronic warfare, aviation and other electronic devices
1) Packing Lengths:
100m/roll, 200m/roll, 305m/roll, 100yard/roll, 200yard/roll, 300yard/roll
Other lengths available according to client's request;

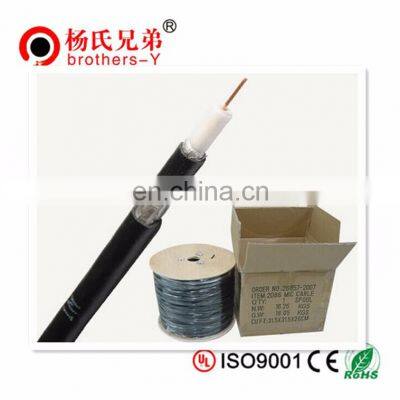

2) Inner packing: Wooden reel, plastic reel, and paper reel available.
3) Outer packing: Carton box, pull out box, pallet available.
4) Other packing available according to client's request.
Q1. What kind of products can ur company supply?

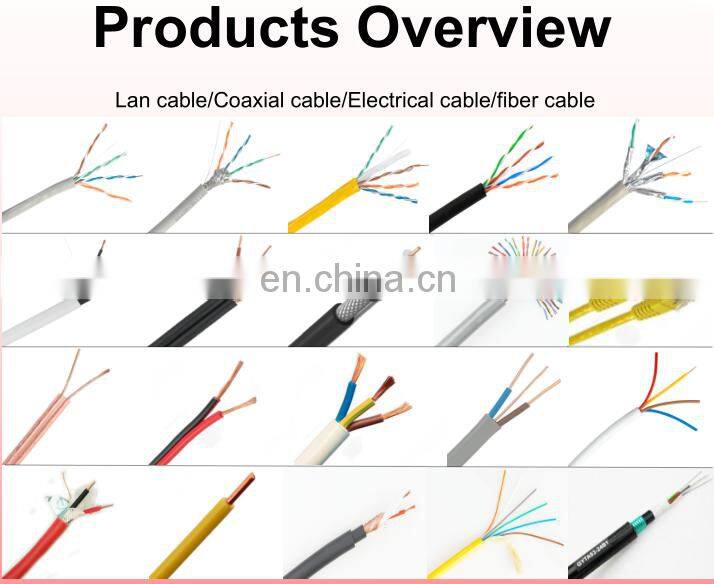

A: We specialize in supplying coaxial cable,lan cable,telephone cable,speaker cable, patch cable etc.
Q2. What's ur MOQ?
A: The MOQ of coaxial cable is 30 KM,lan cable is 300 boxes OR we can negociate.
Q3. What's ur delivery time?
A: Our delivery time is about 15-20days after comfriming the deposite ,it is based on the quantity of the order.
Q4. What's ur payment terms?
A: Normally,we accept T/T in advance, as for other payment term,we can negociate with u.
Q5. What's ur trade term ?
A: We can accept FOB,CIF,CFR,EXW term.
Q6. What's ur conventional packing ?
A: 100m/plastic or wooden drum,305m/wooden drum,500m/wooden drum or woven bag.
However, we can according to ur demand.
Q7. Can ur factory customize cables based on clients' samples or data sheet ?
A: Yes,we can.
