communication optic fiber ADSS cable High quality 24 core optical fiber cable and good fiber optic cable
48 Core Adss Fiber Optic Cable Non-metallic Outdoor Aerial Fiber Cable - Buy Adss Fiber Optic Cable,Self Supporting Cable,Aerial Fiber Cable Product on
Description:
The fibers, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound.
This part of cable companied with the wires as the supporting part are completed with a PE sheath to be figure 8 structure.
Features:
Non-metal strength has an excellent anti-electromagnet ability
Proven loose tube design for good performance
Excellent mechanical and environmental characteristics
Good flexibility and bending performance
Small outer diameter,light weigh easy to installation
Application:
Used in all kinds of general optical
Use in pigtails and patch cords
Used in connectors in optical communication equipment rooms and optical distribution frames
Used as optical apparatus connectors
Optical Characteristics:
|
|
G.652D |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation(+20°C) |
850nm |
≤3.0 dB/km |
≤3.0 dB/km |
||
|
1300mm |
≤1.0 dB/km |
≤1.0 dB/km |
|||
|
1310mm |
≤0.36 dB/km |
≤0.40 dB/km |
|||
|
1550mm |
≤0.22 dB/km |
≤0.23dB/km |
|||
|
Bandwidth |
850mm |
≥500 MHz·km |
≥200 MHz·km |
||
|
1300mm |
≥1000 MHz·km |
≥600 MHz·km |
|||
|
Numerical Aperture |
0.200±0.015NA |
0.275±0.015NA |
|||
|
Cable Cut-off Wavelength λcc |
≤1260nm |
≤1450nm |
|||
Technical Parameters:
|
Items |
Description |
|
|
|
Number of fiber |
24 |
|
96 |
|
Number of loose tube |
4 |
|
8 |
|
Number of fibers per tube |
6 |
|
12 |
|
Number of fillers |
1 |
|
0 |
|
Color of Jacket |
Black |
|
Black |
|
PE outer sheath thickness |
1.8±0.2mm |
|
1.8±0.2mm |
|
PE inner sheath thickness |
1.0±0.2mm |
|
1.0±0.2mm |
|
Loose tube diameter |
2.2±0.1mm |
|
2.6±0.1mm |
|
FRP strength member diameter |
1.6mm |
2.6mm |
|
|
RTS(KN) |
5 |
5 |
|
|
MAT(KN) |
2 |
2 |
|
|
EDS(KN) |
0.8 |
0.8 |
|
|
Cable diameter |
12.2±0.2mm |
15.6±0.2mm |
|
|
Approx. weight cable Kg/Km |
128 |
190 |
|

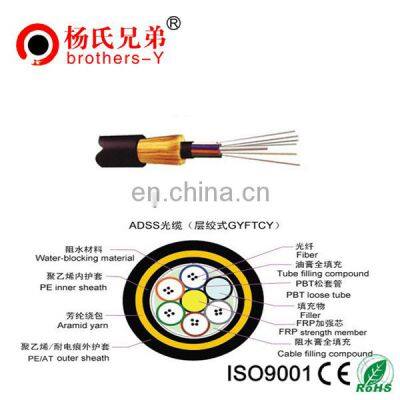

Product Structure:
Product Range:--Fiber Optic Cable (indoor/outdoor Patch cord), LAN Cable (UTP/FTP, cat5e cat6 cat7), Power Cable, Coaxial Cable
(RG6 RG 59 RG11), Security Cable ( Fire Alarm Cable, CCTV camera cable RG59+power)
