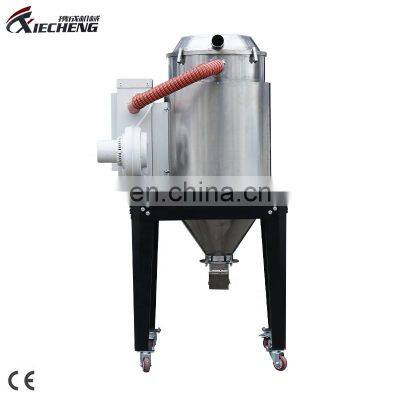

P.I.D Double Stainless Steel Industrial Euro Hopper Dryer for Injection Machine
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
China Detachable Pvc Powder Vacuum Loader Plastic Powder Feeder/hopper Loader/feeding Machine PriceNegotiableMOQ: 1 -
High Efficiency Low Cost Industry Mold Temperature ControllerNegotiableMOQ: 1
-
Low Price Water Cooling Chiller System Unit Injection Extruder Air Cooled Industrial ChillerNegotiableMOQ: 1
-
Semi-Hermetic Screw Water Chiller MachineNegotiableMOQ: 1
-
CPU Water Cooling System Water Cooled ChillerNegotiableMOQ: 1
Product Description

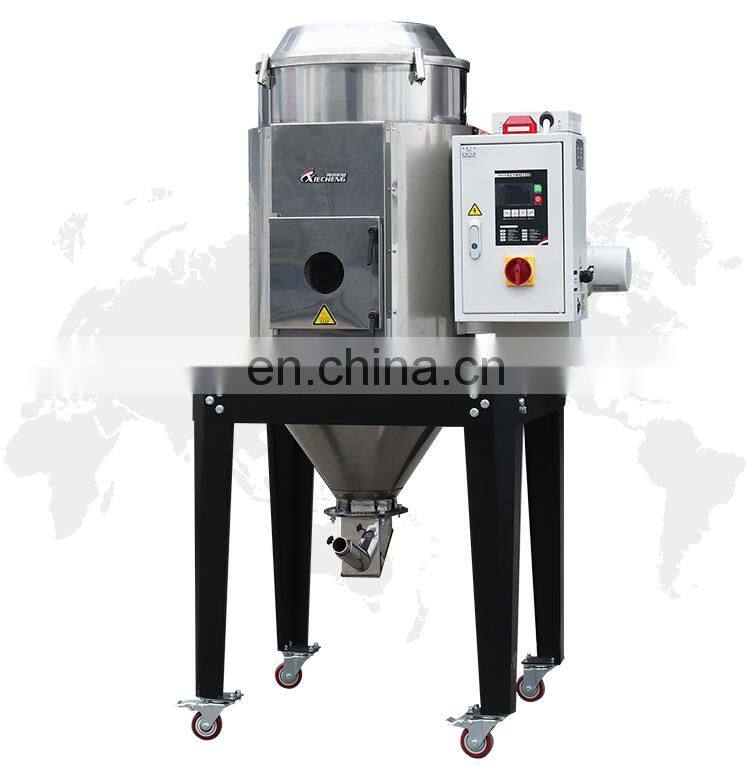

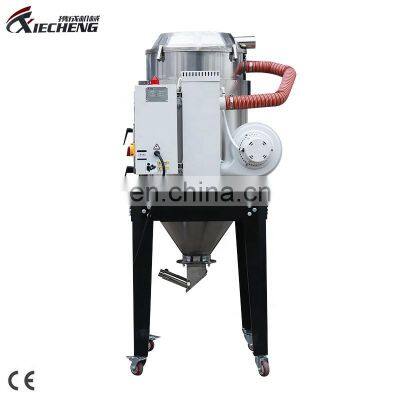

Euro-Hopper Dryer
The XCD series are equipped with stainless steel door, hot air downward-blowing, cyclone exhaust and double layer insulated hopper, which are ideally suitable for drying engineering plastics with a dehumidifier and provides a variety of capacities for selection.
Product Specifications
Model | Heating Power(kw) | Blower (kw) | Tank Capacity (L) | Dimensions (mm) | Floor Stand Size (mm) | Whole Height (mm) | Air Inlet Pipe Diameter | Diameter of Suction Box | Approx. Net Weight (kg) |
XCD-80U | 4 | 0.135 | 80 | 933*730*500 | 864*732*550 | 1510 | 2" | Φ38 | 80 |
XCD-120U | 4.5 | 0.21 | 120 | 1175*730*505 | 865*735*550 | 1750 | 2.5" | 90 | |
XCD-160U | 6 | 0.215 | 160 | 1195*810*610 | 865*800*670 | 1725 | 2.5" | 110 | |
XCD-230U | 9 | 0.32 | 230 | 1495*865*610 | 865*800*670 | 2010 | 3" | 110 | |
XCD-300U | 12 | 0.32 | 200 | 1490*980*730 | 1015*950*790 | 2080 | Φ51 | 110 | |
XCD-450U | 15 | 0.32 | 450 | 1840*1005*725 | 1015*950*790 | 2430 | 3" | 130 | |
XCD-600U | 18 | 0.5 | 600 | 1815*1215*920 | 1145*1200*1000 | 2425 | 4" | 200 | |
XCD-750U | 18 | 1.5 | 750 | 1975*1255*920 | 1145*1200*1000 | 2575 | 4" | 220 | |
XCD-900U | 18 | 1.5 | 900 | 2085*1345*1010 | 1145*1200*1000 | 2600 | 4" | 250 |
If you want more sizes, please contact us for details

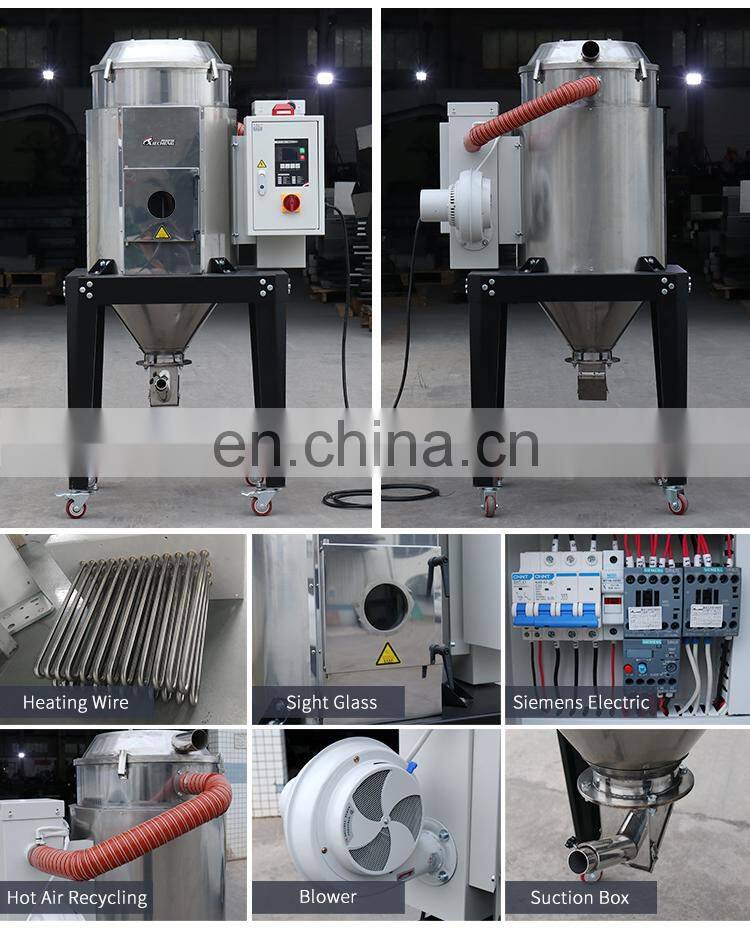

Product Actual Shooting
Product Details

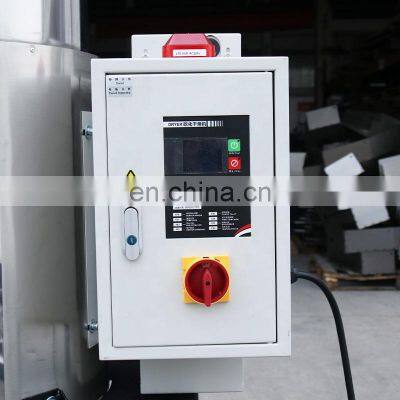

01 LCD Controller
▪ Industry leading LCD microcomputer controller with temperature control accuracy of ± 0.1 ℃ ;
▪ Equipped with the 24-hour automatic timing device;
▪ Optional RS485 communication.

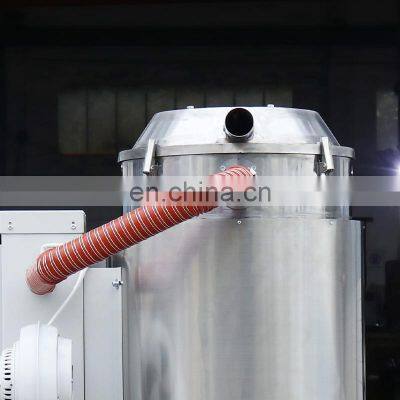

02 Hot Air Down-blowing Design

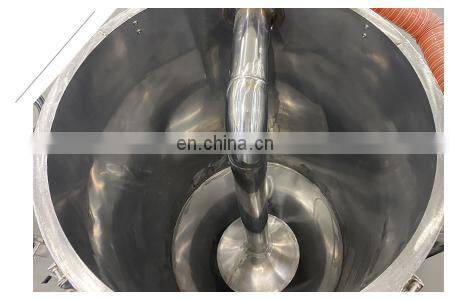

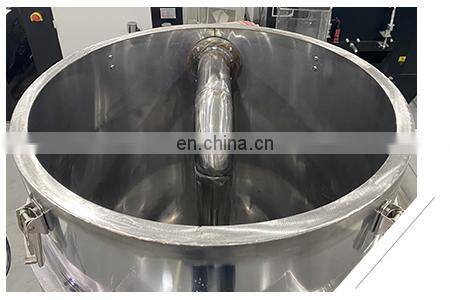

Hot air down-blowing design ensures even distribution of hot air to maintain a steady temperature in the hopper and increase drying efficiency.
With over-temperature trip protection device, it can reduce accidents caused by man-made or mechanical failures.
Double-layer thermal insulation design, the inter layer adopts high-quality thick thermal insulation materials, which can ensure even temperature and less heat loss, more energy-saving and environmentally friendly.
The contact parts of the raw materials are all made of stainless steel to ensure that the raw materials are not polluted.

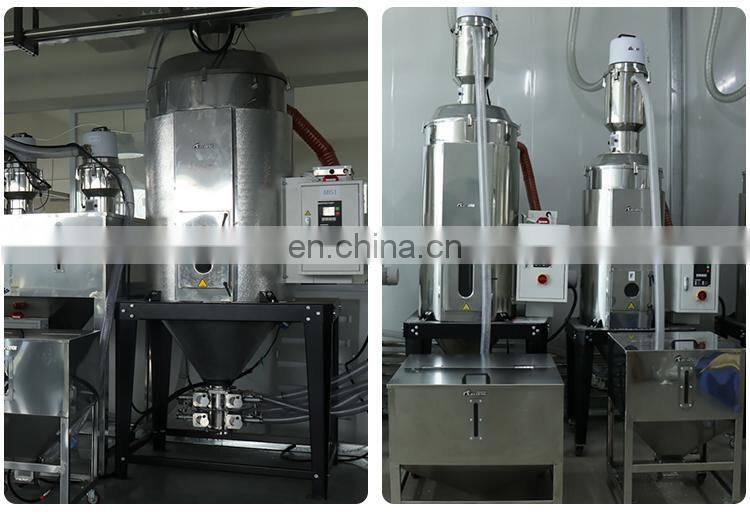

Application Range
Best Selling
About Us
Company Profile
In 2009, founded by Mr. Fuzhibo with its head quarter in Jiangmen city which known as a famous hometown of many overseas Chinese, Jiangmen Xiecheng Machinery Co., Ltd. has been devoted herself to be an integrated enterprise of R&D, manufacturing and marketing businesses for High-end Industrial Refrigeration Equipment, Rubber and Plastic Moulding Auxiliary Automation Equipment, and also Intelligent Integrated System Solutions.
Authenticated by IS09001, XIECHENG also successfully established the “6+1+C” full dimensional product service system with her own supply chain advantages of combining the six series of products, as Industrial Refrigeration, Mould Temp. Controlling, Material Conveying, Crushing & Recycling, Dehumidifying & Drying, and also Mixing, into central intelligent system solutions as Material Feeding, Air Supply, Water Supply and Power Supply, to fast fitting customers’ specific demands.
