Home > Industrial Equipment & Components > Refrigeration Equipment > Industrial Chiller > Xiecheng 5ton Water Cooled System Industry Cooling Chiller
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Factory Supplier 5HP Chiller Unit Air Cooled Water Cooled ChillerNegotiableMOQ: 1 -
Air Cooled Heat Recovery Water ChillerNegotiableMOQ: 1
-
Soft Plastic Shredder/CrusherNegotiableMOQ: 1
-
High Rotating Speed 300g 1hp Industrial Hopper Plastic Auto Loader MachineNegotiableMOQ: 1
-
Stainless Steel Hopper Mixer Machine for PlasticNegotiableMOQ: 1
Product Description

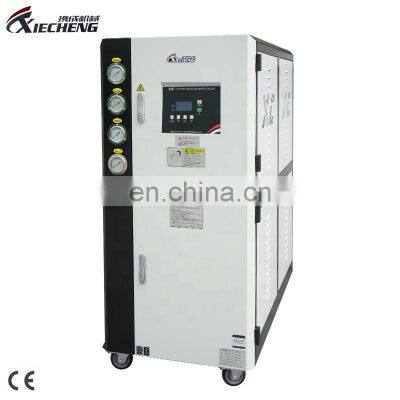

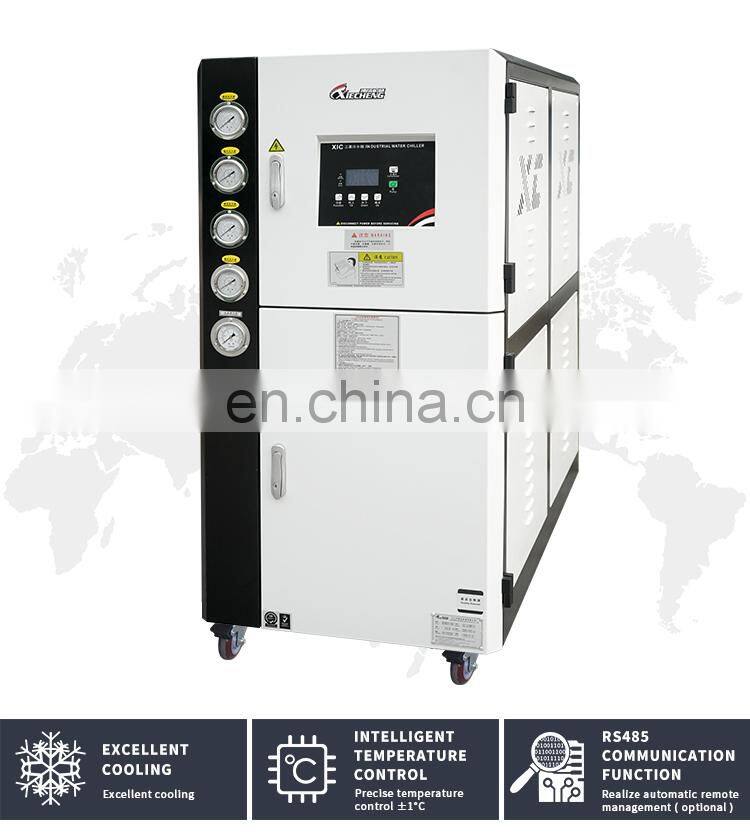

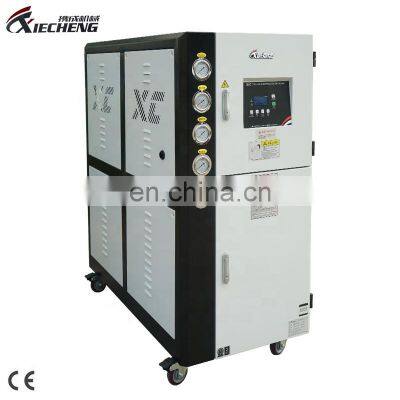

Water Cooled Water Chiller
Industrial chillers are widely used in plastics, electronics manufacturing, electroplating, pharmaceutical and chemical, ultrasonic cooling, printing and other industrial productions. It can precisely control the temperature required for modern industrial manufacturing and largely improve efficiency and product quality. It is the best choice for modern industries with simple operation, reasonable design and superior quality and over one hundred different models.
Suitable for various industries

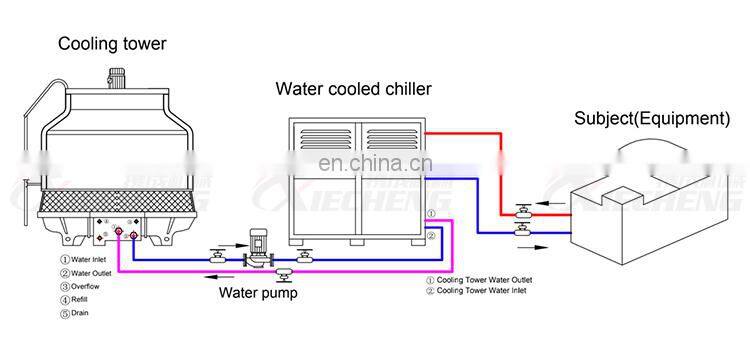

Industrial water chiller is to provide a cooling process in plastic molding, to improve quality of molded products and shorten period of injection molding cycles. Hence maximizes productivity of plastic molding manufacturing.
Product Specifications
Model | Unit | XC-L10W | XC-L12W | XC-L15W | |||||
Cooling Capacity | KW | 35 | 39 | 51.7 | |||||
Kcal/h | 30100 | 44505 | 45422 | ||||||
Compressor | Input Power | KW | 3.75*2 | 4.5*2 | 3.75*3 | ||||
Rated Power | HP | 5*2 | 6*2 | 5*3 | |||||
Power | 3PH-380V/50HZ | ||||||||
Evaporator | Type | Shell and Tube | |||||||
Pie Diameter | inch | 2'' | 2'' | 2.5'' | |||||
Refrigerant | Type | R22 | |||||||
Quantity | KG | 5 | 5 | 7.5 | |||||
Condenser(water chiller) | Type | Finned Copper Tube + Low Noise Outer Rotor Fan | |||||||
Pie Diameter | inch | 1.5'' | 1.5'' | 2'' | |||||
Cooling Water Flow | m3/h | 4.42 | 5.03 | 7.1 | |||||
Pump | Power | KW | 1.5 | 1.5 | 2.2 | ||||
HP | 2 | 2 | 3 | ||||||
Distance | m | 15 | 15 | 16 | |||||
Flow Rate | L/min | 360 | 360 | 360 | |||||
Safety Protection | High and Low Pressure Protection, Overload Protection,Overtemperature Protection, Phase Sequence Protection,etc. | ||||||||
Dimensions(L*W*H) | mm | 1270*650*1413 | 1270*650*1413 | 1470*750*1413 | |||||
If you want more sizes, please contact us for details
Product Actual Shooting
Product Details

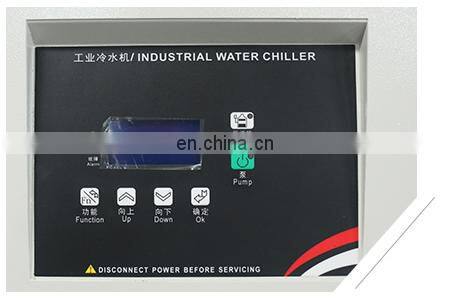

01 Microcomputer LCD Controller
▪ Simultaneously displays the cold water outlet and the set temperature;
▪ Easy to operate with accuracy of controlling water temperature within 3℃ to 50℃.

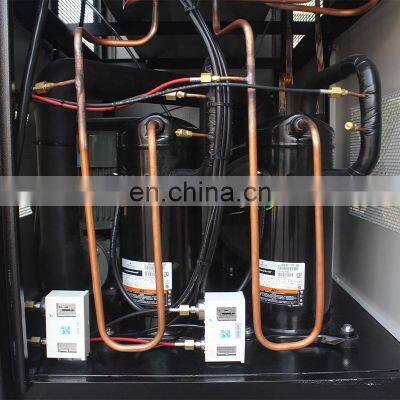

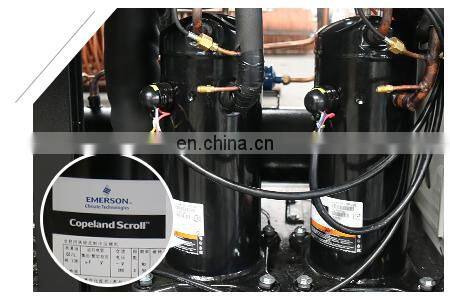

02 Famous Band Compressors
Using famous brand Copeland compressor, with lower noise and less vibration, efficient and energy saving.

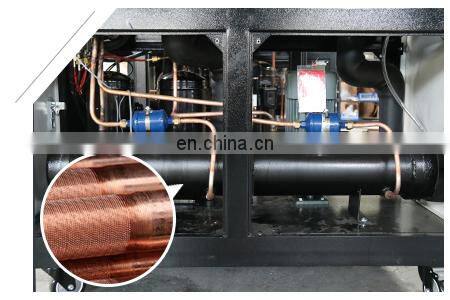

Shell and tube evaporator adopts high-precision internal threaded copper tube design with larger heat exchanging area for higher efficiency and maximizing system performance.

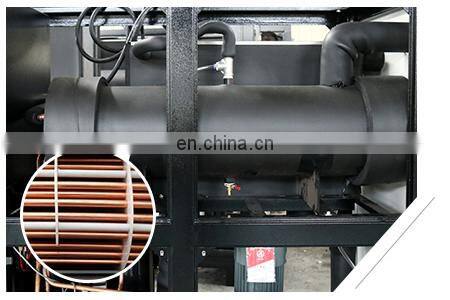

Shell and tube condenser adopts high-precision external threaded copper tube design with larger heat exchanging area for higher efficiency and maximizing system performance.

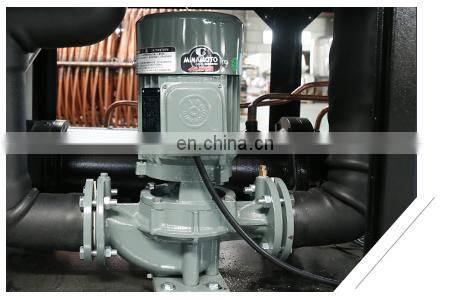

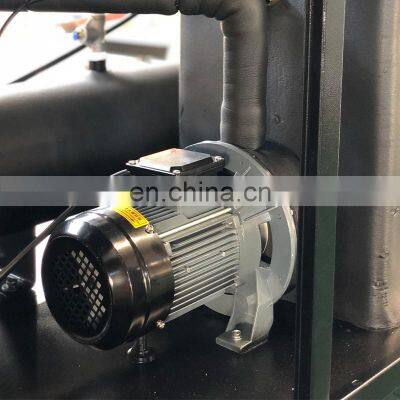

Well-known brand pumps, with large working range, low noise, reliable performance and no leakage and maintenance-free.
Instead of capillary copper tube, it is resistant to high temperature and high pressure, and will not cause refrigerant leakage due to excessive pressure.
Protection System
Current overload protection, high and low pressure protection system and electronic time delay, and an abnormal visual displaysystem.
Application Range
The chiller is used in the plastic processing machinery mold cooling, electroplating industry,machinery industry, building industry, vacuum coating and food industry,etc.
