PET Bottle Cutting Machine Soundproof Plastic Crusher For Granulator HDPE
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Buying Office
Year Established:
1991
Annual Export Value:
US$1 Million - US$1.5 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5 Ton Water Cooled Water Chiller Price For Laser MachineNegotiableMOQ: 1 -
CE Certified Hermetic Compressor R22 Refrigeration Water-Cold Industrial ChillerNegotiableMOQ: 1
-
Industrial CO2 Water-Cooled Chiller Supplier In MachineryNegotiableMOQ: 1
-
Industrial 1 hp 3kw R22 Refrigerant Mini Recirculating Air Cooled Water ChillerNegotiableMOQ: 1
-
Factory Price 160L Standard Euro Type Hopper Dryer for SaleNegotiableMOQ: 1
Product Description

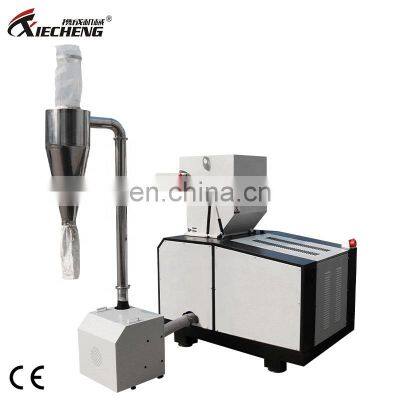

Soundproof Plastic Crusher with Collector （Flake Type）

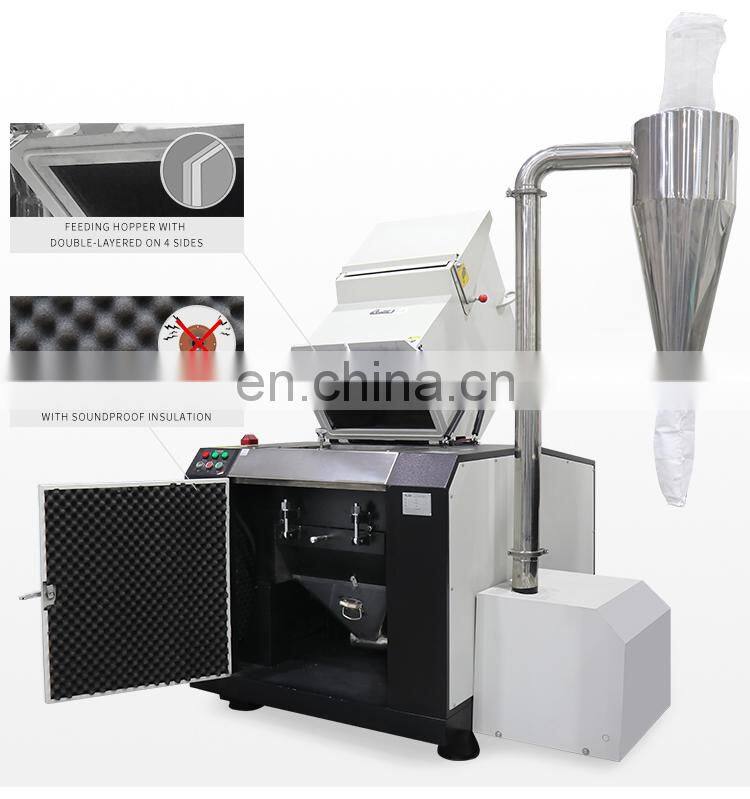

Soundproof central crushers are suitable for centralized recycling of wastes or rejected parts from injection moulding, blow moulding or extrusion lines. The machines feature optimized full-hermetic structure with soundproof insulation, ensuring low noise occur in crushing process. This Crusher has various models with wide application range to meet different customer’s demand.
Product Specifications
Model | XC-GP400-SP | XC-GP500-SP | XC-GP600-SP | XC-GP800-SP | ||
Grinding Chamber(mm) | 410*240 | 510*300 | 610*330 | 815*470 | ||
Grinding Capacity(KG/H) | 200-250 | 300-350 | 350-450 | 450-600 | ||
Stationary Cutter | 2 | 2 | 4 | 4 | ||
Rotary Cutter | 12 | 15 | 18 | 24 | ||
Mesh Size (mm) | Ф8 | Ф10 | Ф10 | Ф10 | ||
Power | KW | 7.5 | 11 | 15 | 22/30 | |
HP | 10 | 15 | 20 | 30/40 | ||
Dimension (L×W×H mm) | 1350*930*1590*1320 | 1560*1070*1784*1440 | 1560*1170*1870*1500 | 1850*1510*2510*1990 | ||
Net Weight(KG) | 604 | 900 | 1180 | 2000 | ||
If you want more sizes, please contact us for details
Feature
Product Details

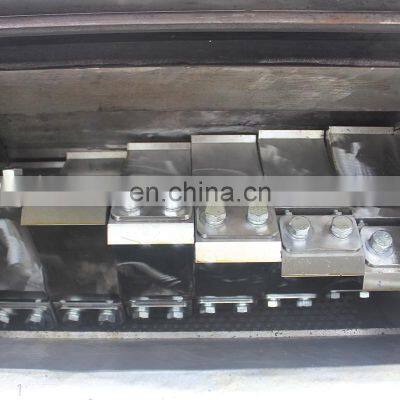

01 Durable Cutter
▪ Flake type blade design, blades are made of high-strength alloy tool steel, with high hardness, good abrasion resistance, and long durability.
▪ Material:CR12MOV, hardness in 57-59°
▪ Material:CR12MOV, hardness in 57-59°
02 Chamber Wall Thickness
Chamber wall thickness 20~50mm, more stable in crushing process due to better load-bearing, hence with higher durability.
▪ SIEMENS electrical parts ensures stable running and liability of the machine；
▪ Optional Deluxe CE: CE wiring, CE safety electrical devices.
▪ Optional Deluxe CE: CE wiring, CE safety electrical devices.
▪ With auto collecting blower for easy and efficient operations;
▪ With cyclone to separate material and air for easy collecting;
▪ With dust collecting bag for handy cleaning;
▪ With dust collecting bag for handy cleaning;

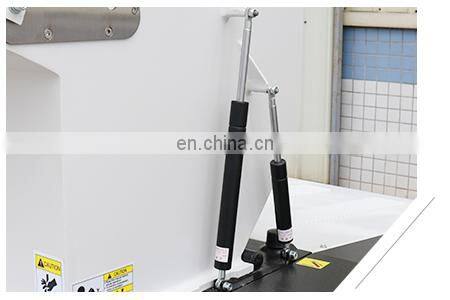

≥15HP are applied with booster for feeding hopper, ≥ 30HP default with cylinder on hopper and mesh screen.
Blade Production Process

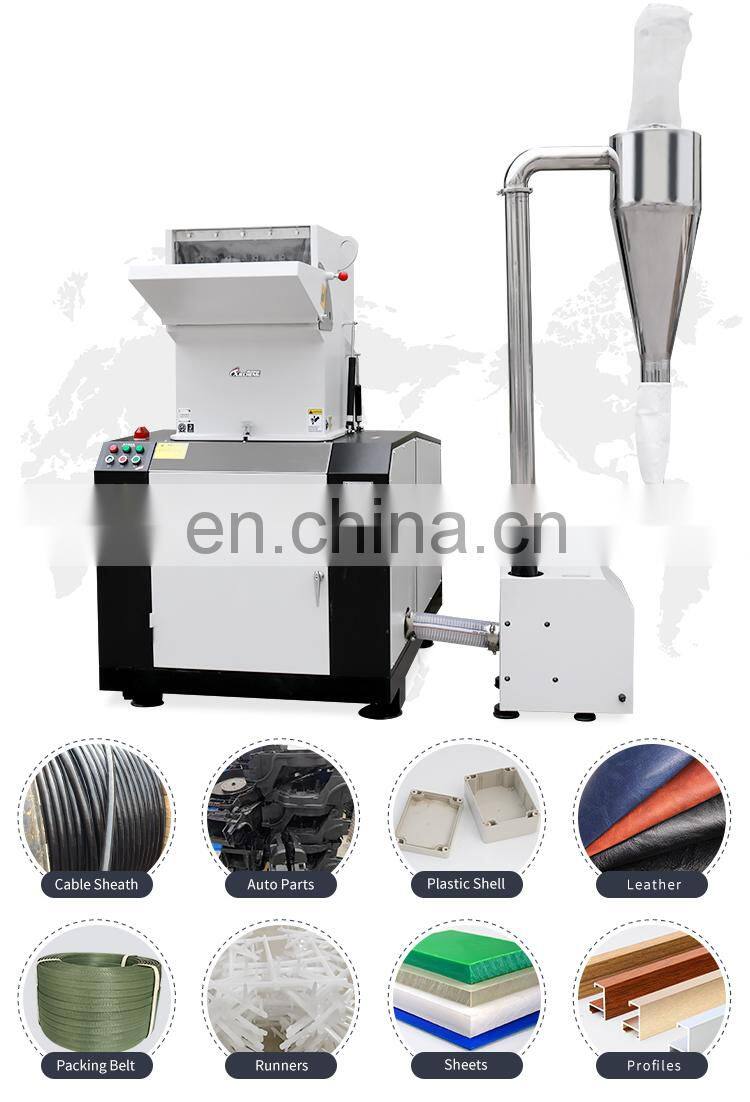

Application Range
Flake cutter blades are suitable for recycling and restoring of conventional sheets, tube plastics, profiles, packing plastics, extrusion mold products and runners, etc.
