Product Description

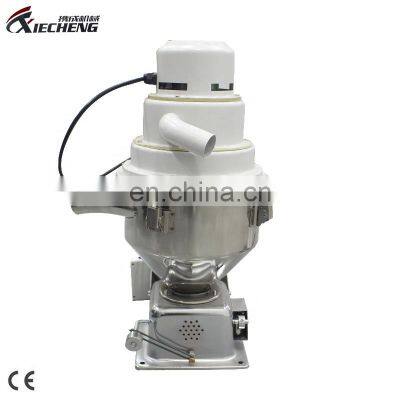

Self-Contained Hopper Loader
300 Hopper loaders are mainly used beside injection molding machines, extrusion machines or other machines to dry the plastic materials, which are installed on the drying hopper directly. For its high installing position, it use wire-controlled controller to control and automatically complete the loading work.
Product Specifications
Model | XC-X300G | ||
Motor | Model | Carbon Brush | |
Specification | 1.1kw/1.3hp 1φ | ||
Conveying capacity (kg/hr) | 300 | ||
Loading Distance (m) | 3.5 | ||
Static Wind Pressure (mm/H2O) | 1300 | ||
Storage Tank Capacity (L) | 7.5 | ||
Conveying Tube Inner Diameter (mm) | φ38 | ||
The Attached Hoses (mm) | φ38mm×3.5m 1pcs | ||
Dimensions L x W x H(cm) | 42x34x57 | ||
Weight (kg) | 12 | ||
If you want more sizes, please contact us for details
Product Details

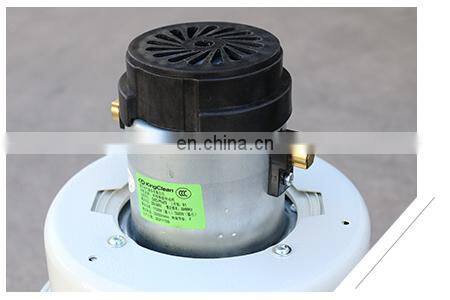

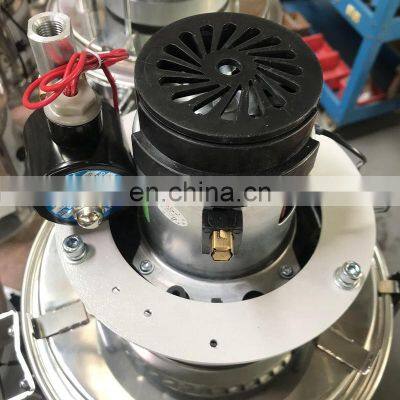

01 Motor
300G adopts high-speed carbon brush motor, small size, strong suction, suitable for conveying new materials.

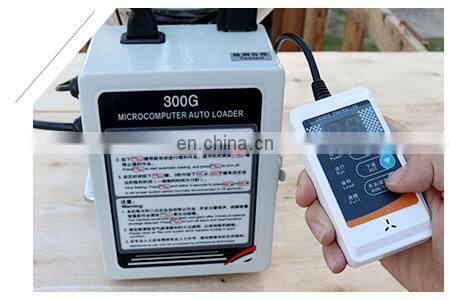

02 Controller
▪ Wire-controlled controller, easy to use;
▪ Alarm for overload and material shortage;

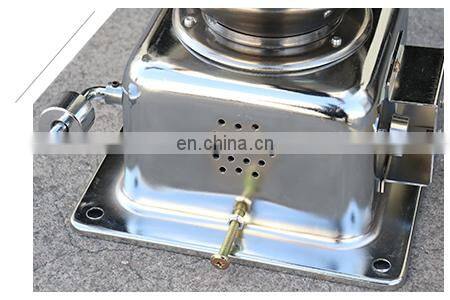

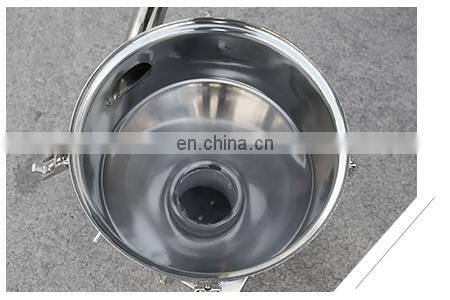

All stainless steel contact parts, to ensure no pollution in material conveying.
Installing with balance switch. Use physical principles to adjust the work of the baffle.
Application Range
