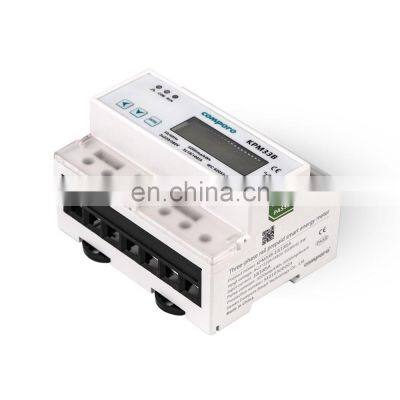

Digital Energy Meter Price 3 Phase 35mm DIN Rail Mounted Prepaid Meter Watt Meter Energy Meter RS485

FOB Price

Negotiable

1 (Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Overview

FEATURES AT A GLANCE

Application

1. Intelligent distribution management system

2. Internal energy consumption statistical analysis and charging statistics basis

3. Energy metering, automatic meter reading system

4. Energy and energy efficiency management system

Details Images

Product Paramenters

KPM33Multifunction meter-Technical parameters
Input voltage	Rated voltage		AC 3x220V/380V
		Overall power consumption		<2VA/
		Frequency range		45~65Hz
Input current	Rated current		10-100A
		Frequency range		45~65Hz
Measurement accuracy	Voltage		±0.2%(0.01V)
		Current		±0.2%(0.01A)
		Active power		±0.5%(0.1W)
		Reactive power		±2.0%(0.1kvar)
		Active energy		±0.5%(0.1kWh)
		Reactive energy		±2.0%(0.1kvarh)
		Power factor		±0.5%(0.001)
		Frequency		±0.02Hz(0.01Hz)
Clock	Clock accuracy		<0.5S/D
Communication	Communication interface		RS485,Photoelectric isolation interface
		Communication protocol		Modbus-RTU,1200~38400bps
Electrical insulation	Power frequency withstand voltage		AC2kV/min~1mA Input-output-power source
		Insulation resistance		>50MΩ
		Impact voltage		5kV(Peak),1.2/50us
Working environment	Operating temperature		-25℃ ~ +70℃
		Relative humidity		5%~95% No condensation
		Storage temperature		-30℃ ~ +75℃
		Altitude		No more than 4000m
