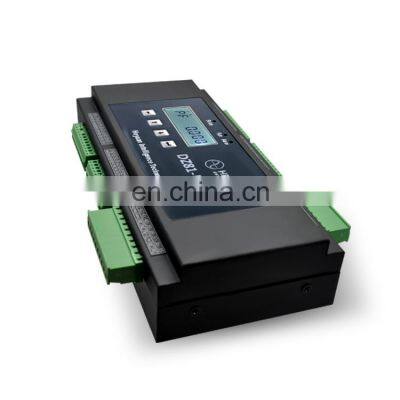

Multi-circuit Energy Monitoring Digital Din Rail Electric Meter Modbus RTU
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
RS485 Energy Monitor 3 Phase 4 Wire Kwh Meter Smart Multi Ffunction Meter
-
Multi Circuit RS485 Electronic Smart Electricity Power Meter
-
Modbus RTU 27 Circuits 1 Phase/3 Phase Digital Energy Meter CT Connection
-
RS485 Energy Monitor Smart Multi function Meter Multi Channel Energy Meter
-
Multi Channel Energy Meter Modbus RTU Digital Three Phase Meter DZS400
-
Multi-channel Remote Control KWh Smart Electric Energy Meter RS485
Product Description
Products Description
Multi-circuit Energy Monitoring Digital Din Rail Electric Meter Modbus RTU
With internationally cutting-edge imported metering IC solutions, we launched 27circuits smart meters with efficient and stable metering performance for all electrical parameters. Matched with Heyuan Cloud Platform Managing System, it can provide remote stable and reliable data and ensures efficient energy management and electrical safety monitoring.
Features:
• Monitoring up to 9 three-phase channels or 27 single-phase channels and measuring all parameters: three phase voltage, current,
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
line voltage, zero-sequence current , zero-sequence voltage, active power, reactive power, power factor, frequency, active energy,
reactive energy from 9 circuits.
• Standard CT, PT or voltage direct connected, suitable for various wiring modes under high or low pressure environment
• 2* RS485/Lora LoraWan (optional) • Modbus RTU communication protocol, DL/T645 (optional)
• 4 DI
• 2 DO (optional)
• 2* programmable energy pulse output
• LCD display
Product Paramenters

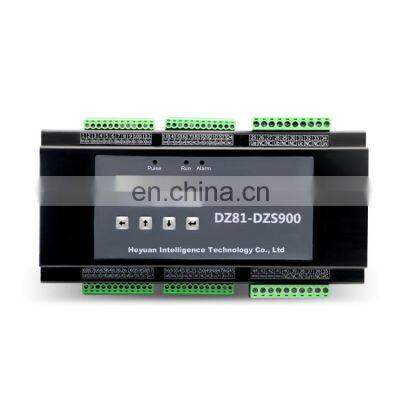

Technical Parameters-DZS900 | ||||
Accuracy Class | Voltage: 0.2; Current: 0.2; Frequency: 0.05 Hz; Power Factor: 0.5 | |||
Active Power: 0.5; Reactive Power: 0.5; Apparent Power: 0.5 | ||||
Active Energy: 0.5S/1; Reactive Energy: 2 | ||||
Inputs | Rated Value | Voltage: 100 V/400 V Current: 20mA | ||
Overload | Voltage: Sustained Overload: 1.2 times of the rated value Momentary Overload: 2 times of the rated value Current: Sustained Overload: 1.2 times of the rated value Momentary Overload: 10 times of the rated value | |||
Frequency | 45-60Hz | |||
Functional Module | Pulse Outputs | 2 | ||
Interface | 2* RS485; Modbus RTU communication protocol; Baud rate: 1200-19200bps | |||
Power Supply | Working Range | AC: 85-265V; DC: 85-300V | ||
Consumption | < 3W | |||
Working Condition | Temperature | Operating: -20°C~+65°C. Storage: -40°C~ +85°C | ||
Humidity | Relative Humidity: < 93% (place without corrosive gas) | |||
Altitude | <4000m | |||
Dimensions: | 210×100×45mm | |||
