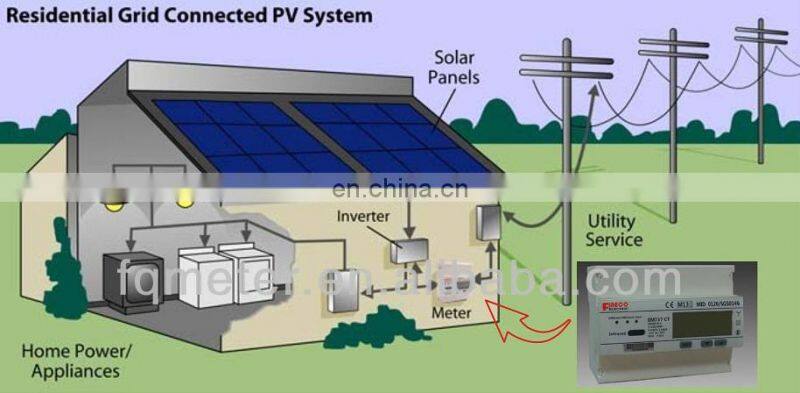

EM737 3*230/400V 1.5(6)A CT mid approved 3 phase 4 wire energy meter connection solar power meter

                                   EM737 3*230/400V 1.5(6)A CT

   mid approved meter 3 phase 4 wire energy meter connection solar power meter

Benefits and Main Features

• Three phase kWh metering ,digital energy meter
• Standard DIN rail Format (DIN43880)
• EN50470-3 Class B.
• Import &Export active energy
• Import &Export reactive energy
• Instant Volt, Amp, Power factor, Frequency, Active power, Reactive power, Apparent power
• Isolate pulse output and IR (DIN43864)
• LCD display, 6 integer 2 decimal
• Large clear backlight display
• Internal transformer
• 27 CT rate can be selected
• Optional single-phase model
• RS485 communication port, modbus protocol
• IR port
• Program by button on the nameplate
• Memory back-up (EEprom)
• 7 DIN modules
• MIDapproval
• The meter is intended to be installed in a Mechanical Environment ‘M1’, with Shock and Vibrations of low significance, as per 2004/22/EC Directive and should be installed in Electromagnetic Environment ‘E2’, as per 2004/22/EC Directive

Meter specification

Main function

Measuring Function

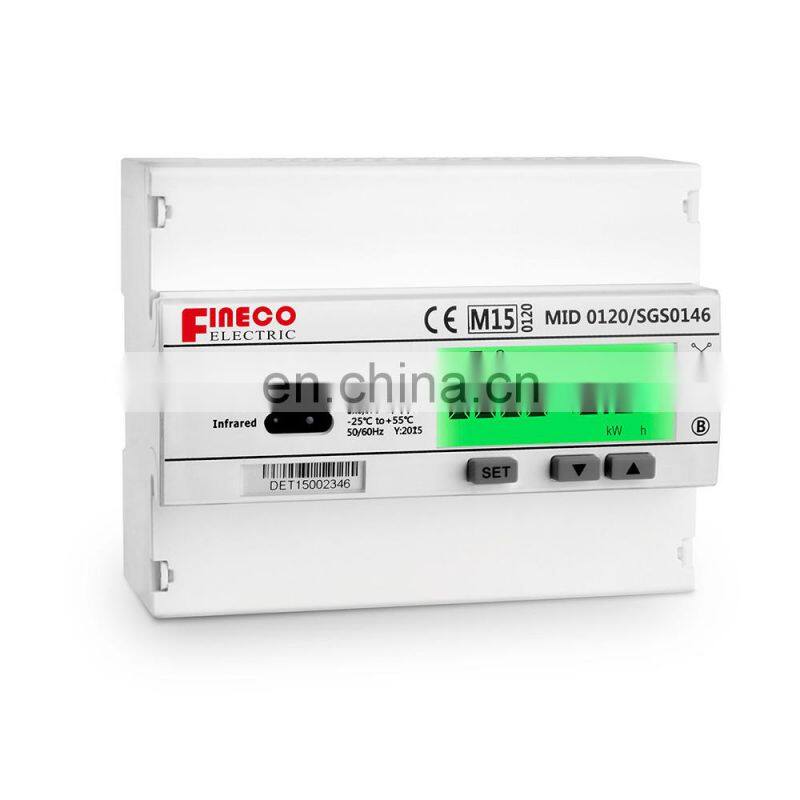

   On the EM737’S front panel, there are three LED, active/reactive energy pulse light, and alarm indicator lights .

Meter can measure import & export active energy , import & export reactive energy. The measurement type can be set

Display function

     Smart meter have two status: cycle display status andbutton press display .When pressing the button, User can set according their request. Button press will Backlight the LCD. Display cycle can be set within 5~20 seconds, The default is 5 seconds

Electricity parameters measurement and monitoring

   Measure record and display voltage, current, power and power factors. error is not more than ±1%.

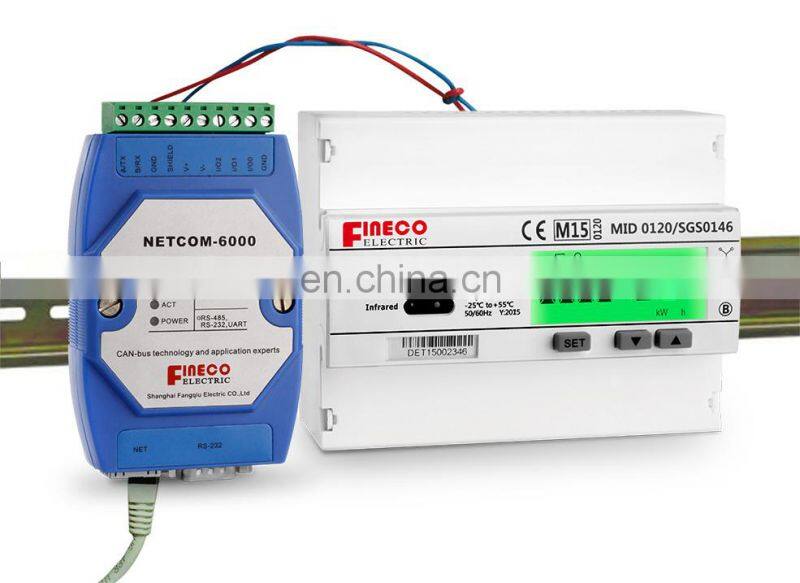

Communication Function

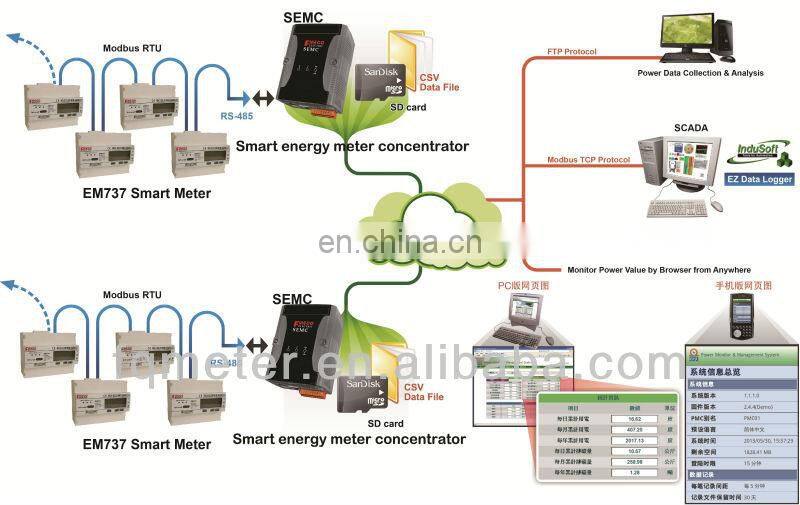

   With an infrared COM and a RS485 COM. Its physical layers are independent with each other. One communication channel will not be affected by the other one. The meter can realize data acquisition, broadcast time setting, read, program and manage through hand-held terminals, data acquisition terminal, test equipments and computers. Communication protocols fit Modbus RTU standard.

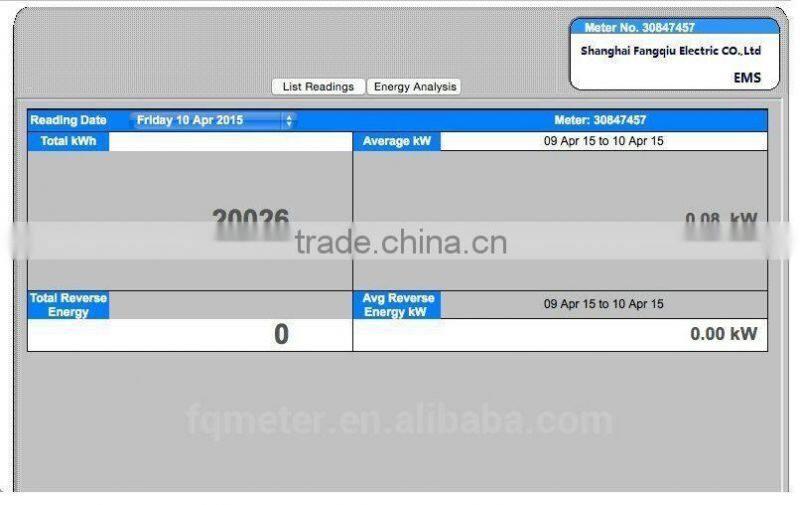

       Using communication function , the smart meter can connection to the Fineco Cloud.The reading can be viewed through the web browse at any time.

 Alarm function

   When the meter connect wire wrong example: current reverse, lost phase and reversed phase sequence , the meter will display     , the ALARM led will be on.

  Pulse output function

    Smart meter is equipped with a pulse output which is fully separated from the inside circuit. That generates pulses in proportion to the measured energy .include the testing pulse output of active energy and reactive energy. 8/ 11 Test pulse output contact (P+/P-),9/ 11 Test pulse output contact (Q+/Q-)

The test pulse output is a polarity dependant, passive transistor output requiring an external voltage source for correct operation. For this external voltage source, the voltage (Ui) should be 5-27V DC, and the maximum input current (Imax) should be 27mA DC. To connect the impulse output, connect 5-27V DC to connector 8&9 (anode), and the signal wire (S) to connector 11 (cathode).
