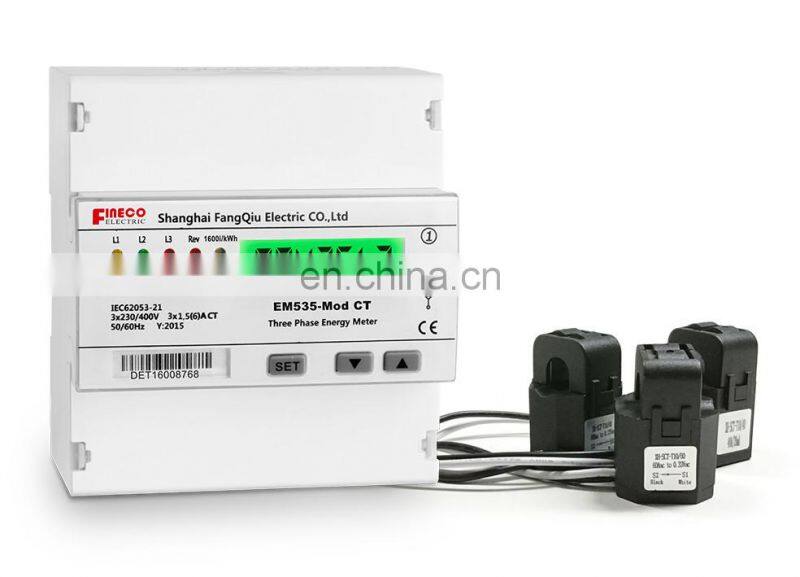

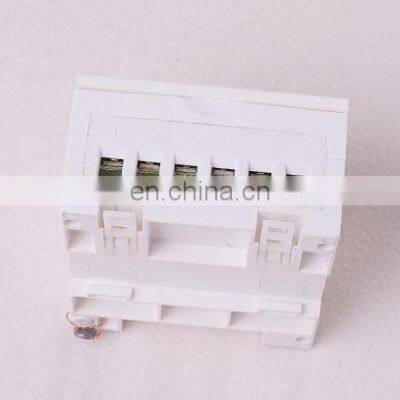

EM535-Mod CT 330mV ac input 3 phase 4 wire rs485 modbus energy meter

                EM535-Mod CT 330mV ac input 3 phase 4 wire rs485 modbus energy meter

Main Functions and features:

• Three phase metering , Standard DIN rail Format (DIN43880)
• IEC62053-21 Class 1.0
• LCD display, 6 integer 1 decimal
• Large clear backlight display
• 330mV ac input
• Smart communication port, RS485&M-bus can selected
• Can be set through front panel or via communications
•  Isolate pulse output  (DIN43864)
•  Memory back-up (EEprom)
• 5 DIN modules
• CE approval

 Measuring function:

 Consumption indication

  On the EM535’S front panel, there are five LED, respectively, for the Active energy pulse light, current reverse ,Phase L1/L2/L3 . The constant of the impulse is shown on the nameplate of the meter

Pulse output

   Smart din rail energy meter is equipped with a pulse output which is fully separated from the inside circuit. That generates pulses in proportion to the measured energy. They are test pulse output (pins 20 & 23). Usually, the test pulse output is used as testing accuracy or reading purpose in close quarters.

Communication port

    Smart meter has equipped communication port, we can program the meter’s operation data or reading via these 2 ports.(Pin26 pin27) . There are two options for the communication com,RS485 or M-bus.

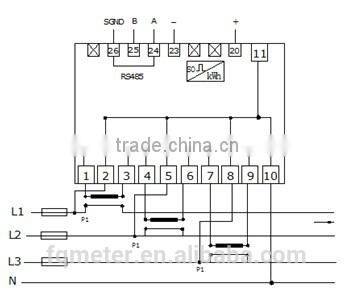

Wiring diagrams

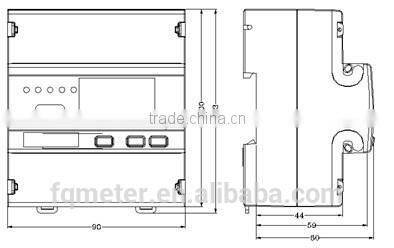

 Dimensions
