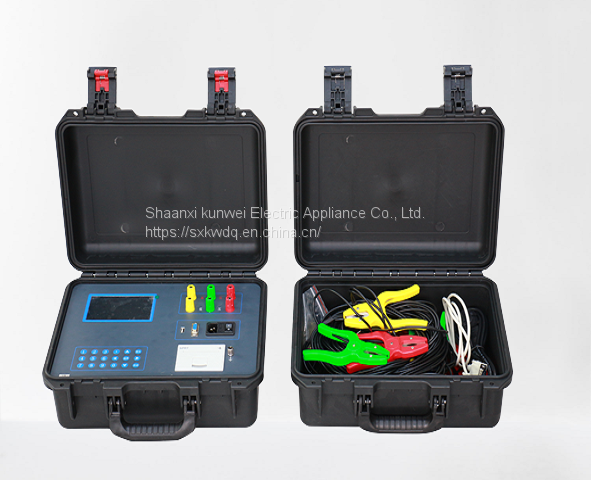

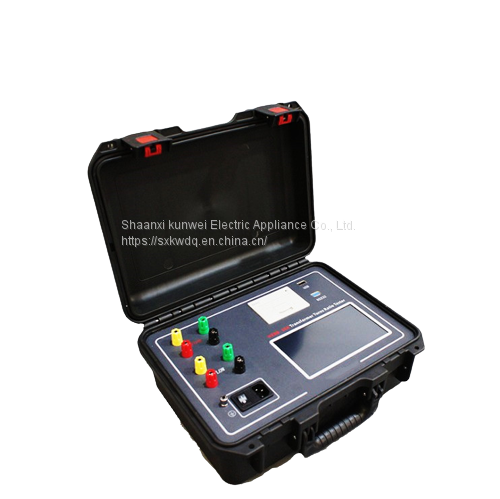

Customized Transformer Turns Ratio Tester Wide Range High Precision

 Generally refers to the automatic transformation ratio group comprehensive tester, alias is the transformer transformation ratio tester, transformation ratio tester, the main purpose is to measure transformation ratio, group polarity and error. It can automatically measure the transformation ratio, group polarity and error of various single-phase/three-phase transformers and voltage transformers. The ratio tester can check the correctness of the turns ratio of the transformer, the condition of the tap changer, whether the transformer is short-circuited between turns, and whether the transformer can operate in parallel.

      It adopts a large-screen display, menu operation, easy to use, and the ratio, group, and error can be measured at one time; after inputting the standard ratio, the relative error can be automatically calculated; the measurement results are automatically saved, and the results can be printed, and previous data can be viewed ;Measure the on-load transformer, enter the transformation ratio only once；

Features:

The test range is wide, and the height can reach 10000;

The test speed is fast, and the three-phase test is completed in 15 seconds;

Z-shaped connection transformer test; automatic group test function;

With reverse connection, transformer short circuit, inter-turn short circuit protection function;

scenes to be used:

Power generation, transmission, transformation, distribution, etc. of the power system;

Factories and mines: large-scale manufacturers and various mining companies;

Metallurgy and petrochemical: refining, chemical industry, water treatment, etc.;

Transportation: port/railway/highway/airport and municipal street lights, etc.;

Enterprises and institutions: the logistics department of large enterprises and institutions;

Construction industry: large construction and property companies;

Power installation and testing: various levels of power installation and commissioning companies;
